SECO Turning Insert 2pc: WNGA332S-L1-C CBN200 PCBN 02429858
MSRP: $240
- Relief Angle 0
- Corner Radius (Inch) 1/32
- Corner Radius (Decimal Inch) 0.0315
- Included Angle 80
- Manufacturer Grade CBN200
- Coating/Finish Bright/Uncoated
- Wiper Edge No
- Insert Hand Neutral
- Insert Thickness (Inch) 3/16
- Insert Thickness (Decimal Inch) 0.1874
- Series WNGA-Flat Top
- Inscribed Circle (Inch) 3/8
- Inscribed Circle (Decimal Inch) 0.3750
- Insert Material Polycrystalline Cubic Boron Nitride (PCBN)
- Insert Shape Trigon
- Number Of Cutting Edges 3
- Insert Shape Code W
- Hole Diameter (Decimal Inch) 0.1500
- Maximum Depth of Cut (Decimal Inch) 0.0400
- Insert Holding Method Pin; Clamp; Lever Lock
- Width (Inch) 3/8
- Clearance Code N
- Tolerance Code G
- Coating Process PCBN
- Length Range (Decimal Inch) 0.5000 – 0.6000
- Rake Negative
- Insert Length (Decimal Inch) 0.5196
- Primary Workpiece Material Cast Iron
- Primary Workpiece Material Code K
- Secondary Workpiece Material Hard Material; Super-alloys & Titanium
- Secondary Workpiece Material Code S; H
- Iso Code WNGA060408S-02020-L1-C
- Standards ISO; ANSI
- Manufacturers Catalog Number 02429858
- Material Grade K20; K10
- Single or Multi Tipped Multi Tipped
- Proprietary Coating Designation Uncoated
- Lead Angle 80
- Coating Classification Uncoated
- Chip Breaker Flat Top
- Rake Angle 0
- Cutting Edge Style Chamfered & Honed
- Industry Standard Number WNGA332S-00820-L1-C
- Width (Decimal Inch – 4 Decimals) 0.375
- Multi-Use Tool Yes
- Full Radius No
- Multi-Use Application Facing; Turning; Boring
- Tip Length (Decimal Inch) 0.0850
- UNSPSC Code 23242105
- Insert Style WNGA
- Insert Size Code 332
(Description).

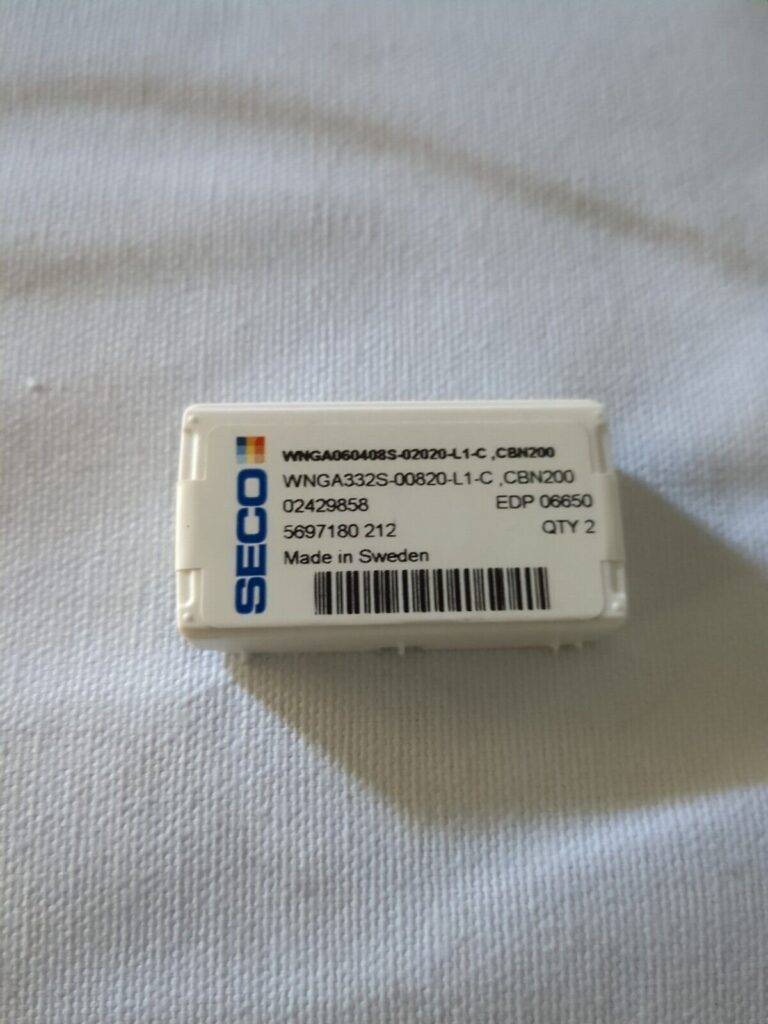

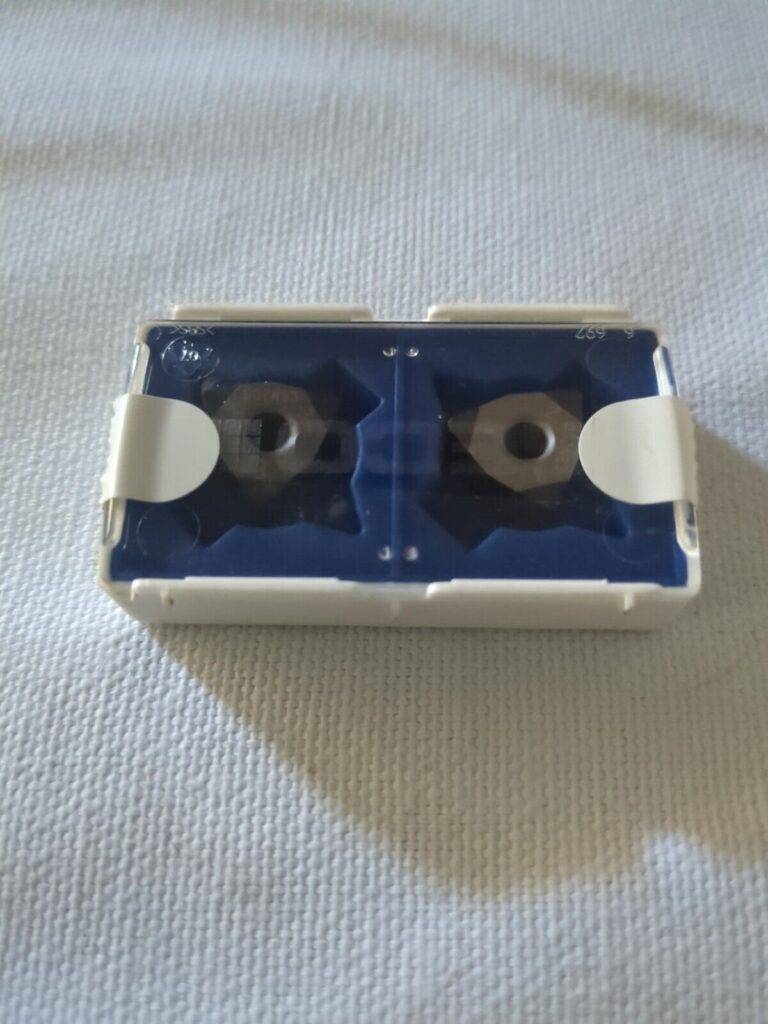

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date
Lister#
Loc
BRAND: SECO
INSERT MATERIAL: CBN
MPN: 02429858
INSERT TYPE: Turning Insert
