Description
SECO
Screw Machine Length Drill Bit: 17/64″ Dia, 140 ° Point 02691564
MSRP: $150
- Drill Bit Size (Inch) 17/64
- Tool Material Solid Carbide
- Cutting Direction Right Hand
- Coating/Finish Coated
- Number Of Flutes 2
- Spiral Type Regular
- Flute Type Spiral
- Drill Point Angle 140
- Coolant Through Yes
- Shank Type Straight-Cylindrical
- Shank Diameter (Decimal Inch) 0.3150
- Overall Length (Decimal Inch) 3.1100
- Series SD203A
- Web Thinning Web-Thinned
- Drill Length Type Screw Machine
- Maximum Drilling Depth (Decimal Inch) 0.9800
- Shank Length (Decimal Inch) 1.4170
- Drill Point Length (mm) 1.20
- Flute By Diameter Ratio 3xD
- Tool Performance High Performance
- Drill Bit Diameter Tolerance m7
- Standards DIN
- Flute Length (Decimal Inch) 1.3380
- Drill Bit Size Range (Decimal Inch) 0.2500 to 0.3000
- UNSPSC Code 23241635

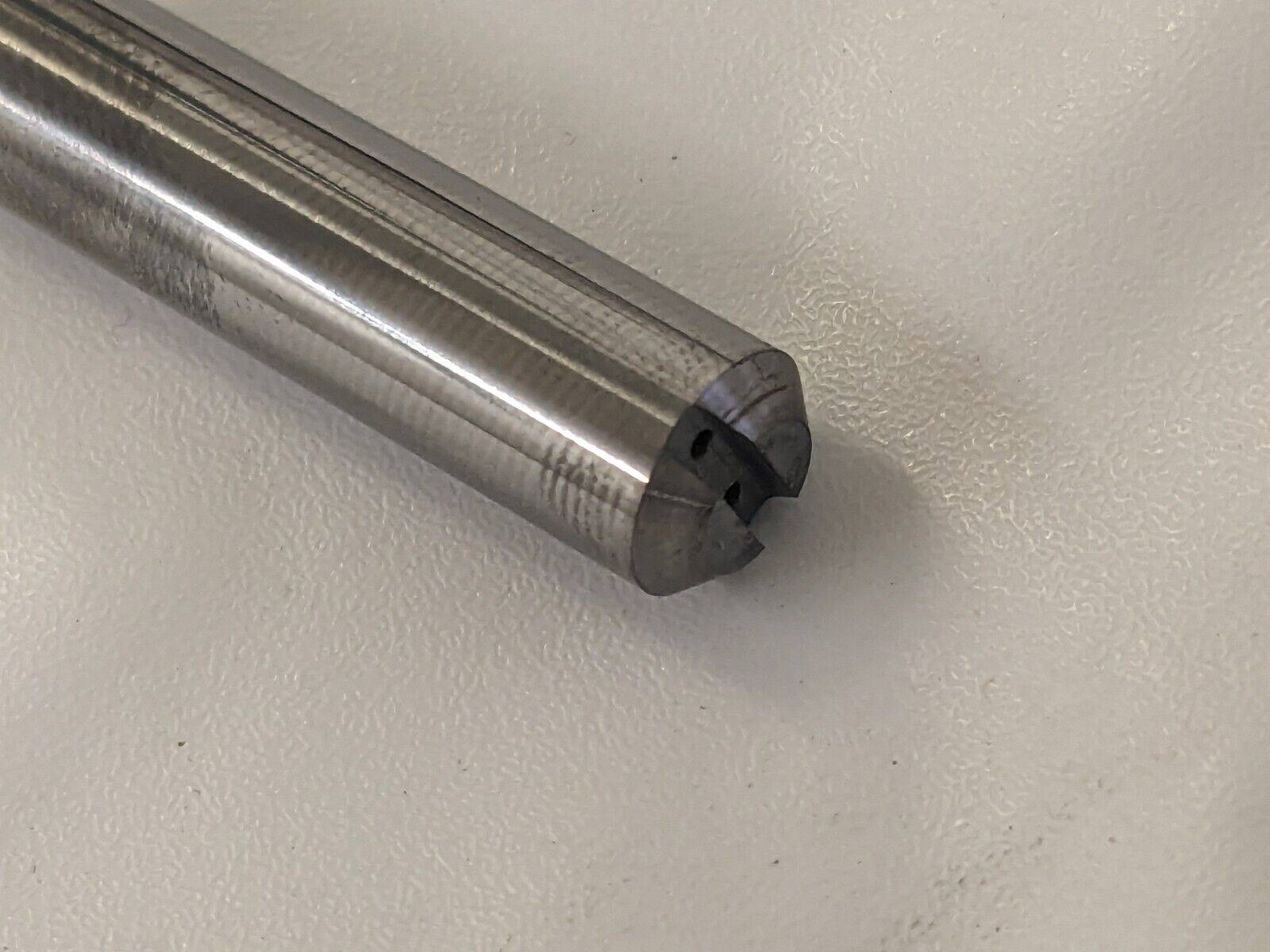

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
dec 14 23
HS3836
Chuck 44
BRAND: SECO
MSRP: $150
MPN: 02691564
