Seco Milling Insert: Snhq110212tr4-M07 F40m, Solid Carbide Qty 10 02526591

Seco
1 Lot of 10 Inserts

MSRP: $250.00

• Insert Style SNHQ
• Insert Size 11
• Insert Material Solid Carbide
• Insert Shape Square
• Manufacturer Grade F40M
• Corner Radius (Decimal Inch) 0.0472
• Number Of Cutting Edges 4
• Thickness (Decimal Inch – 4 Decimals) 0.0906
• Coating/Finish TiN; TiAlN
• Relief Angle 0.00
• Maximum Depth of Cut (Decimal Inch) 0.0827
• Insert Size Code 110212
• Material Grade Fine Grain
• Inscribed Circle (Decimal Inch) 0.4331
• Thickness Range (Decimal Inch) 0.0000 to 0.1000
• Corner Radius (Inch) 3/64
• Inscribed Circle Range (Decimal Inch) 0.4000 to 0.5000
• Length Range (Decimal Inch) 0.0000 to 0.3200
• Insert Hand Right Hand
• Series SNHQ-11
• Coating Process PVD
• Cutting Edge Effective Length (Decimal Inch) 0.0906
• Rake Negative
• Primary Workpiece Material Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; K
• Secondary Workpiece Material Non-Ferrous Metal; Cast Iron
• Secondary Workpiece Material Code K; N
• Ansi Code SNHQ110212TR4-M07
• Iso Code SNHQ110212TR4-M07
• Standards ISO
• Rake Angle 20
• Cutting Edge Style T-Land
• Manufacturers Catalog Number SNHQ110212TR4-M07
• Cutter Series Compatibility 335.19-11
• Chip Breaker M07
• Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• UNSPSC Code 23291601
• Shape Square
• Insert Holding Method Screw
• Coating Classification PVD
• Single or Double Sided Insert Single
• Included Angle Degree 90
• Width (Decimal Inch – 4 Decimals) 0.4331
• Width (Mm – 2 Decimals) 2.10
• Multi-Use Tool Yes
• Length (Decimal Inch – 4 Decimals) 0.0906
• System Of Measurement Decimal Inch

These items are new and in the original sealed package. SOLD AS IS.

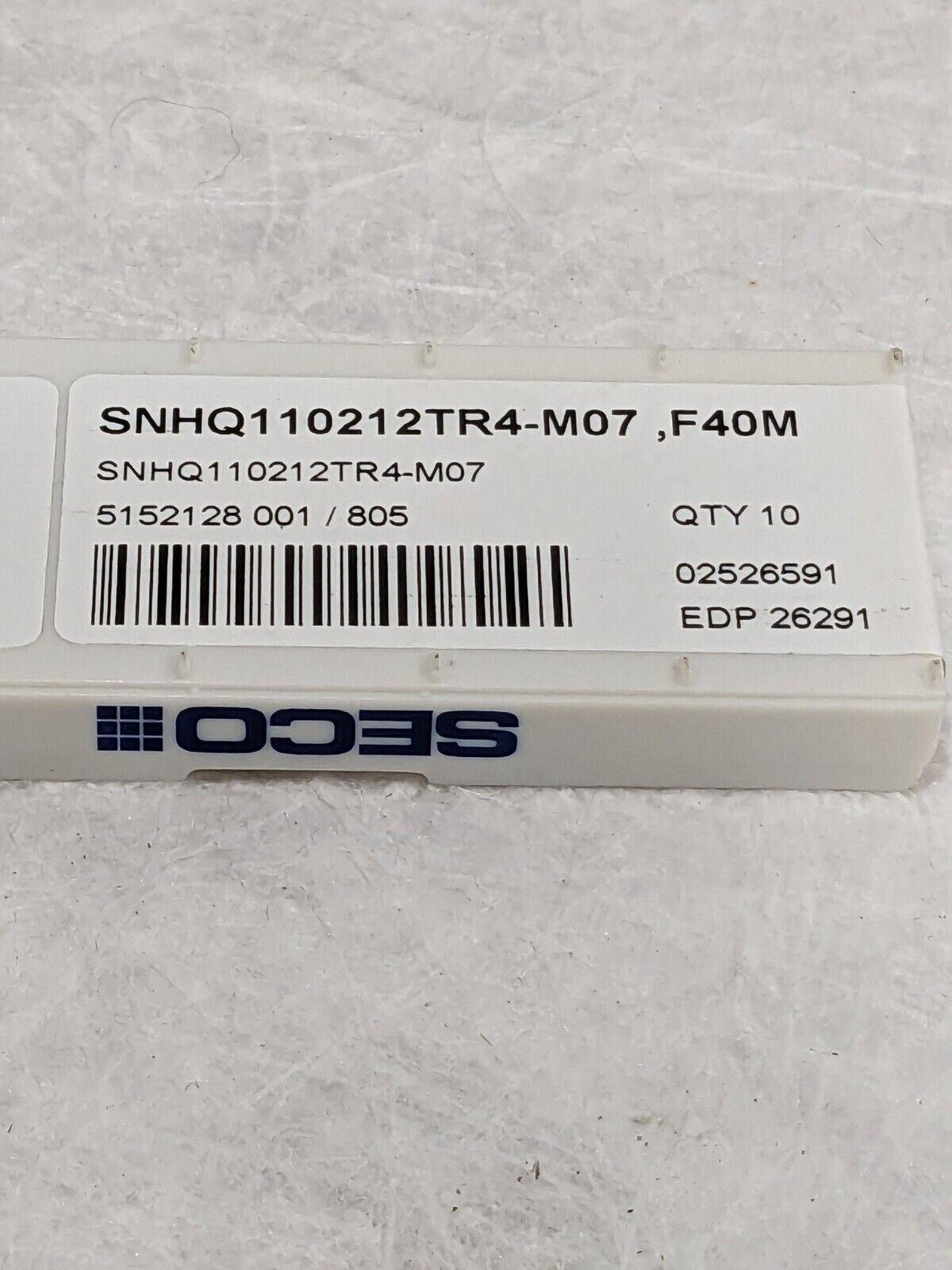

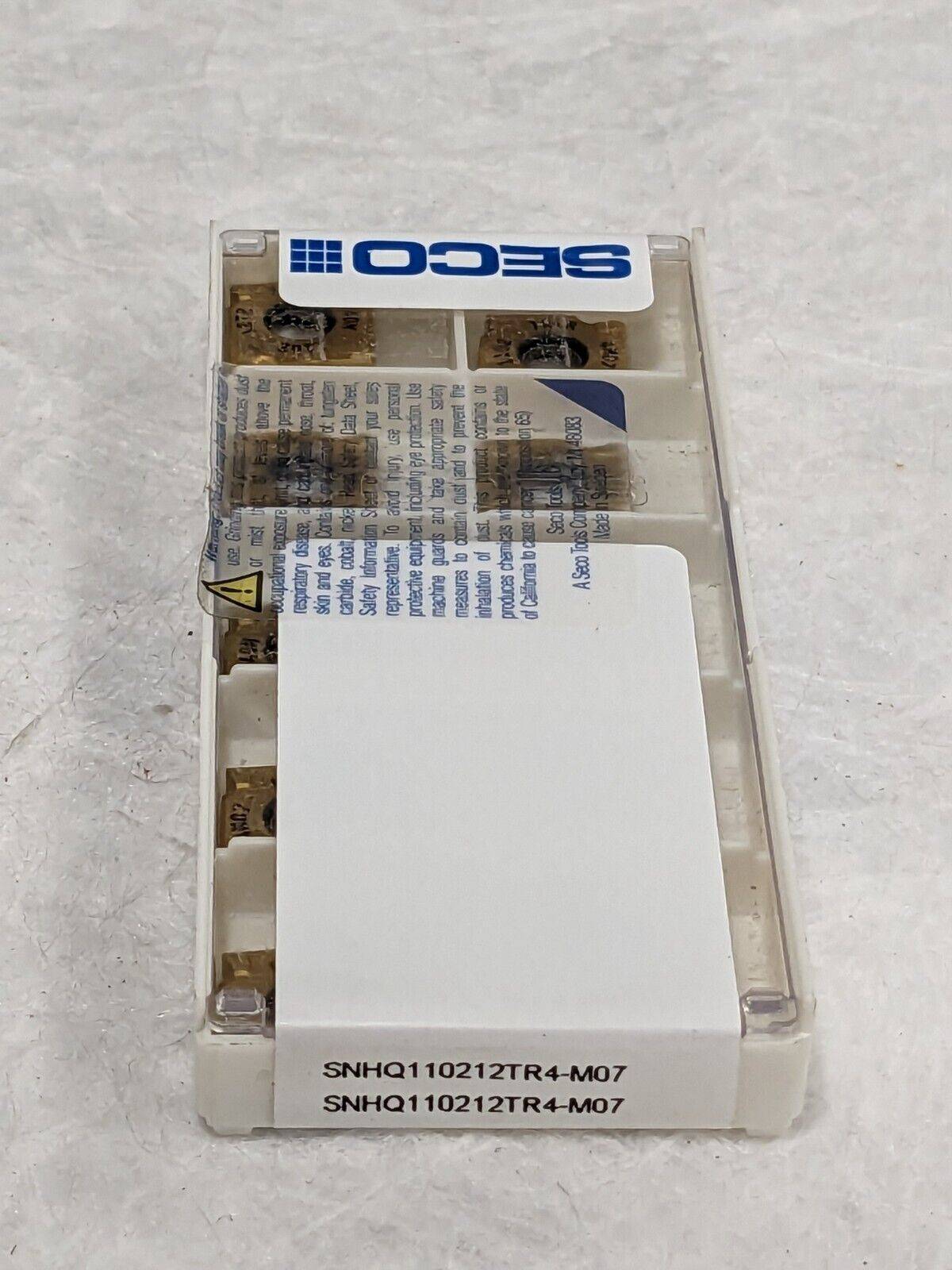

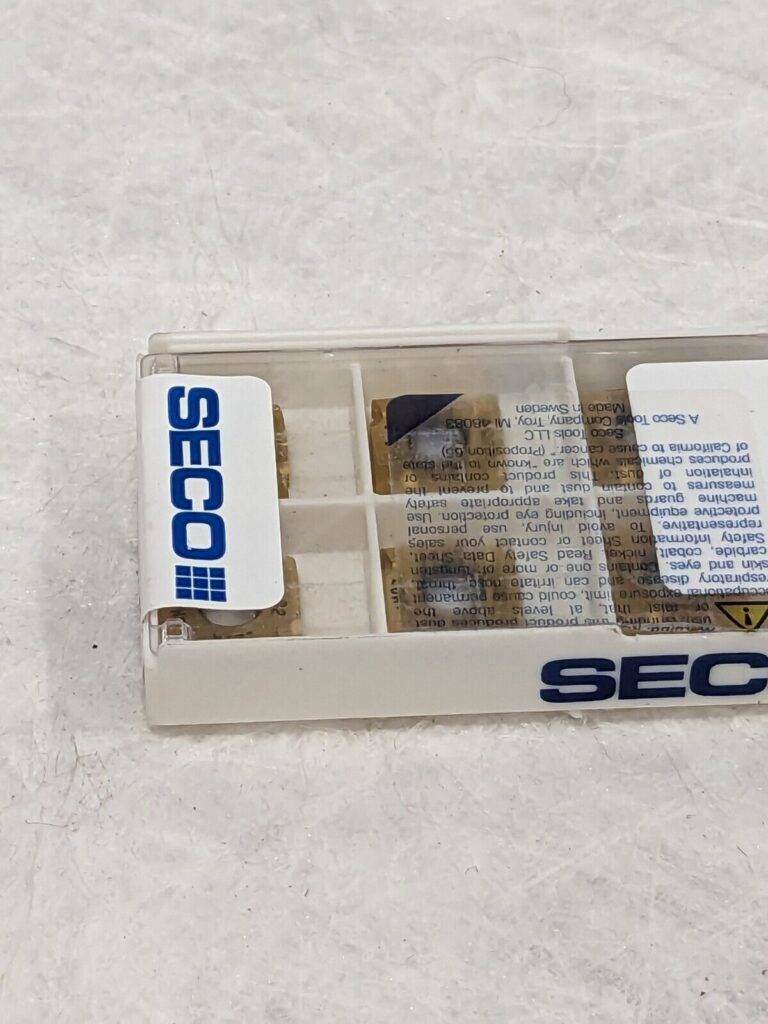

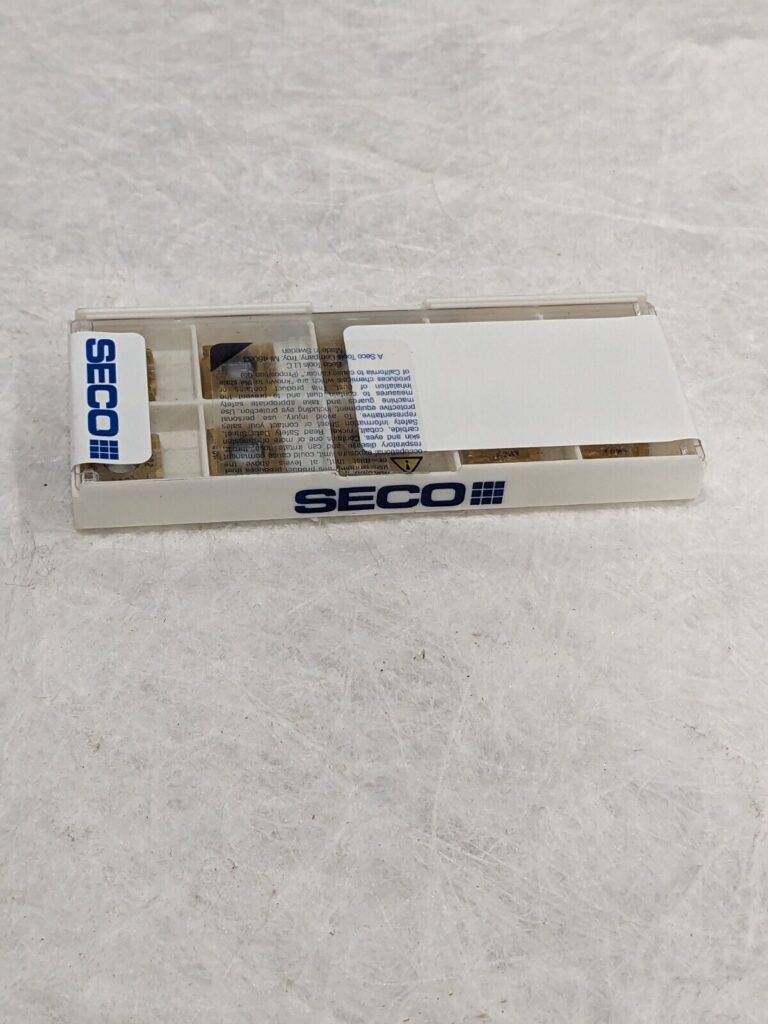

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
