Description
SECO Milling Insert: SEKN1203AFTN-D16 MP1501, Solid Carbide 03273562
MSRP: $230
- Insert Style SEKN
- Insert Size 12
- Insert Material Solid Carbide
- Insert Shape Square
- Inscribed Circle (Inch) 1/2
- Manufacturer Grade MP1501
- Corner Radius (Decimal Inch) 0.0787
- Number Of Cutting Edges 4
- Thickness (Decimal Inch – 4 Decimals) 0.1252
- Coating/Finish TiCN; Al2O3
- Relief Angle 20.00
- Maximum Depth of Cut (Decimal Inch) 0.3465
- Insert Size Code 1203
- Material Grade Fine Grain
- Width (Inch) 1/2
- Length (Inch) 1/2
- Thickness (Inch) 1/8
- Inscribed Circle (Decimal Inch) 0.5000
- Thickness Range (Decimal Inch) 0.1250 to 0.1500
- Inscribed Circle Range (Decimal Inch) 0.5000 to 0.5100
- Length Range (Decimal Inch) 0.5000 to 0.6000
- Insert Hand Neutral
- Series SEKN-12
- Coating Process CVD
- Cutting Edge Effective Length (Decimal Inch) 0.5000
- Rake Neutral
- Primary Workpiece Material Steel
- Primary Workpiece Material Code P
- Secondary Workpiece Material Hard Material; Cast Iron
- Secondary Workpiece Material Code H; K
- Ansi Code SEKN1203AFTN-D16
- Iso Code SEKN1203AFTN-D16
- Standards ISO
- Rake Angle 0
- Cutting Edge Style T-Land
- Manufacturers Catalog Number SEKN1203AFTN-D16
- Cutter Series Compatibility R220.13-12
- Chip Breaker D16
- Material Application Hard Material; Cast Iron; Steel
- UNSPSC Code 23291601
- Shape Square
- Insert Holding Method Wedge Clamp
- Coating Classification Duratomic
- Single or Double Sided Insert Single
- Included Angle Degree 90
- Width (Decimal Inch – 4 Decimals) 0.5000
- Width (mm – 2 Decimals) 12.70
- Multi-Use Tool Yes
- Length (Decimal Inch – 4 Decimals) 0.5000
- System Of Measurement Decimal Inch
(Description).

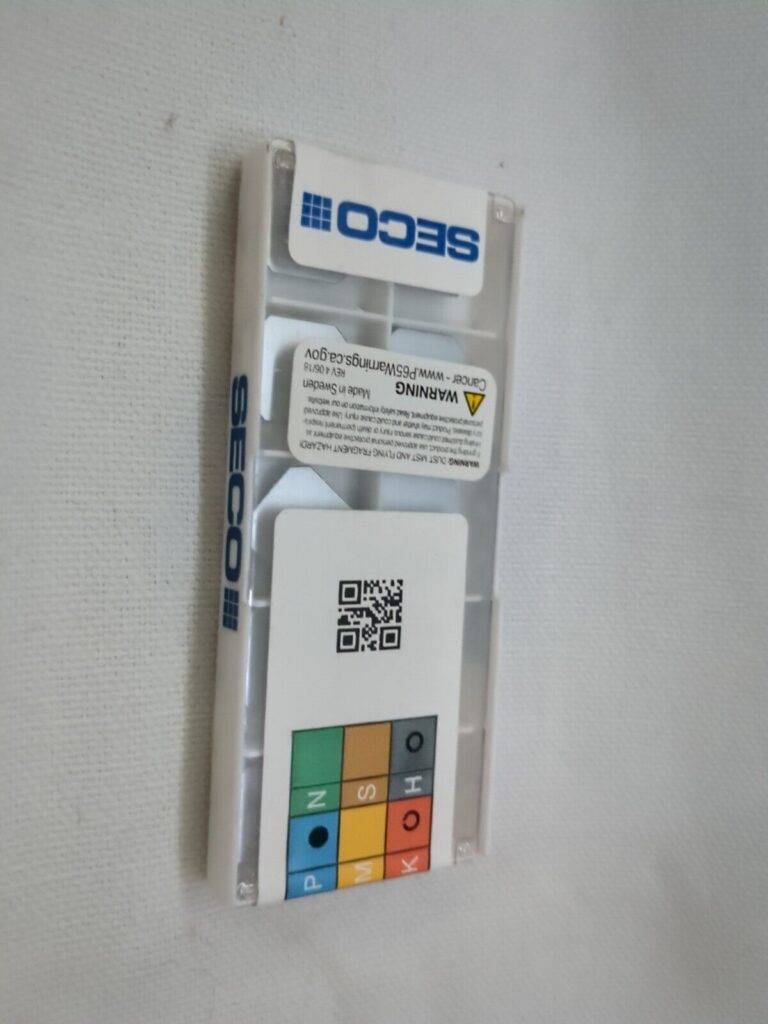

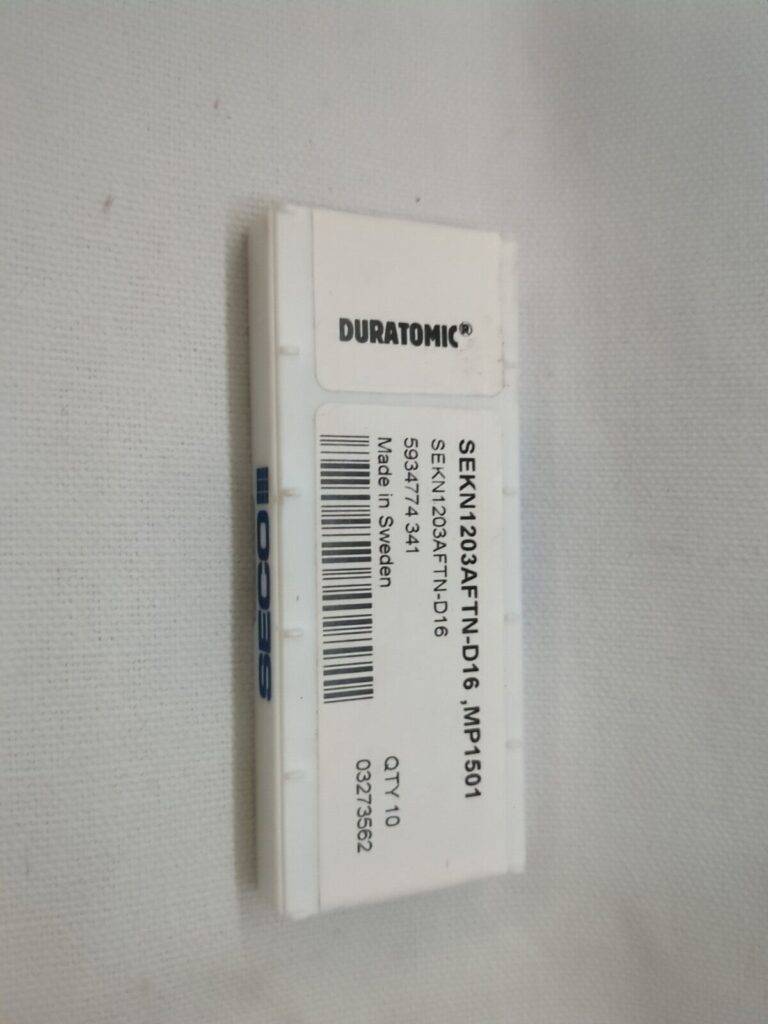

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date
Lister#
Loc
BRAND: SECO
INSERT MATERIAL: Carbide
MPN: 03273562
INSERT TYPE: Milling Insert
