SECO
Milling Insert: R335.15-13160FG-E08 F40M, Solid Carbide 02456292
MSRP: $250
- Insert Style R335.15
- Insert Size 13
- Insert Material Solid Carbide
- Insert Shape Parallelogram
- Manufacturer Grade F40M
- Corner Radius (Decimal Inch) 0.0000
- Number Of Cutting Edges 2
- Thickness (Decimal Inch – 4 Decimals) 0.0642
- Coating/Finish TiN; TiAlN
- Relief Angle 15.00
- Maximum Depth of Cut (Decimal Inch) 0.1024
- Maximum Depth of Cut (mm) 2.60
- Insert Size Code 13160
- Material Grade Fine Grain
- Length (Inch) 17/32
- Inscribed Circle (Decimal Inch) 0.3543
- Thickness Range (Decimal Inch) 0.0000 to 0.1000
- Inscribed Circle Range (Decimal Inch) 0.3500 to 0.4000
- Length Range (Decimal Inch) 0.5000 to 0.6000
- Insert Hand Right Hand
- Series R335.15-13
- Coating Process PVD
- Rake Positive
- Primary Workpiece Material Cast Iron; Superalloys & Titanium; Steel
- Primary Workpiece Material Code P; S; K
- Secondary Workpiece Material Non-Ferrous Metal; Cast Iron
- Secondary Workpiece Material Code K; N
- Ansi Code R335.15-13160FG-E08
- Iso Code R335.15-13160FG-E08
- Standards ISO
- Rake Angle 15
- Cutting Edge Style Sharp
- Manufacturers Catalog Number R335.15-13160FG-E08
- Cutter Series Compatibility R335.15-13
- Chip Breaker E08
- UNSPSC Code 23291601
- Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
- Shape Round
- Insert Holding Method Screw
- Coating Classification PVD
- Single or Double Sided Insert Single
- Included Angle Degree 90
- Width (Decimal Inch – 4 Decimals) 0.3543
- Width (Mm – 2 Decimals) 9.00
- Multi-Use Tool Yes
- Length (Decimal Inch – 4 Decimals) 0.5315

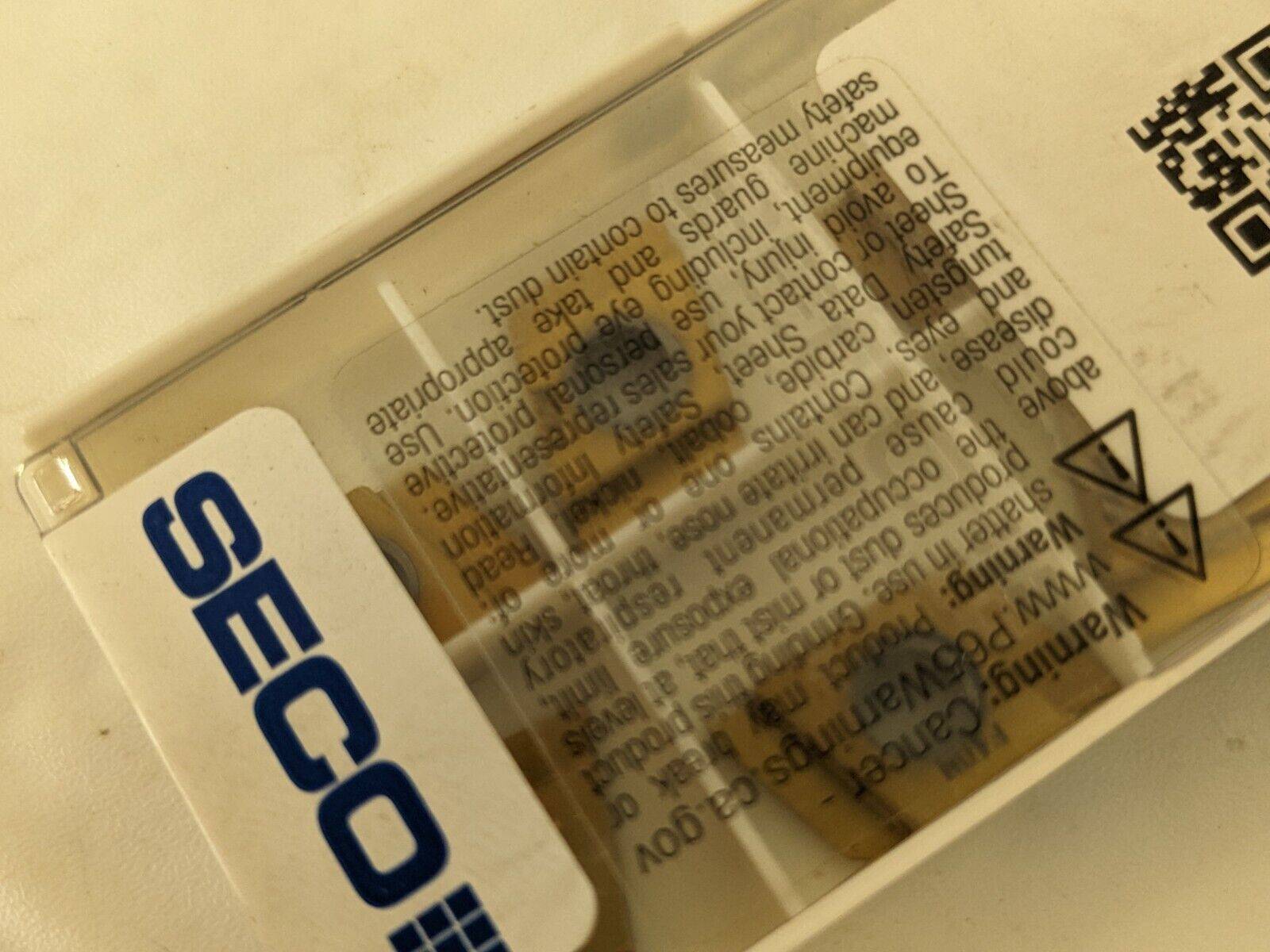

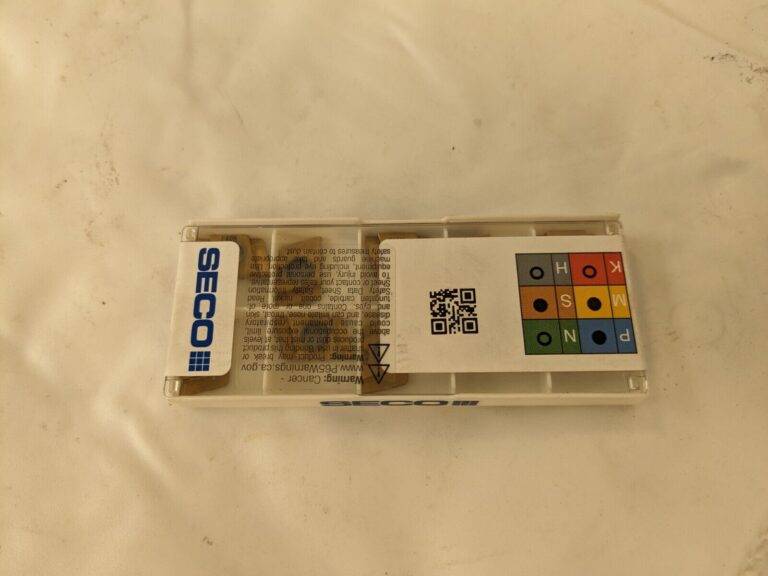

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
dec 07 23
HS3779xx8
BRAND: SECO
INSERT MATERIAL: Carbide
MSRP: $250
MPN: 02456292
INSERT TYPE: Milling Insert
