Description
BRAND Seco
Item
MSRP: $220.00
| Insert Style |
218.19 |
| Insert Size |
100 |
| Insert Material |
Solid Carbide |
| Insert Shape |
Trigon |
| Manufacturer Grade |
MS2500 |
| Corner Radius (Decimal Inch) |
0.0315 |
| Number Of Cutting Edges |
3 |
| Thickness (Decimal Inch – 4 Decimals) |
0.1094 |
| Coating/Finish |
TiCN; Al2O3 |
| Relief Angle |
12.00 |
| Insert Size Code |
100T |
| Material Grade |
Medium Grain |
| Thickness (Inch) |
7/64 |
| Inscribed Circle (Decimal Inch) |
0.2780 |
| Thickness Range (Decimal Inch) |
0.1000 to 0.1250 |
| Corner Radius (Inch) |
1/32 |
| Inscribed Circle Range (Decimal Inch) |
0.2500 to 0.3000 |
| Length Range (Decimal Inch) |
0.0000 to 0.3200 |
| Insert Hand |
Neutral |
| Maximum Depth of Cut (Decimal Inch) |
0.0290 |
| Series |
218.19-100 |
| Coating Process |
CVD |
| Hole Diameter (Decimal Inch) |
0.1181 |
| Rake |
Positive |
| Primary Workpiece Material |
Superalloys & Titanium |
| Primary Workpiece Material Code |
S |
| Secondary Workpiece Material |
Stainless Steel; Steel |
| Secondary Workpiece Material Code |
P; M |
| Ansi Code |
218.19-100T-M06 |
| Iso Code |
218.19-100T-M06 |
| Standards |
ISO |
| Convex Radius (Decimal Inch) |
0.3937 |
| Rake Angle |
7 |
| Cutting Edge Style |
T-Land |
| Manufacturers Catalog Number |
218.19-100T-M06 |
| Cutter Series Compatibility |
R218.19-20; R217.21-R100 |
| Chip Breaker |
M06 |
| UNSPSC Code |
23291601 |
| Material Application |
Stainless Steel; Superalloys & Titanium; Steel |
| Shape |
Triangle |
| Insert Holding Method |
Screw |
| Coating Classification |
CVD |
| Single or Double Sided Insert |
Single |
| Included Angle Degree |
60 |
| Width (Decimal Inch – 4 Decimals) |
0.2780 |
| Multi-Use Tool |
Yes |
| Length (Decimal Inch – 4 Decimals) |
0.2780 |
| Country of Origin |
Sweden |
(Description).

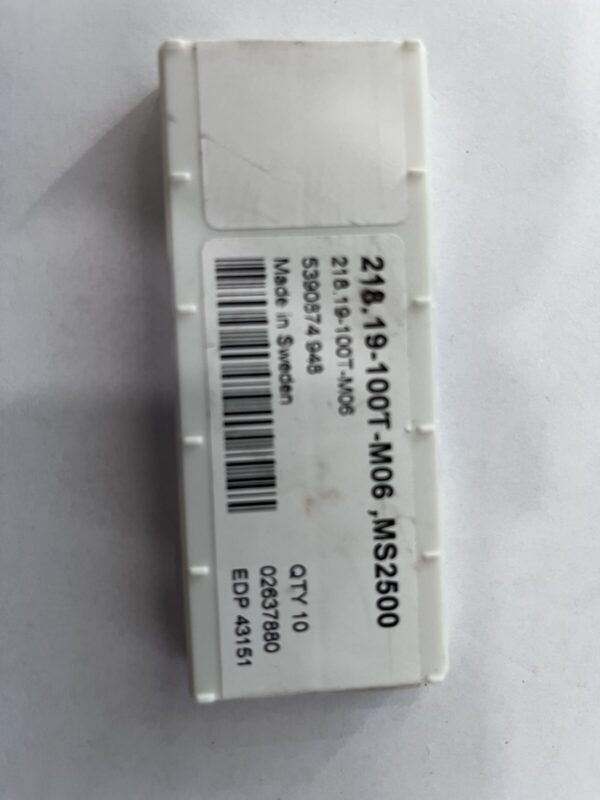

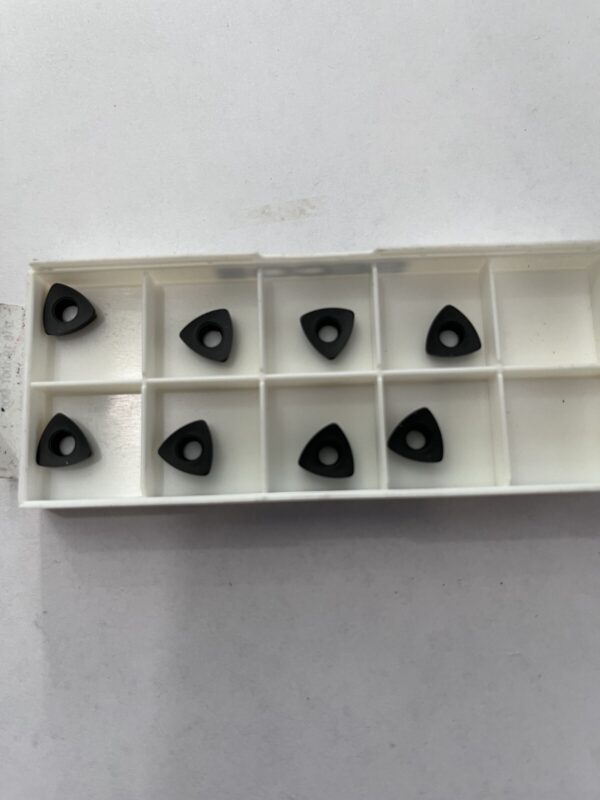

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
BRAND: SECO
INSERT MATERIAL: Carbide
MPN: does not apply
INSERT TYPE: Milling Insert
