Seco Er16 Collet Chuck Dual Contact Taper Shank Hska63-Er16-160 10229587

Seco
ER16 Collet Chuck

MSRP: $370

• Collet System ER
• Collet Series ER16
• Shank Type Dual Contact Taper
• Taper Size HSK63A
• Projection (Decimal Inch) 6.2992
• Through Coolant Yes
• Shank Diameter (Decimal Inch) 2.4803
• Minimum Collet Capacity (Decimal Inch) 0.0197
• Maximum Collet Capacity (Decimal Inch) 0.3937
• Overall Length (Decimal Inch) 7.5591
• Actuator Type Wrench
• Dual Contact Yes
• Nose Diameter (Decimal Inch – 4 Decimals) 1.1024
• Shank Length (Decimal Inch) 1.2598
• Material Steel
• Coolant Type Through-Spindle
• Collet Nut Diameter (Decimal Inch) 1.1024
• Nose Type Plain
• Type Collet Chuck
• UNSPSC Code 27112808
• Manufacturer’s Part Number HSKA63-ER16-160
• Head Length (Decimal Inch) 5.2756
• Balanced To Rpm 25000
• Quick Change No
• For Use With ER Collets

*In Sealed Package*

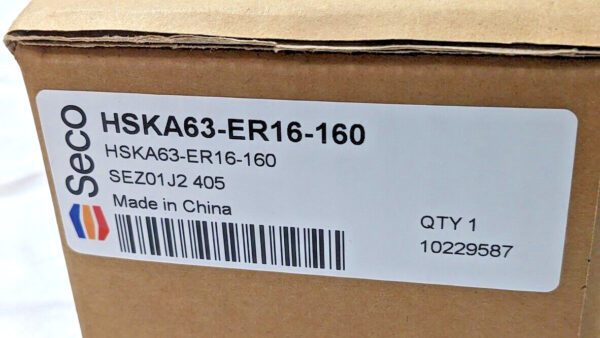

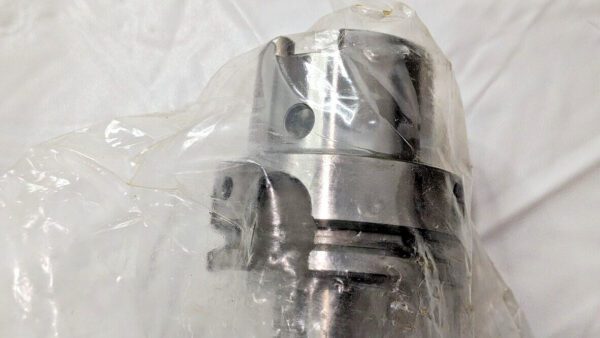

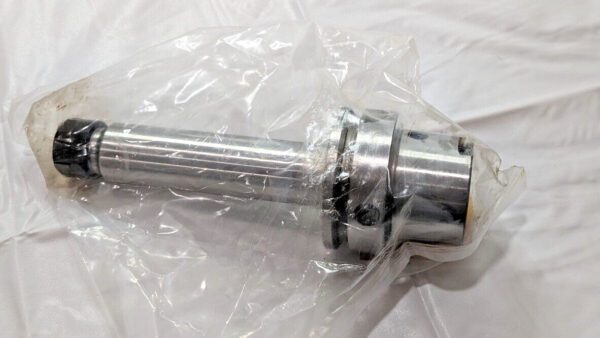

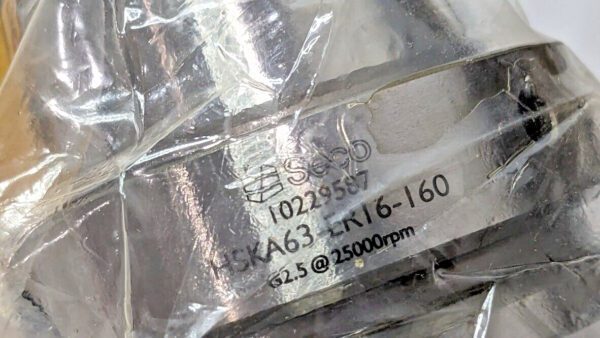

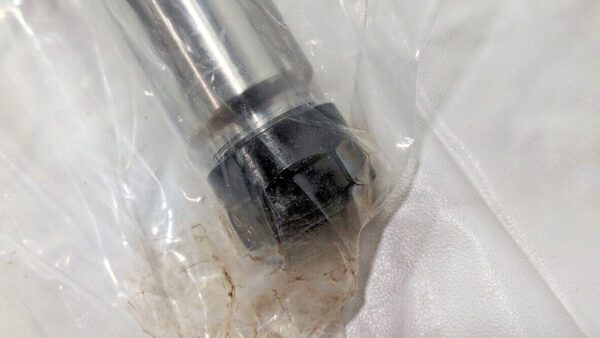

Please review photos, comes as shown.
