Description
BRAND Seco
Item
MSRP: $310.00
| Mill Diameter (Inch) |
5/8 |
| Mill Diameter (Decimal Inch) |
0.6250 |
| Number Of Flutes |
4 |
| Length of Cut (Inch) |
1-1/4 |
| Single Or Double End |
Single |
| End Mill Material |
Solid Carbide |
| Chipbreaker |
No |
| Coating/Finish |
SIRON-A |
| Overall Length (Inch) |
3-3/4 |
| Centercutting |
Yes |
| Flute Direction |
Right Hand |
| Corner Radius (Decimal Inch) |
0.0299 |
| Variable Index |
No |
| Variable Helix |
No |
| Cutting Direction |
Right Hand |
| Coolant Through |
No |
| Overall Length (Decimal Inch) |
3.7500 |
| End Type |
Corner Radius |
| Length Of Cut (Decimal Inch – 4 Decimals) |
1.2500 |
| Length Type |
Standard |
| Flute Type |
Spiral |
| Extended Reach |
No |
| Shank Type |
Straight-Cylindrical |
| Material Removal Type |
Roughing |
| Shank Diameter (Decimal Inch) |
0.6252 |
| Shank Diameter (Inch) |
5/8 |
| Corner Radius Tolerance |
±0.00080 in |
| Mill Diameter Tolerance |
-0.03/-0.05 mm |
| Shank Diameter Tolerance |
h5 |
| Primary Workpiece Material |
Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; High Temperature Alloy; Steel |
| UNSPSC Code |
27112803 |
| Primary Workpiece Material Code |
P; S; H; K; M; N |
| Material Grade |
Micrograin |
| Series |
JS554 |
| TIR Maximum (Decimal Inch) |
0.0004 |
| Material Application |
Hard Material; Non-Ferrous Metal; High-Temperature Alloy; Stainless Steel; Cast Iron; Steel |
| Helix Style |
High |
| Manufacturers Catalog Number |
5540625R030Z4.0SIRON-A |
| Country of Origin |
Netherlands |
(Description).

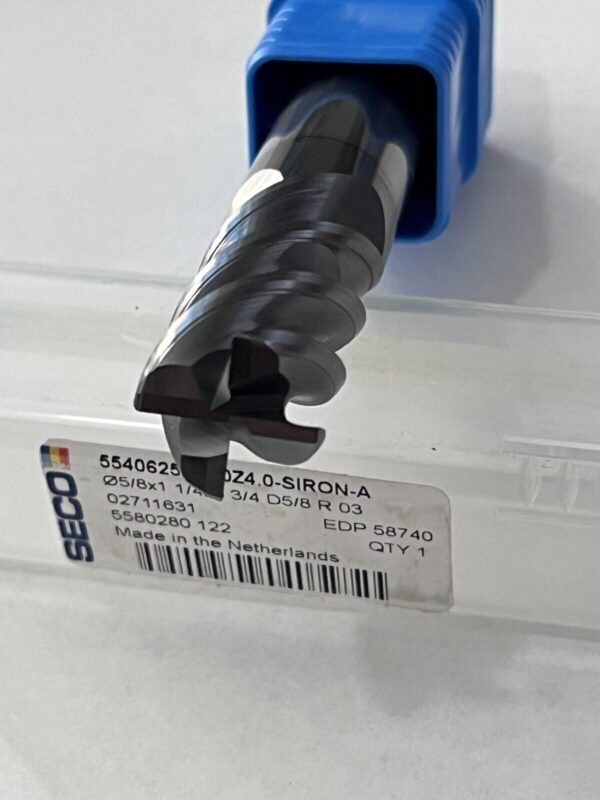

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
BRAND: seco
END TYPE: Corner Radius
NUMBER OF FLUTES: 4
MATERIAL: Solid Carbide
LENGTH OF CUT: 1-1/4 in
MILL DIAMETER: 5/8 in
