Seco Collet Chuck: 2 To 20 Mm Capacity, Er Collet, Taper Shank 02827239

SECO

 Collet Chuck: 2 to 20 mm Capacity, ER Collet, Taper Shank 02827239
MSRP: $550

• Collet System ER
• Collet Series ER32
• Shank Type Taper
• Taper Size DIN69871-50
• Projection (Decimal Inch) 3.1500
• Projection (mm) 80.00
• Through Coolant Yes
• Minimum Collet Capacity (mm) 2.00
• Minimum Collet Capacity (Decimal Inch) 0.0787
• Maximum Collet Capacity (mm) 20.00
• Maximum Collet Capacity (Decimal Inch) 0.7874
• Overall Length (Decimal Inch) 7.1560
• Nose Diameter (Decimal Inch – 4 Decimals) 1.9690
• Coolant Type Through-Spindle & DIN Flange
• Collet Nut Diameter (mm) 50.00
• Collet Nut Diameter (Decimal Inch) 1.9685
• Product Service Code 5136
• Balanced To Rpm 30000

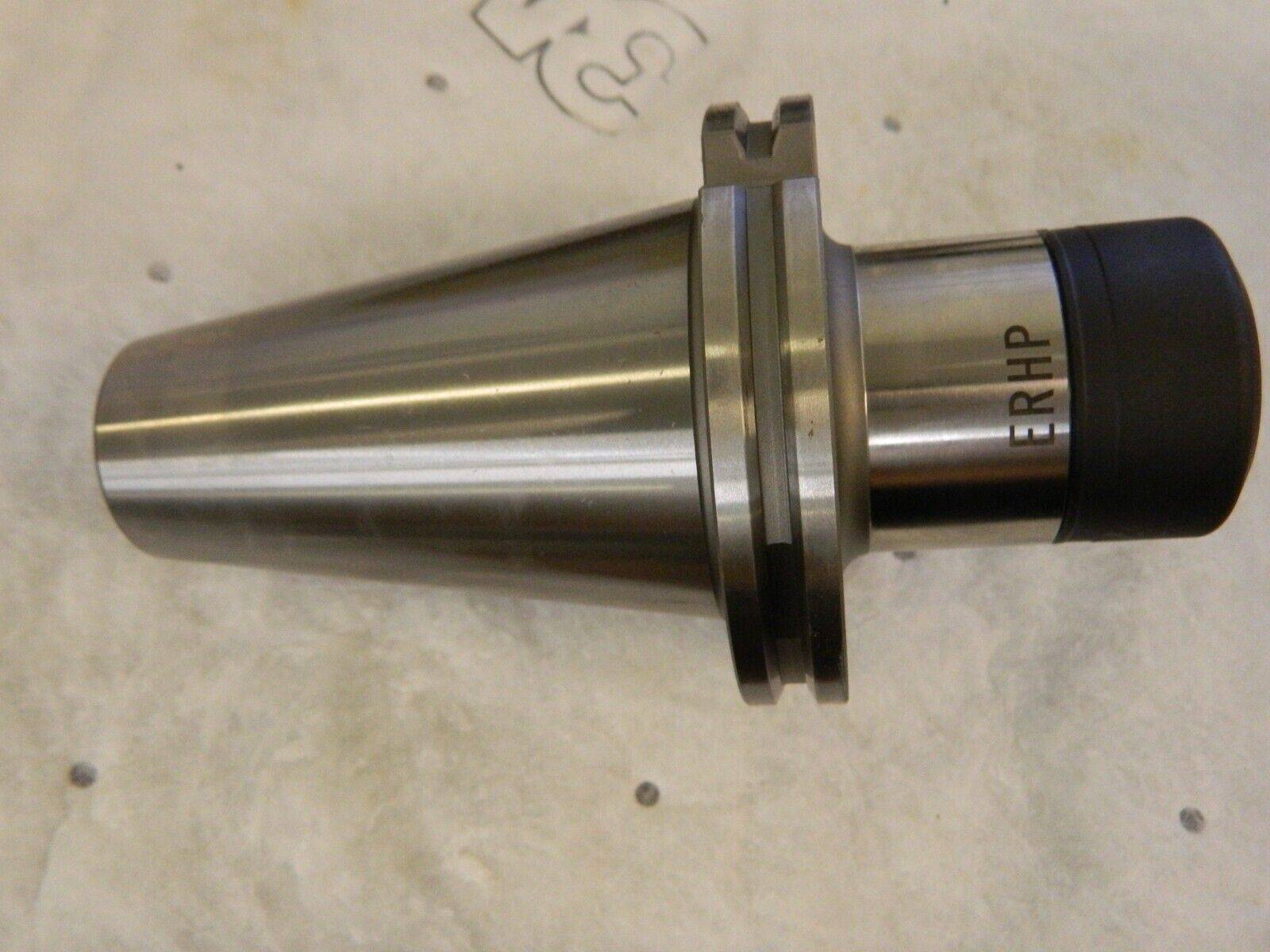

Please review photos, comes as shown.
