Seco
MSRP: $140.00
Model: 36302
Description
Insert Style: CNMG
Insert Size: 434
Material: Carbide
Inscribed Circle (mm) : 12.70
Inscribed Circle (Decimal Inch) : 0.5000
Inscribed Circle (Inch) : 1/2
Thickness (Inch) : 3/16
Thickness (Decimal Inch) : 0.1875
Corner Radius (Inch) : 1/16
Corner Radius (Decimal Inch) : 0.0625
Manufacturer’s Grade: TP1500
Coating: TiCN/Al2O3
Material Grade: C6 –
Chip Breaker: M5
Hole Diameter (Decimal Inch): 0.2030
Relief Angle: 0
Coating Process: Duratomic
Primary Workpiece Material: P
Secondary Workpiece Material: K
Included Angle: 80
Insert Holding Method: Pin & Clamp
Shape: Diamond

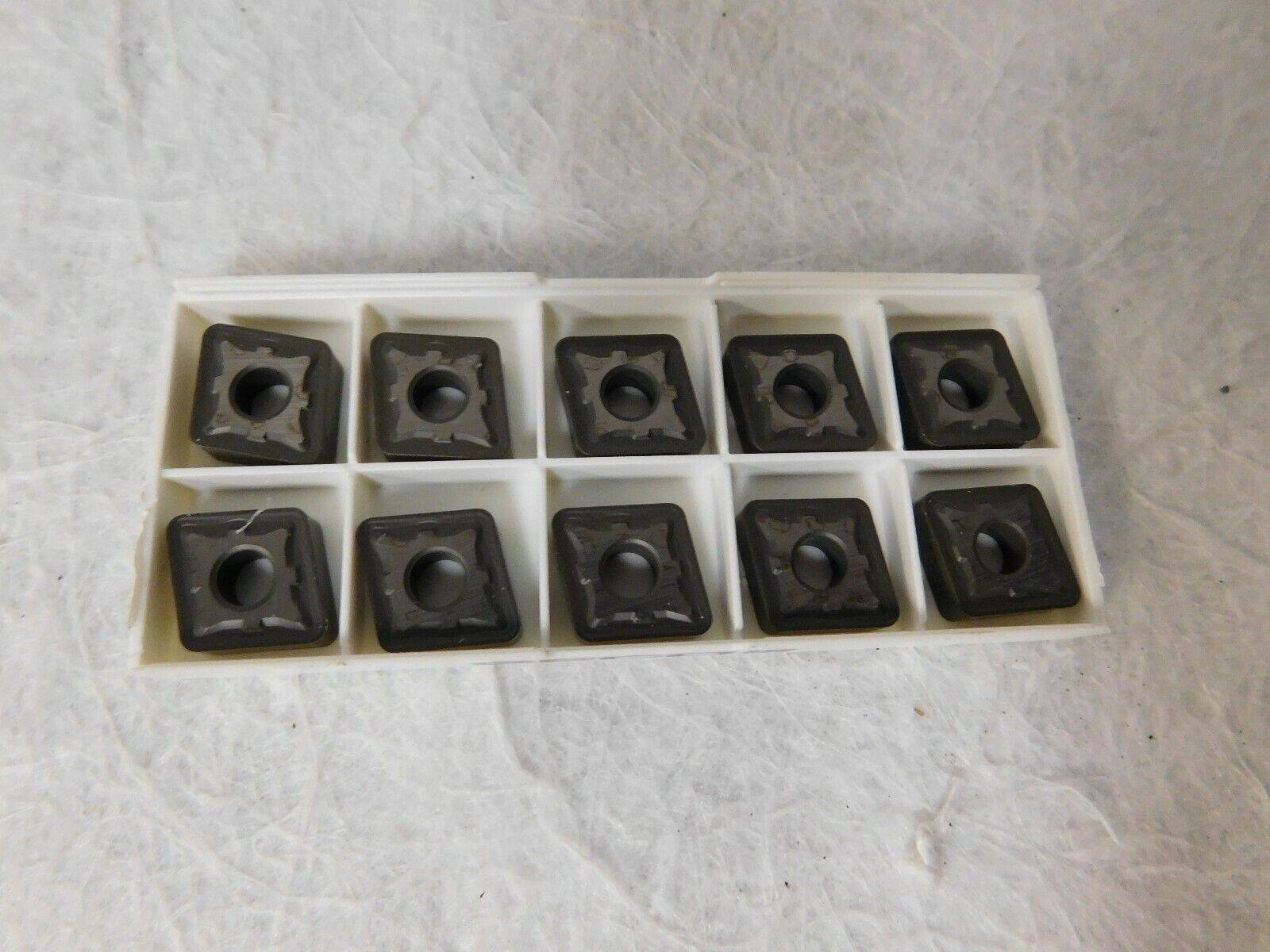

This listing is for One Pack of 10 inserts that is in the picture as well as described. Please ask any questions prior to buying!
