Description
Seco
1 Pack of 10 Carbide Milling Inserts
MSRP: $450
- Insert Style LOEX
- Insert Size 12
- Insert Material Carbide
- Insert Shape Rectangle
- Manufacturer Grade MP3501
- Corner Radius (Decimal Inch) 0.0472
- Number Of Cutting Edges 4
- Thickness (Decimal Inch – 4 Decimals) 0.4012
- Coating/Finish TiCN; Chrome; Al2O3
- Relief Angle 0.000
- Insert Size Code 120712
- Material Grade K40; K20; K30; P30; P40; P20
- Inscribed Circle (Decimal Inch) 0.2953
- Thickness Range (Decimal Inch) 0.3500 to 0.5000
- Corner Radius (Inch) 3/64
- Inscribed Circle Range (Decimal Inch) 0.2500 to 0.3000
- Length Range (Decimal Inch) 0.5000 to 0.6000
- Insert Hand Right Hand
- Maximum Depth of Cut (Decimal Inch) 0.4724
- Series LOEX
- Coating Process Duratomic
- Cutting Edge Effective Length (Decimal Inch) 0.4724
- Rake Negative
- Primary Workpiece Material Code P
- Secondary Workpiece Material Stainless Steel; Cast Iron; Superalloys & Titanium
- Secondary Workpiece Material Code S; K; M
- Ansi Code LOEX120712TR-T4-M12
- Iso Code LOEX120712TR-T4-M12
- Standards ISO; ANSI
- Rake Angle 35.000
- Cutting Edge Style T-Land
- Manufacturers Catalog Number 10198843
- Cutter Series Compatibility R217/220.94-12
- Chip Breaker M12
- Cutting Direction Right Hand
- UNSPSC Code 23291601
- Material Application Steel
- Insert Holding Method Screw
- Coating Classification Duratomic
- Single or Double Sided Insert Double
- Included Angle Degree 90
- Width (Decimal Inch – 4 Decimals) 0.2953
- Multi-Use Tool Yes
- Length (Decimal Inch – 4 Decimals) 0.5591

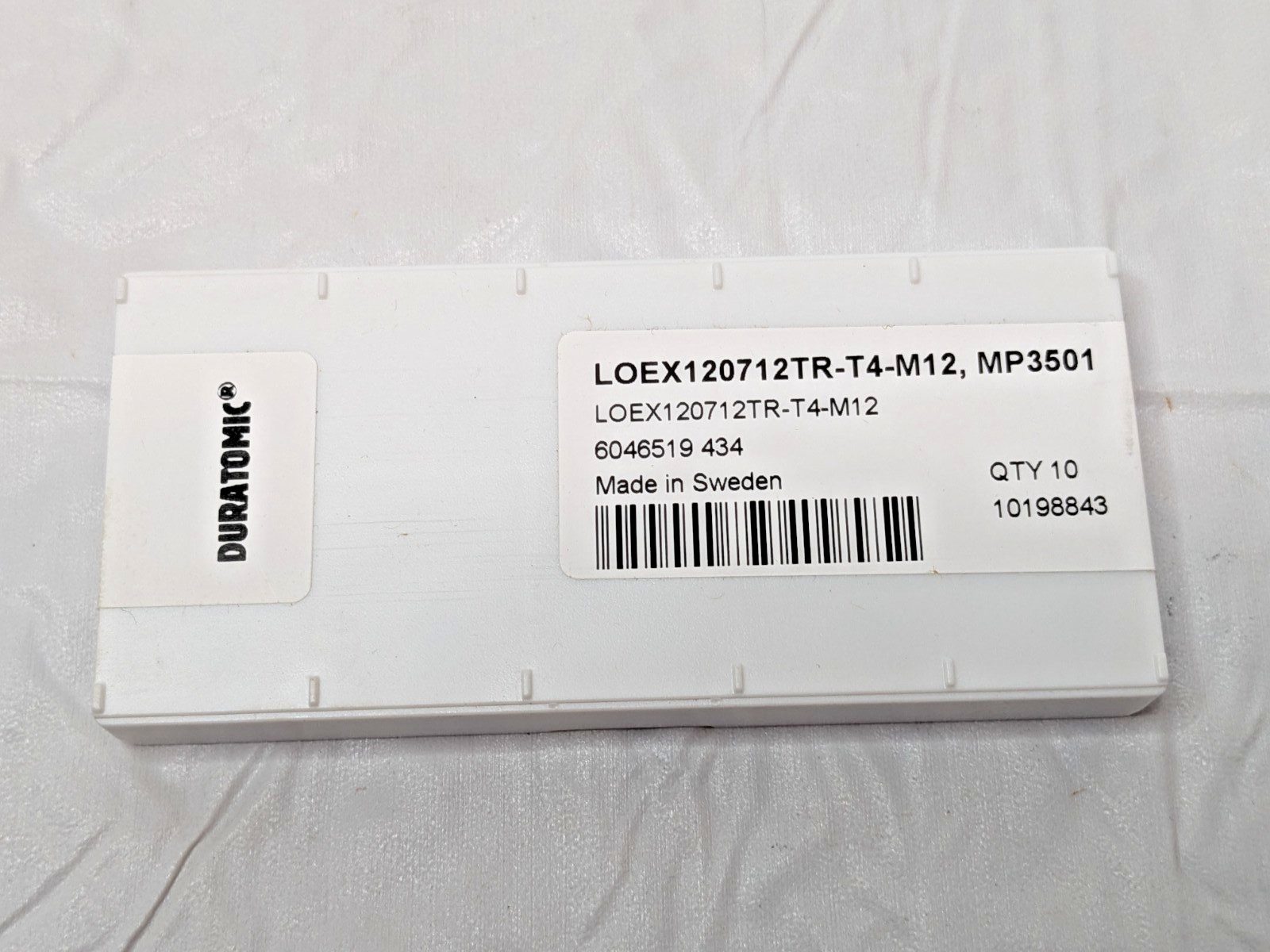

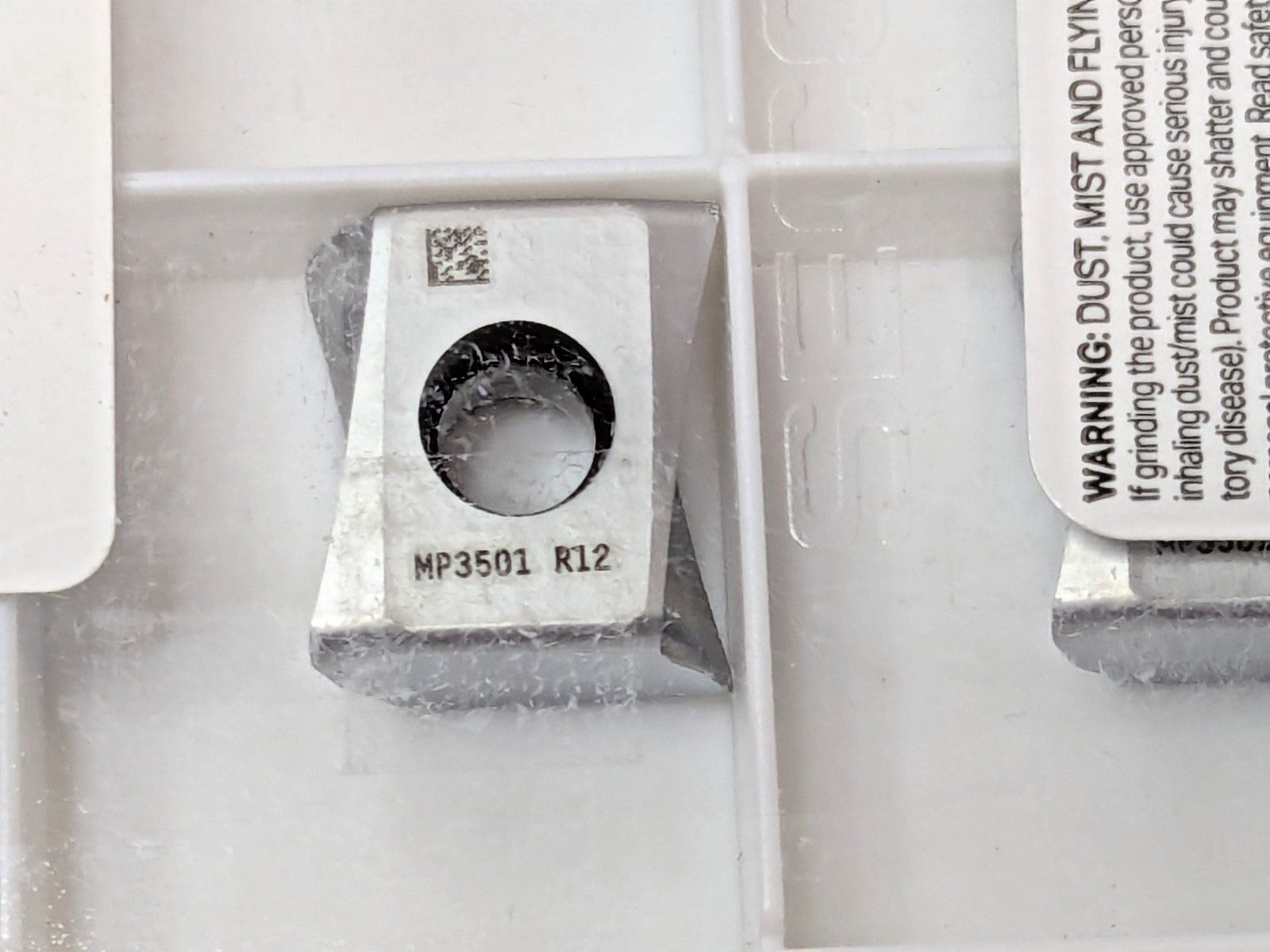

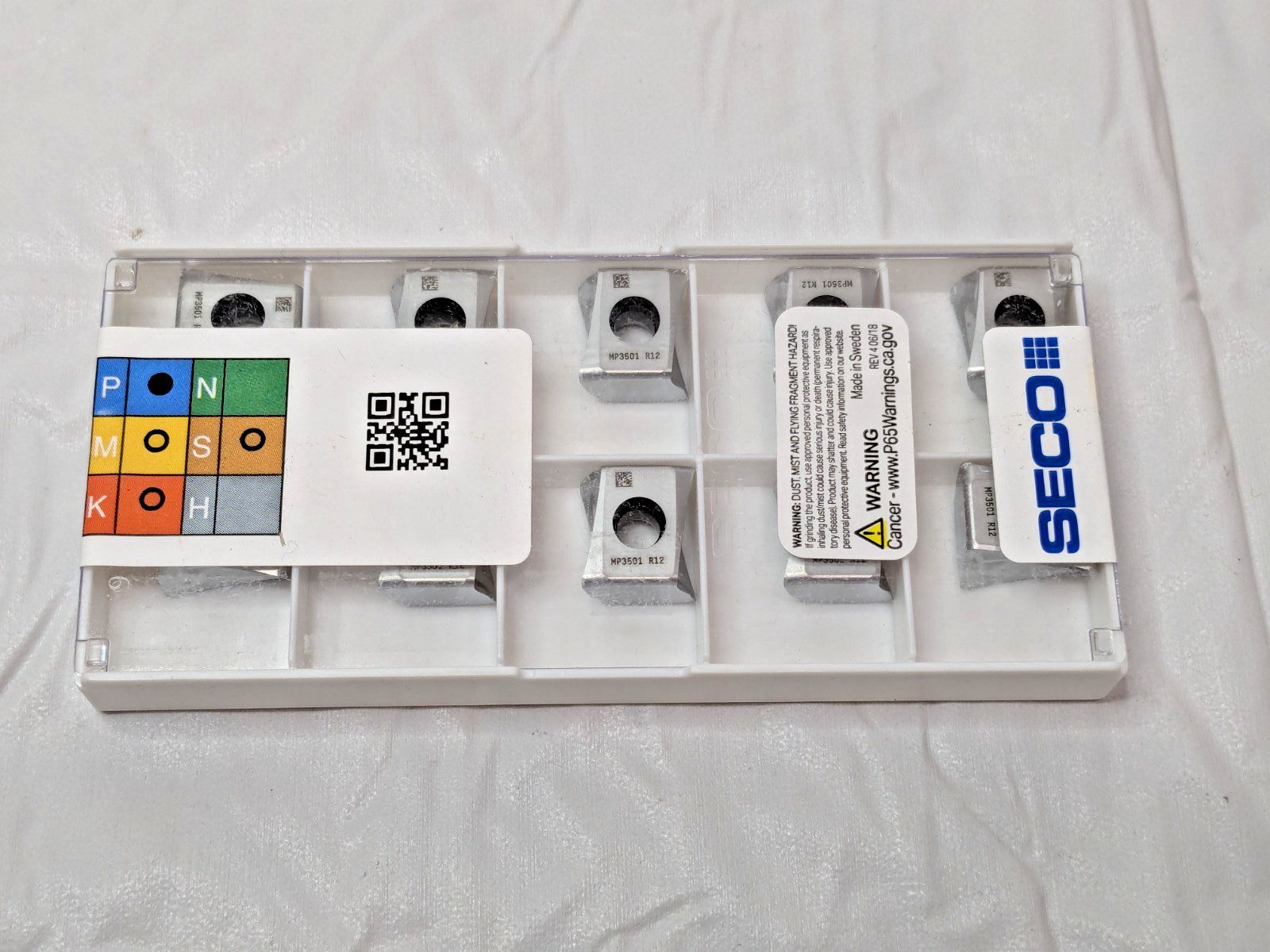

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
July 09 2025
VM14234
Cab Ashe Bin 5
BRAND: SECO
MSRP: $450
INSERT MATERIAL: Carbide
MODEL: LOEX120712TR-T4-M12 MP3501
MPN: 10198843
COUNTRY/REGION OF MANUFACTURE: Sweden
INSERT TYPE: Milling Insert
LOCATION: VM14234CabAsheBin5
