Description
Seco
Carbide Corner Chamfer End Mill
MSRP: $175
- Mill Diameter (Inch) 1/2
- Mill Diameter (Decimal Inch) 0.5000
- Number Of Flutes 3
- Length of Cut (Inch) 1
- Single Or Double End Single
- End Mill Material Solid Carbide
- Coating/Finish SIRON-A
- Overall Length (Inch) 3-1/2
- Centercutting Yes
- Flute Direction Right Hand
- Chamfer Width (Decimal Inch) 0.0059
- Variable Index No
- Variable Helix No
- Cutting Direction Right Hand
- Coolant Through No
- Pitch Normal
- Overall Length (Decimal Inch) 3.5000
- Chipbreaker No
- Chamfer Angle 45
- Length Of Cut (Decimal Inch – 4 Decimals) 1.0000
- Length Type Short
- Flute Type Helical
- Extended Reach No
- Shank Type Weldon Flat
- Material Removal Type Roughing & Finishing
- Shank Diameter (Decimal Inch) 0.5000
- Shank Diameter (Inch) 1/2
- Reach Length (Decimal Inch) 1.0000
- Reach Length (Inch) 1
- Mill Diameter Tolerance e7
- Shank Diameter Tolerance h5
- Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
- Primary Workpiece Material Code P; S; K; M; N
- UNSPSC Code 27112803
- Material Grade Micrograin
- Series JS553
- Additional Information Rampdown; Helical Interpolation; Plunging & Recessing; Shouldering; Slotting; Drill Mill
- TIR Maximum (Decimal Inch) 0.0004
- Coating Classification PVD
- Chamfer Length (Decimal Inch) 0.0059
- Helix Style High

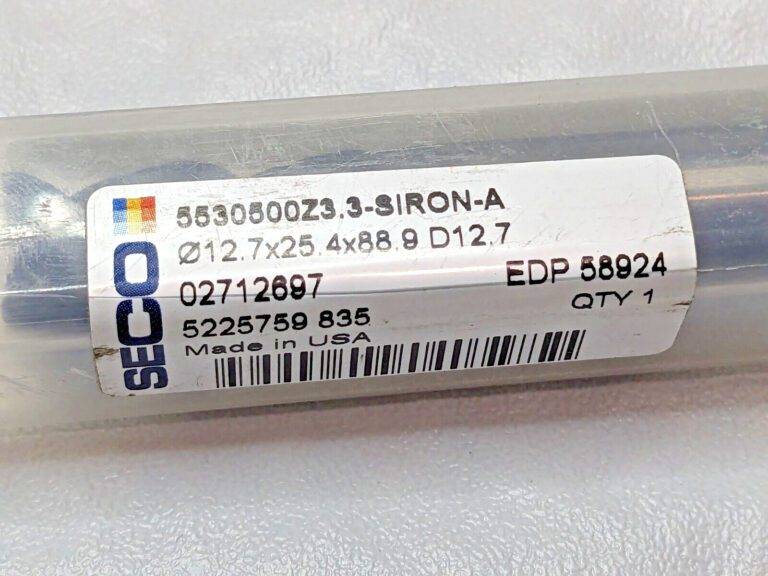

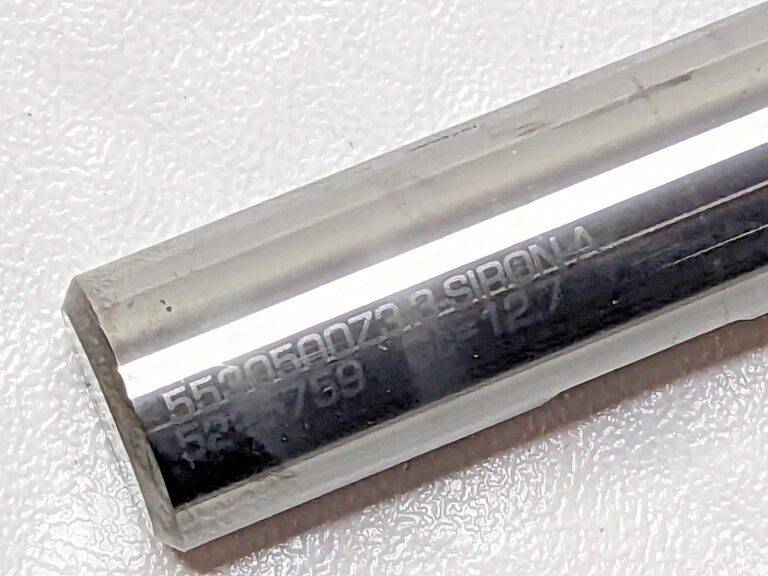

- Manufacturers Catalog Number 5530500Z3.3-SIRON-A

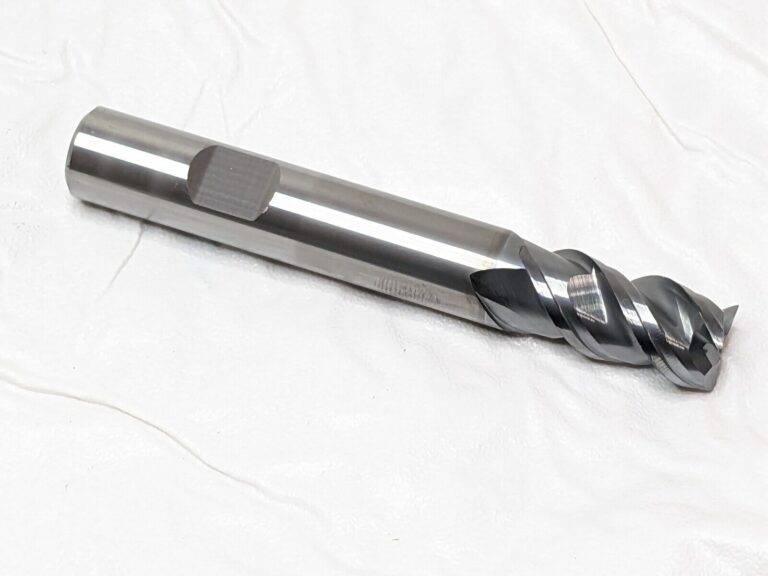

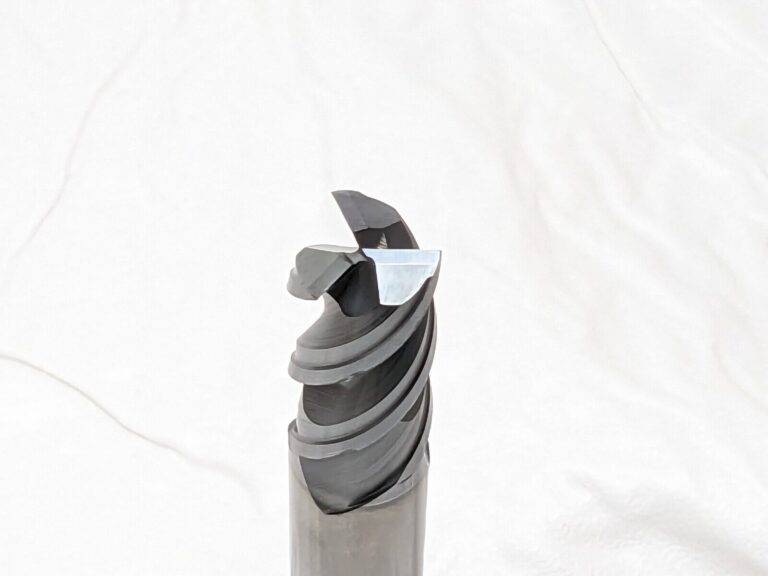

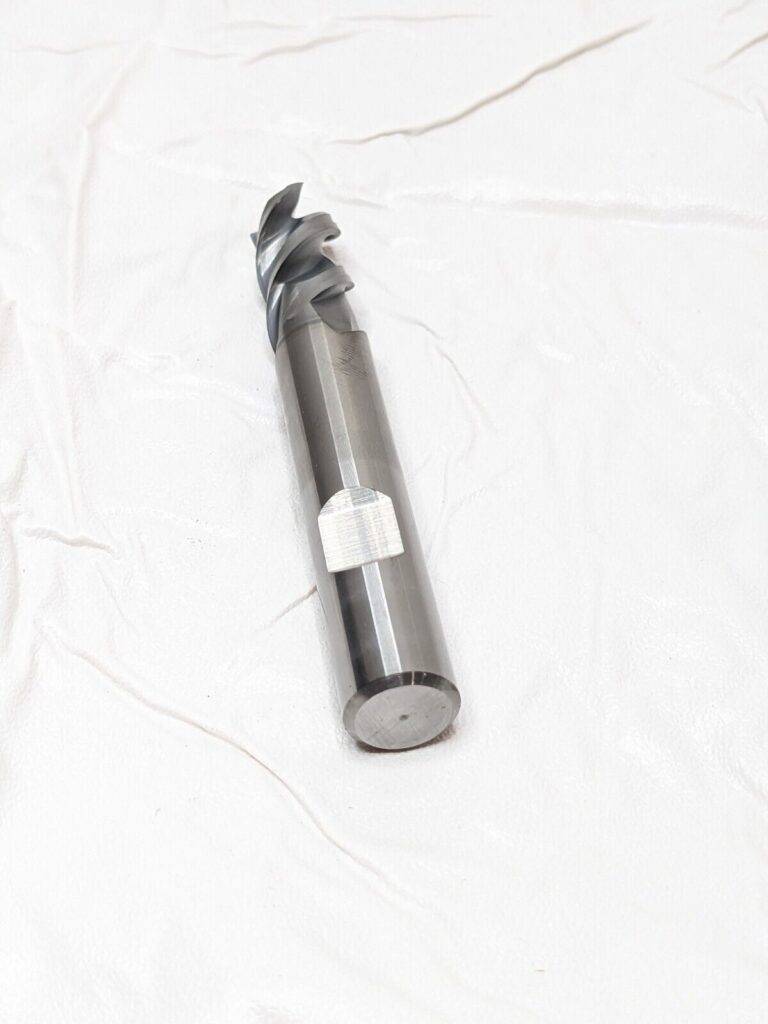

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
June 25 2024
VM13181
Cab Ozzy Bin 66
BRAND: SECO
MSRP: $175
END TYPE: Single End
NUMBER OF FLUTES: 3
END MILL TYPE: Corner Chamfer End Mill
OVERALL LENGTH: 3-1/2 in
MATERIAL: Solid Carbide
COUNTRY/REGION OF MANUFACTURE: United States
LENGTH OF CUT: 1 in
MILL DIAMETER: 1/2 in
SHANK DIAMETER: 1/2 in
LOCATION: VM13181CabOzzyBin66
