Description
Seco
Carbide Ball End Mill
MSRP: $100
- Mill Diameter (Inch) 1/2
- Mill Diameter (Decimal Inch) 0.5000
- Number Of Flutes 4
- End Mill Material Solid Carbide
- Length of Cut (Decimal Inch) 2.0000
- Length of Cut (Inch) 2
- Shank Diameter (Decimal Inch) 0.5000
- Shank Diameter (Inch) 1/2
- Overall Length (Decimal Inch) 4.0000
- Overall Length (Inch) 4
- Single Or Double End Single
- Coating/Finish Family AlTiN
- Centercutting Yes
- Cutting Direction Right Hand
- Flute Direction Right Hand
- Extended Reach No
- Coolant Through No
- Helix Angle 30
- Primary Workpiece Material Super-Alloy & Titanium; Stainless Steel; Cast Iron; Steel
- Primary Workpiece Material Code P; S; K; M
- Coating/Finish SIRON-A
- Variable Helix No
- Variable Index No
- Chipbreaker No
- Flute Type Helical
- Shank Type Cylindrical
- Material Grade Micrograin
- Length Type Extra Long
- Coating Classification PVD
- Helix Style Medium
- Nose Radius (Decimal Inch) 0.2500
- Neck Length (Decimal Inch) 0.0000
- Reach Length (Inch) 2
- Reach Length (Decimal Inch) 2.0000
- Mill Diameter Tolerance -0.0020/0.0000 in
- Overall Length Tolerance NAS 986
- Shank Diameter Tolerance ANSI B94.19
- TIR Maximum (Decimal Inch) 0.0005
- Series C5341
- System Of Measurement Fractional Inch
- Manufacturers Catalog Number 10268536
- Material Removal Type Roughing & Finishing
- UNSPSC Code 27112803

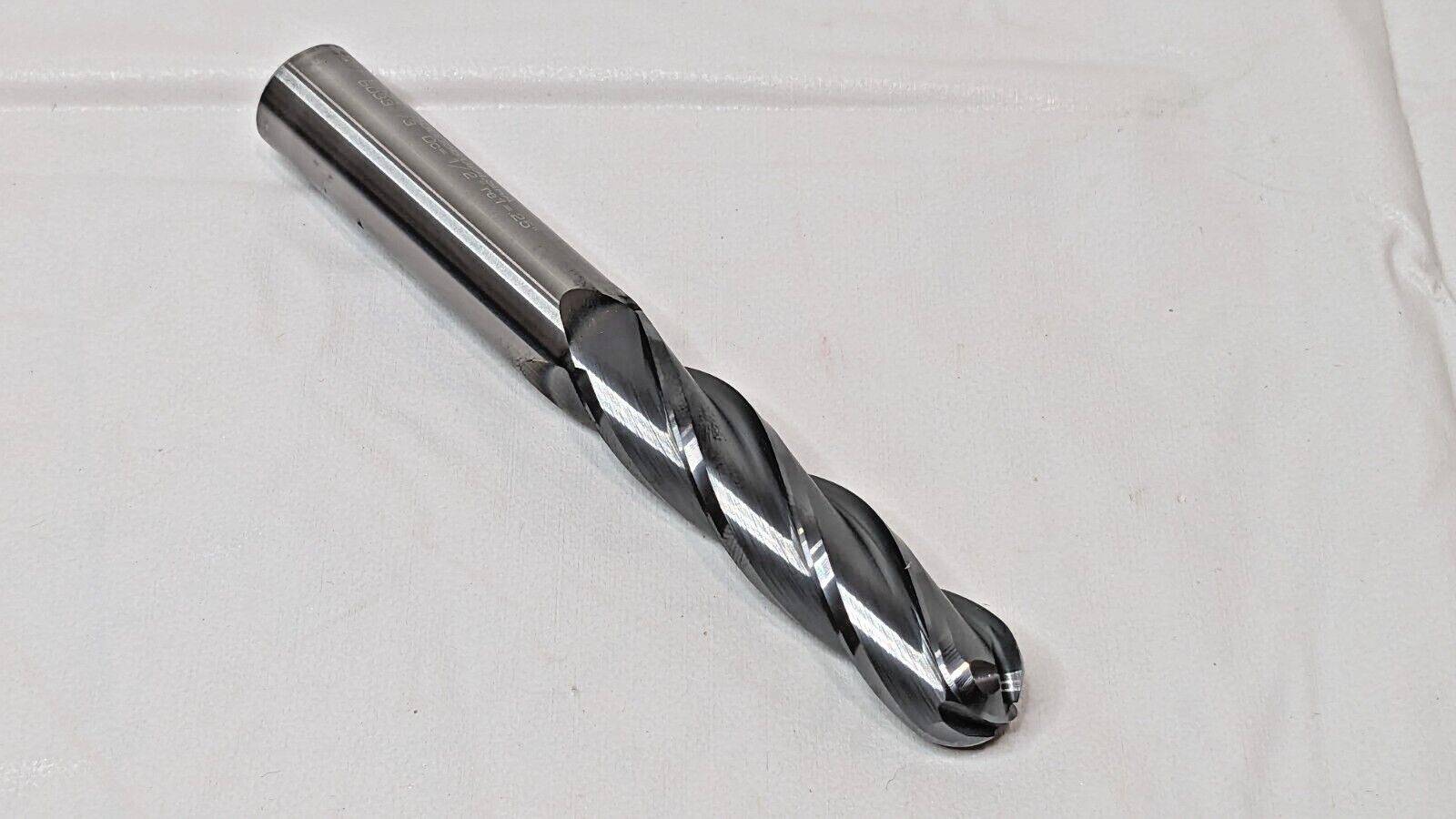

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
January 17 2025
VM13821
Cab Marley Bin 68
COUNTRY OF ORIGIN: United States
MSRP: $100
NUMBER OF FLUTES: 4
END MILL TYPE: Ball End Mill
OVERALL LENGTH: 4 in
MATERIAL: Solid Carbide
MPN: 10268536
MILL DIAMETER: 1/2 in
SHANK DIAMETER: 1/2 in
BRAND: Seco
END TYPE: na
LENGTH OF CUT: 2 in
LOCATION: VM13821CabMarleyBin68
