Description
Seco
MSRP: $60.00
Model: 18928
Description:
Drill Bit Size (Decimal Inch) : 0.3543
Drill Bit Size (mm) : 9.00
Drill Point Angle: 140
Drill Bit Material: Solid Carbide
Drill Bit Finish/Coating: Multilayer TiAlN
Flute Type: Spiral
Cutting Direction: Right Hand
Shank Type: Straight
Flute Length (mm): 47.00
Flute Length (Decimal Inch): 1.8504 —
Overall Length (mm): 89.00
Overall Length (Decimal Inch): 3.5039 —
Flute Length x Diameter Ratio: 3xD
Shank Diameter (mm): 10.00
Shank Diameter (Decimal Inch): 0.3937 —
Specification Designation: DIN —
Maximum Drilling Depth (mm): 29.00
Maximum Drilling Depth (Decimal Inch): 1.1417 —
Spiral Type: Regular Spiral
Shank Length (mm): 40.00
Shank Length (Decimal Inch): 1.5748 —
Threaded Shank: No
Number of Flutes: 2 —
Web Configuration: Tapered —
Drill Bit Diameter Tolerance (mm): +0.006 to +0.021 —
Specification Number: DIN 6537A —
Web Thinning: Web-Thinned —
Series/List: SD203

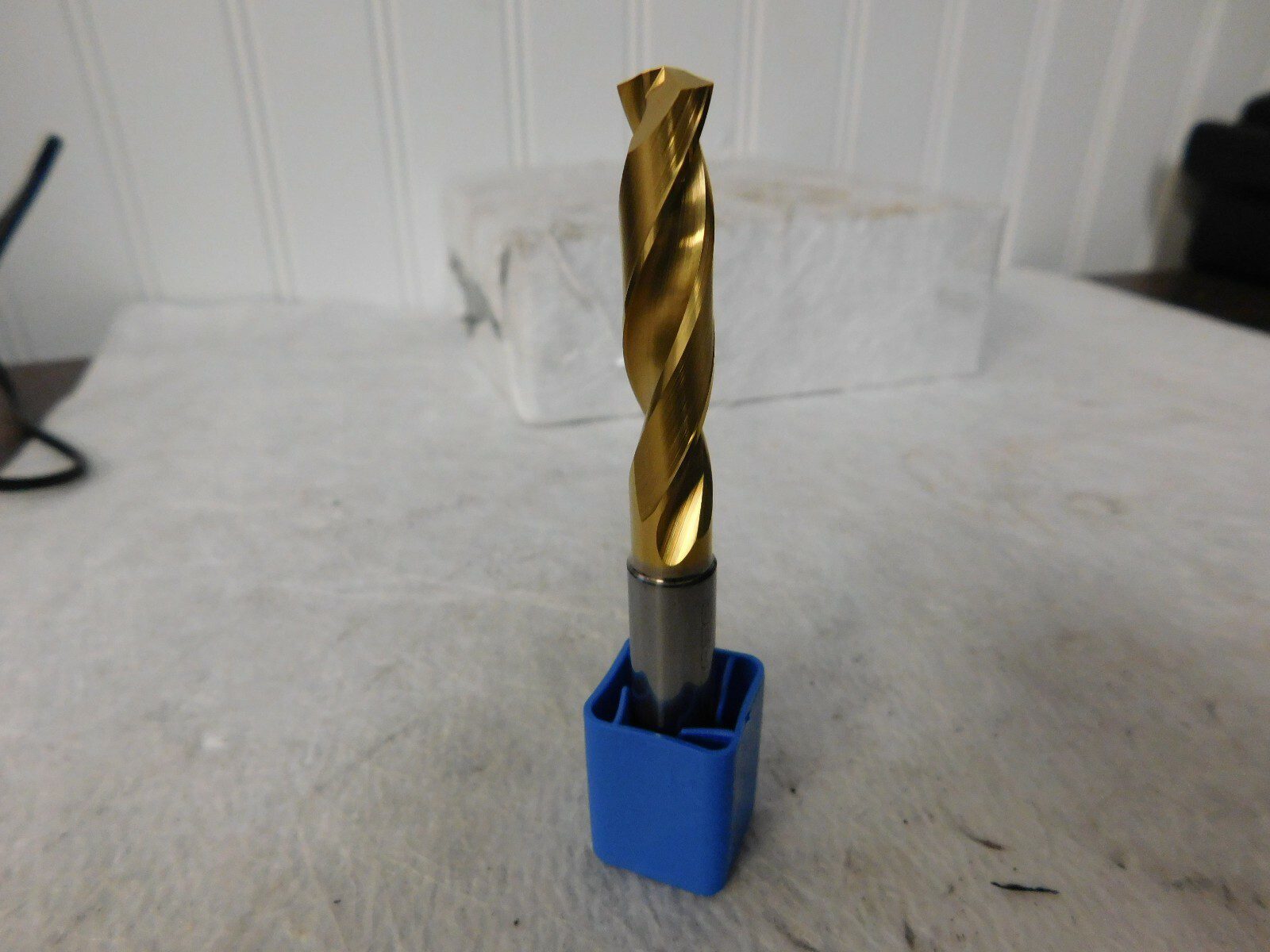

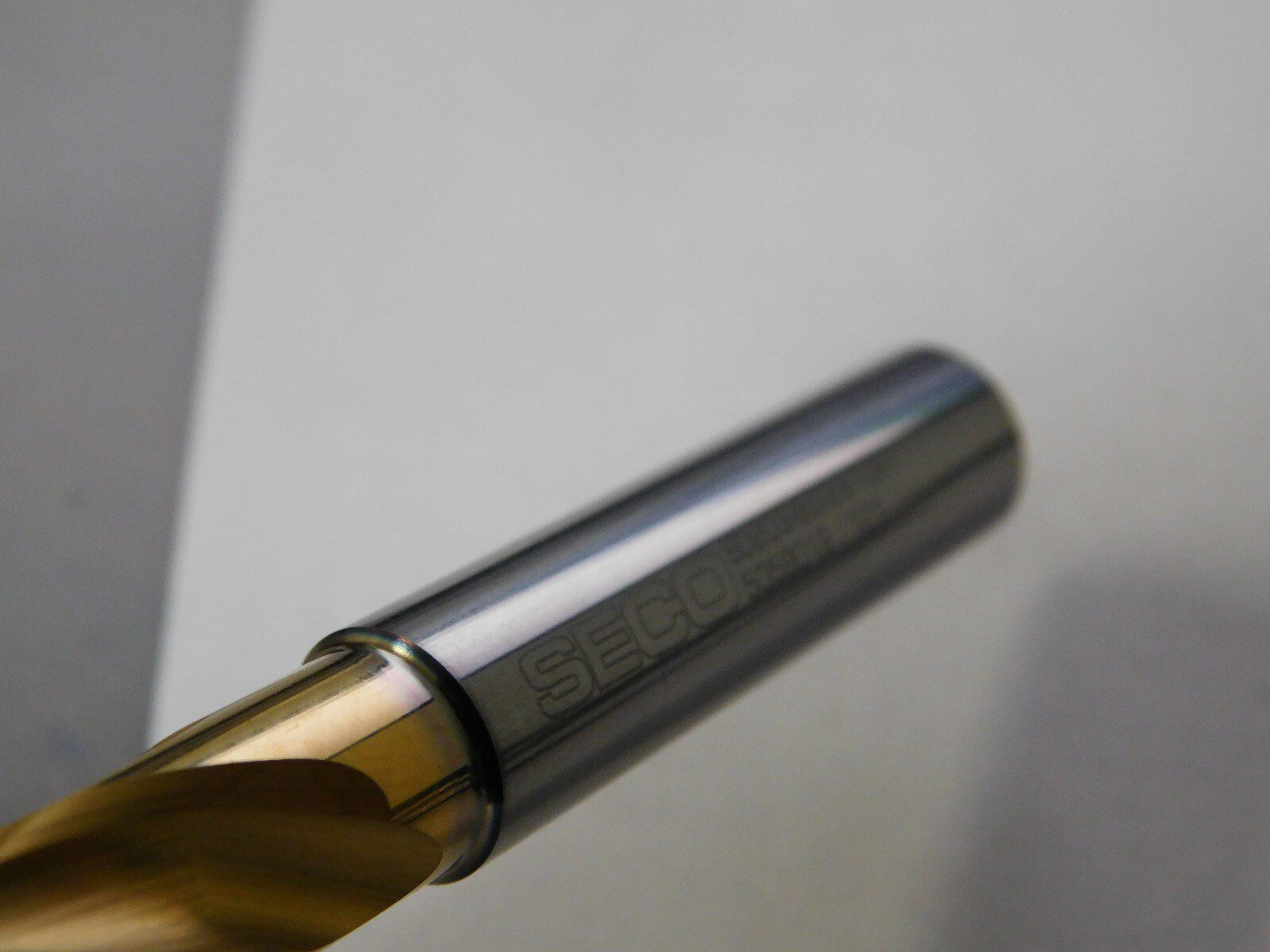

This listing is for One Drill Bit that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Cristy Sept 29 20
CM 3591
Zola2
MODEL: 18928
COUNTRY/REGION OF MANUFACTURE: Unknown
LOACTION: CM3591Zola2
MSRP: 60.00
MPN: Does Not Apply
BRAND: SECO
