Description
SECO 2pc Turning Inserts: CCGW32.52S-00820-L1-B, PCBN 02649609
MSRP: $170
- ANSI Insert Code CCGW32.52
- ISO Insert Code CCGW09T308
- Relief Angle 7
- Insert Style CCGW
- Corner Radius (Inch) 1/32
- Corner Radius (Decimal Inch) 0.0315
- Included Angle 80
- Manufacturer Grade CBN200
- Coating/Finish Bright/Uncoated
- Wiper Edge No
- Insert Hand Neutral
- Insert Thickness (Inch) 5/32
- Insert Thickness (Decimal Inch) 0.1563
- Series CCGW-Flat Top
- Inscribed Circle (Decimal Inch) 0.3750
- Inscribed Circle (Inch) 3/8
- Insert Material PCBN
- Insert Shape C – Diamond (Rhombic) 80-Deg
- Chip Breaker Operation Flat Top
- Grade Characteristics Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
- Side Clearance Positive
- Number Of Cutting Edges 2
- Insert Shape Code C
- Hole Diameter (Decimal Inch) 0.1772
- Maximum Depth of Cut (Decimal Inch) 0.0400
- Insert Holding Method Screw
- Width (Inch) 3/8
- Clearance Code C
- Tolerance Code G
- Coating Process PCBN
- Length Range (Decimal Inch) 0.3000 – 0.4000
- Rake Positive
- Insert Length (Decimal Inch) 0.3819
- Primary Workpiece Material Cast Iron
- Primary Workpiece Material Code S; K
- Secondary Workpiece Material Hard Material; Superalloys & Titanium
- Secondary Workpiece Material Code S; H
- Iso Code CCGW09T308S-02020-L1-B
- Standards ISO; ANSI
- Manufacturers Catalog Number 02649609
- Material Grade K20; K10
- Single or Multi Tipped Multi Tipped
- Proprietary Coating Designation Uncoated
- Lead Angle 80
- Coating Classification Uncoated
- Chip Breaker Flat Top
- Rake Angle 0
- Cutting Edge Style Honed; Chamfered
- Industry Standard Number CCGW32.52S-00820-L1-B
- Width (Decimal Inch – 4 Decimals) 0.3750
- Multi-Use Tool Yes
- Full Radius No
- Multi-Use Application Facing; Turning; Boring
- Tip Length (Decimal Inch) 0.0940
- ANSI Size Code 32.52
- ISO Size Code 09T308
- UNSPSC Code 23242105
- Insert Size Code 32.52
- Country of Origin Sweden
(Description).

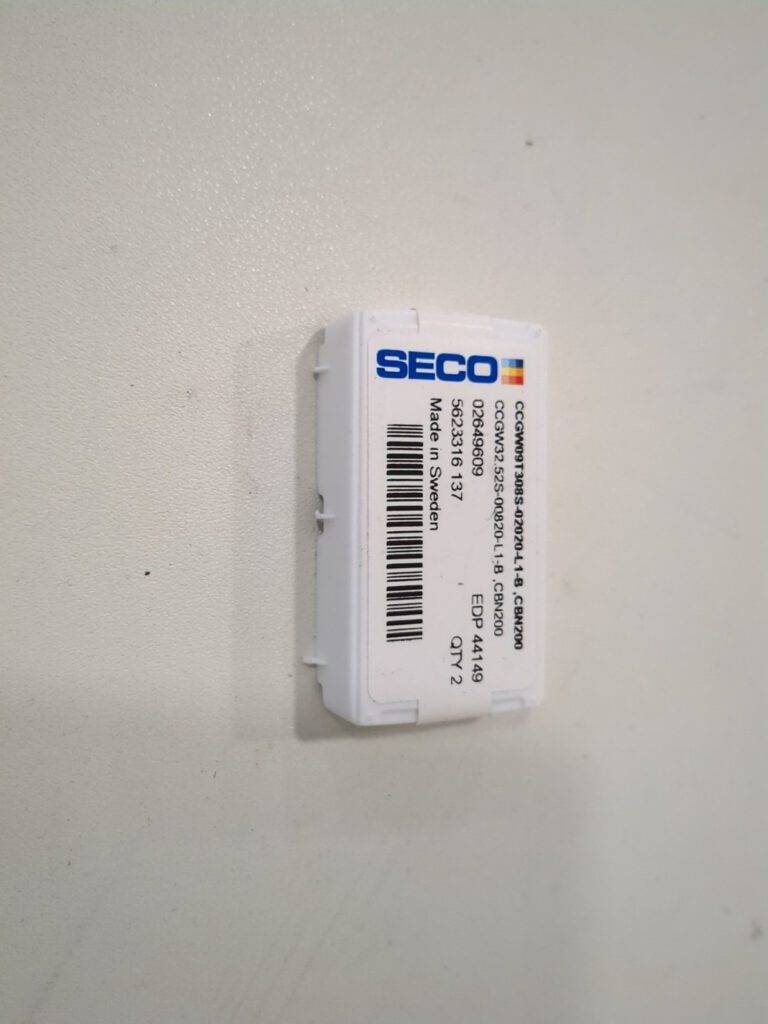

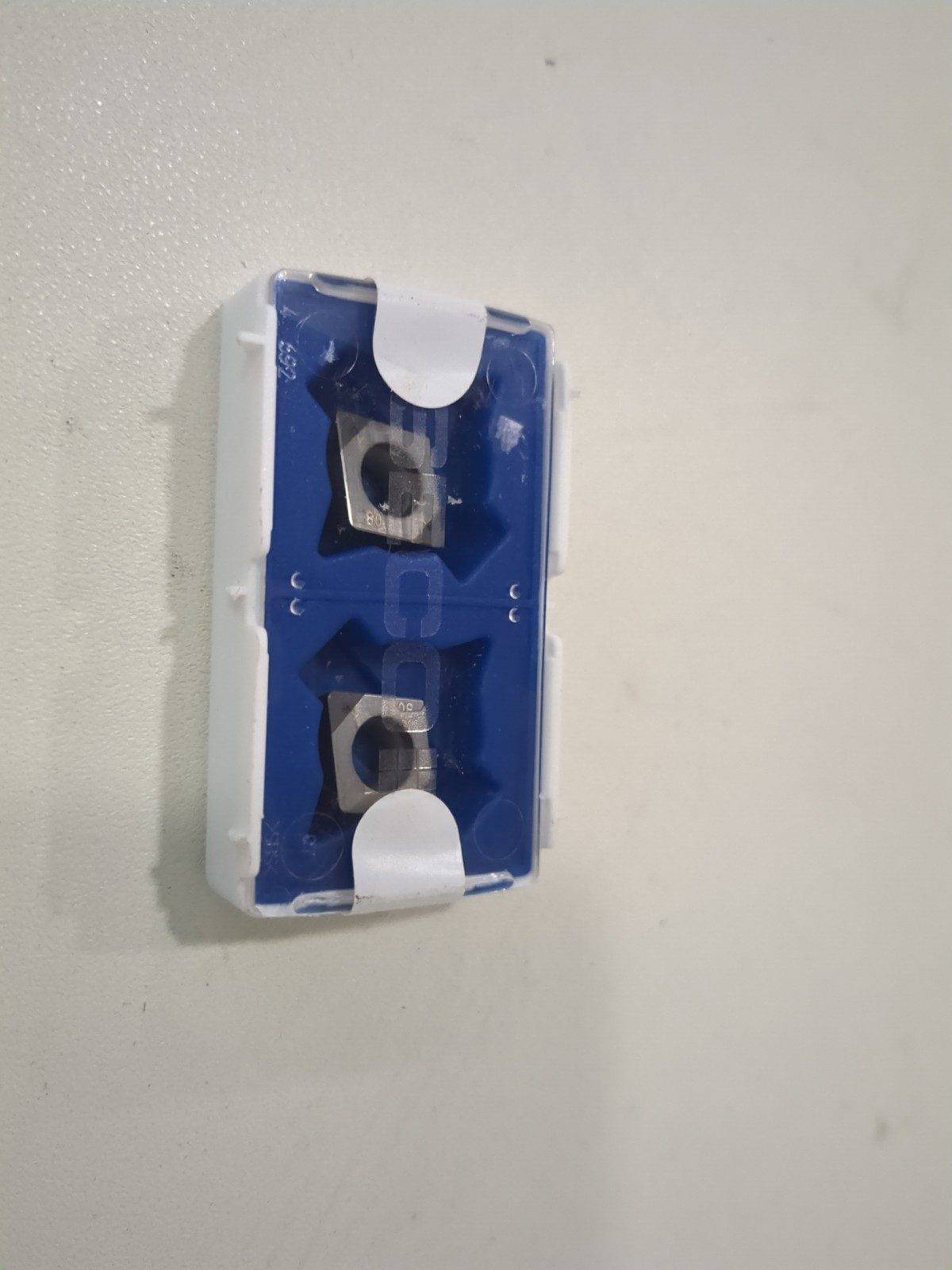

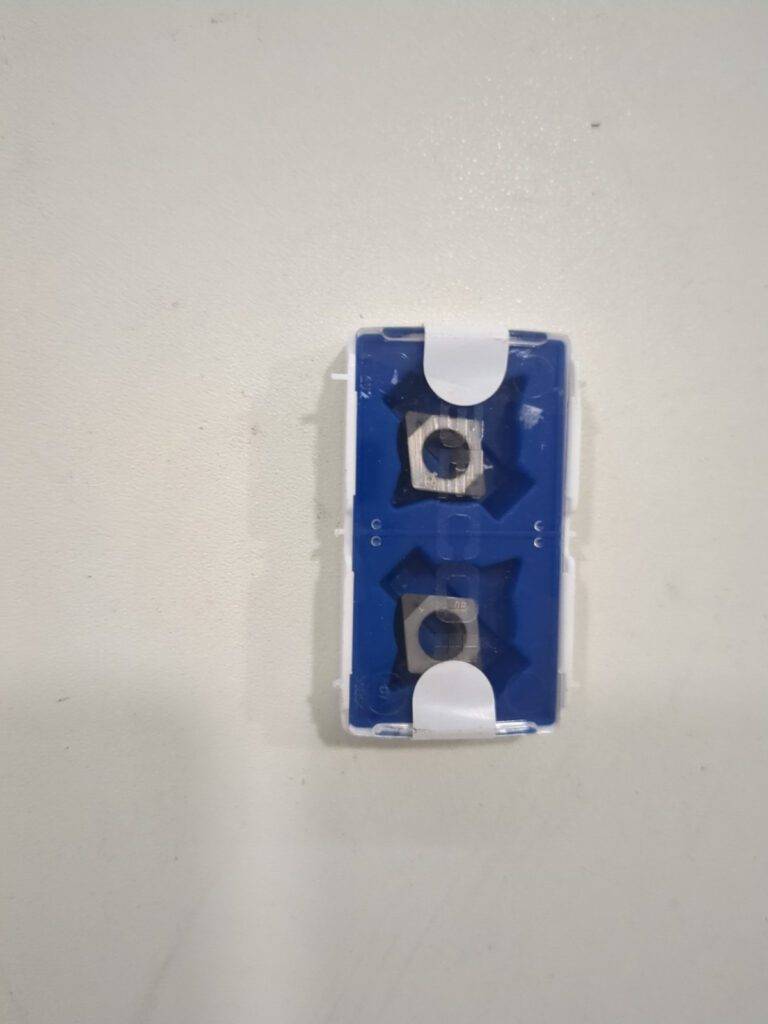

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
feb 13 25
HS 8556
logan 8
BRAND: SECO
UNIT TYPE: Unit
INSERT MATERIAL: NA
MPN: 02649609
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: Unknown
UNIT QUANTITY: see description
CALIFORNIA PROP 65 WARNING: na
