Description
BRAND SANDVIK
Item Turning InsertTPMT1.81.51-KF 3225, Solid Carbide qty.10 6868376
MSRP: $95
- specs
- Insert Style TPMT
- Insert Shape Code T
- Insert Size Code 1.81.51
- Insert Shape Triangle
- Coating/Finish TiCN/AI2O3/TiN
- Manufacturer Grade 3225
- Corner Radius (Inch) 1/64
- Corner Radius (mm) 0.40
- Corner Radius (Decimal Inch) 0.0156
- Insert Material Solid Carbide
- Hole Diameter (Mm) ( – 0 Decimals) 2.50
- Hole Diameter (Decimal Inch) 0.0984
- Maximum Depth of Cut (mm) 9.50
- Inscribed Circle (mm) 5.71
- Inscribed Circle (Decimal Inch) 0.2250
- Insert Holding Method Screw
- Insert Hand Neutral
- Insert Thickness (Inch) 3/32
- Insert Thickness 2.38
- Insert Thickness (Decimal Inch) 0.0937
- Clearance Code P
- Tolerance Code M
- Included Angle 60.0
- Relief Angle 11
- Series CoroTurn 111
- Coating Process CVD
- Iso Code TPMT 09 02 04-KF 3225
- Cutting Direction Neutral
- Chip Breaker T
- Cutting Edge Style Rounded
OPEN BOX. Unused/Overstock. Item is in excellent condition, with no signs of previous use or wear. Original packaging may be imperfect due to shelf storage. WARRANTY NOT INCLUDED. SOLD AS IS.

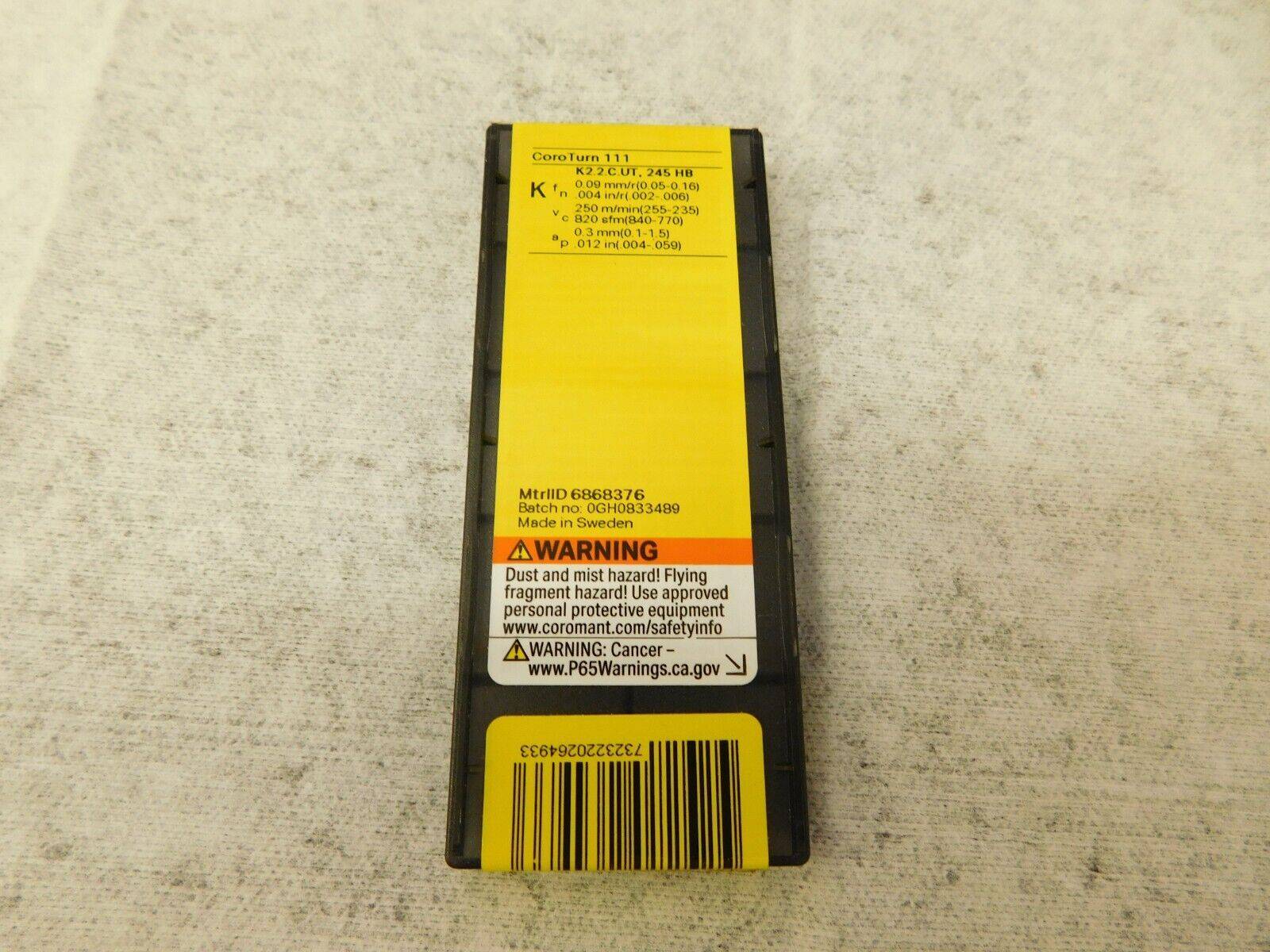

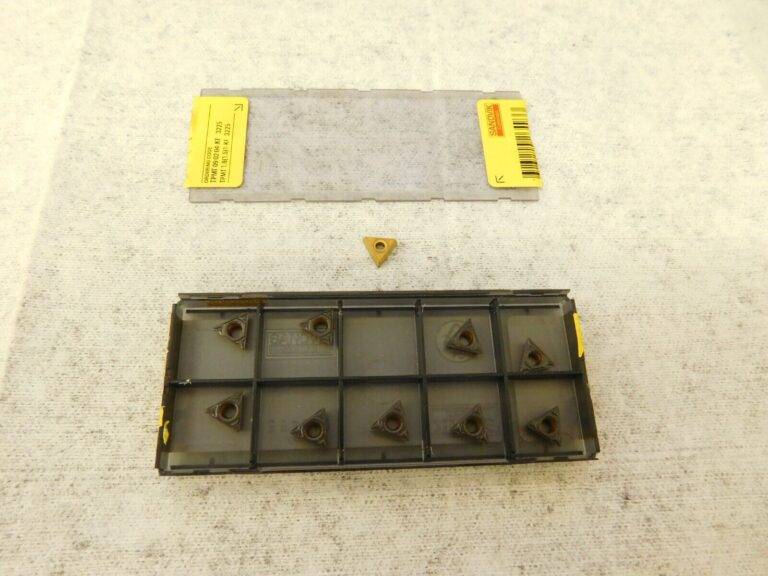

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date july112023
Lister# jr015
Loc chuck4
BRAND: Sandvik
LOC: jr015chuck4
INSERT MATERIAL: Carbide
MSRP: 95
MPN: na
INSERT TYPE: Turning Insert
