Description
Sandvik
1 Lot of 3 Inserts
MSRP: $40.00
- Insert Style SNMG
- Insert Size Code 643
- Insert Shape Square
- Included Angle 90
- Inscribed Circle (Decimal Inch) 0.7500
- Corner Radius (Decimal Inch) 0.0469
- Corner Radius (mm) 1.19
- Insert Material Carbide
- Manufacturer Grade 4335
- Coating/Finish TiCN; TiN; AI2O3
- Relief Angle 0
- Wiper Edge No
- Insert Thickness 6.35
- Insert Thickness (Decimal Inch) 0.2500
- Insert Hand Neutral
- Number Of Cutting Edges 8
- Insert Shape Code S
- Corner Radius (Inch) 3/64
- Hole Diameter (Mm) ( – 0 Decimals) 7.93
- Hole Diameter (Decimal Inch) 0.3120
- Inscribed Circle (Inch) 3/4
- Inscribed Circle (mm) 19.05
- Insert Holding Method Pin; Clamp
- Insert Thickness (Inch) 1/4
- Clearance Code N
- Tolerance Code M

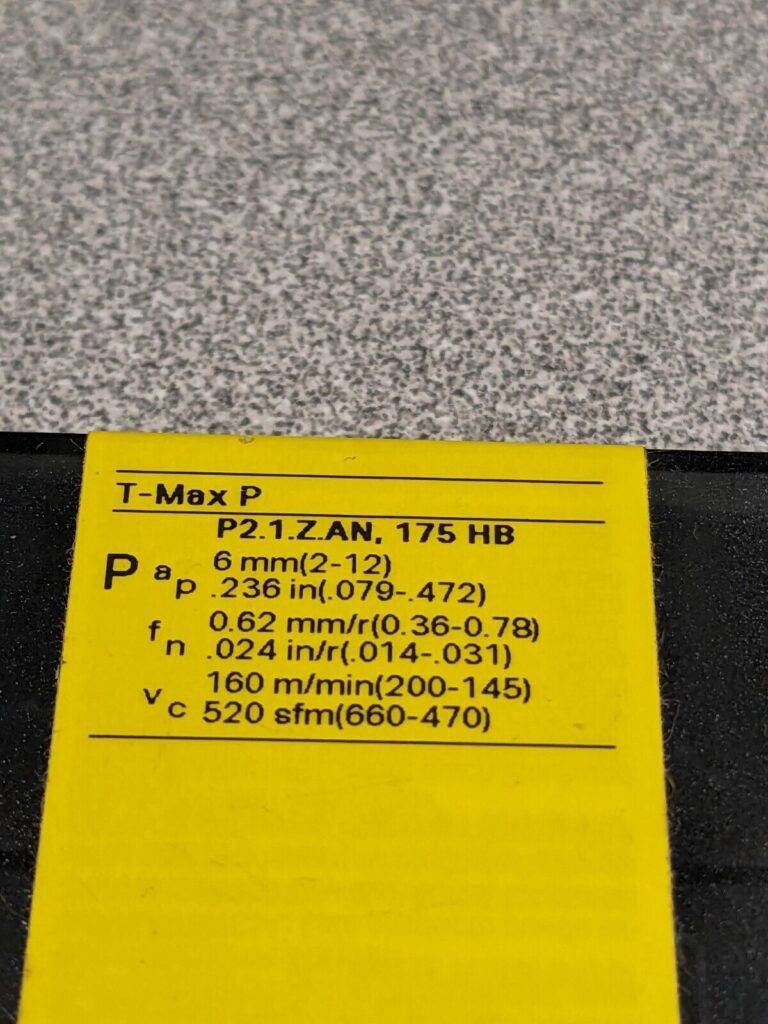

- Series T-Max P
- Coating Process CVD
- Primary Workpiece Material Steel
- Primary Workpiece Material Code P

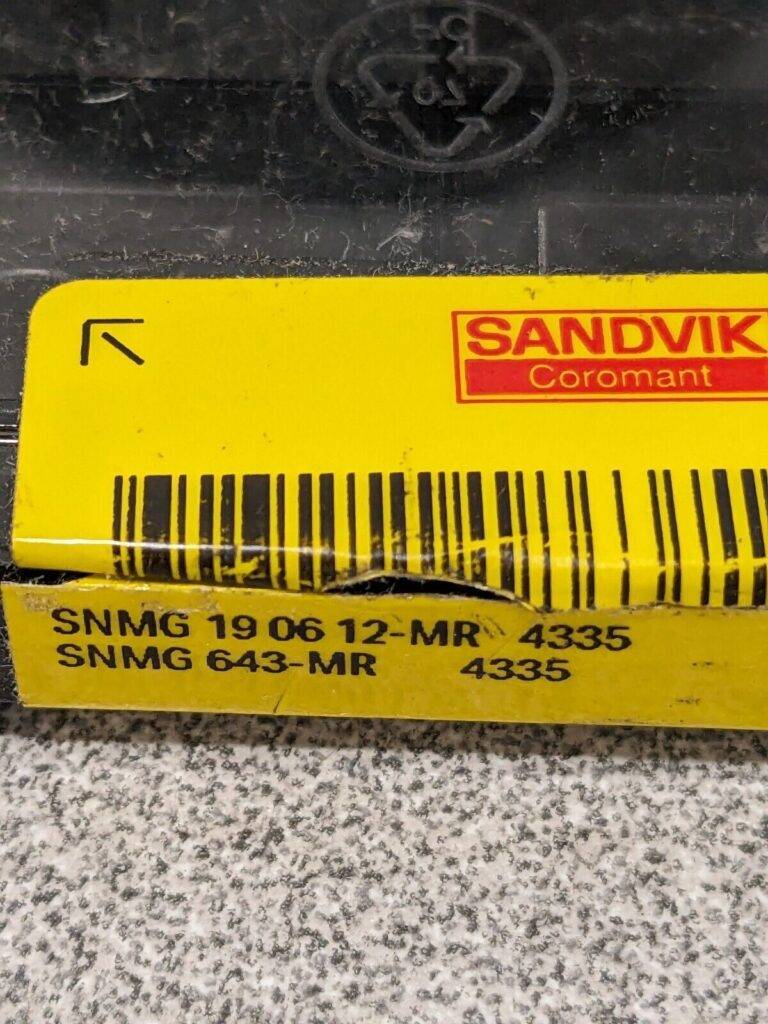

- Iso Code SNMG 19 06 12-MR 4335
- UNSPSC Code 23242105
- Chip Breaker MR
These items appear to be new and in good condition. SOLD AS IS.

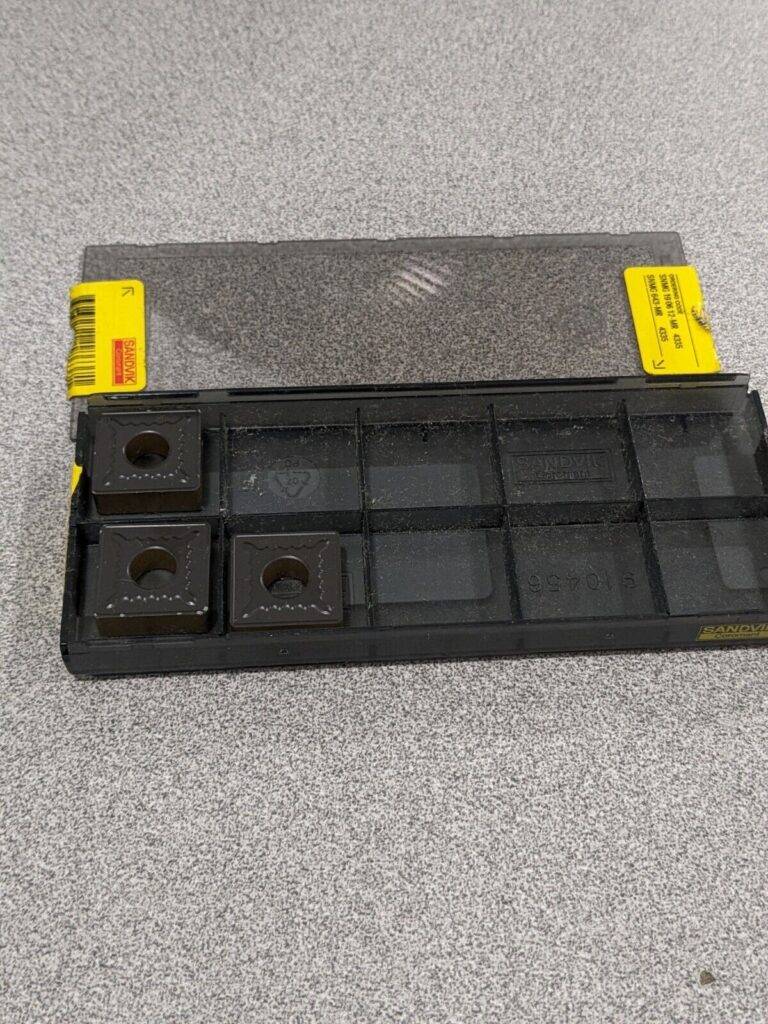

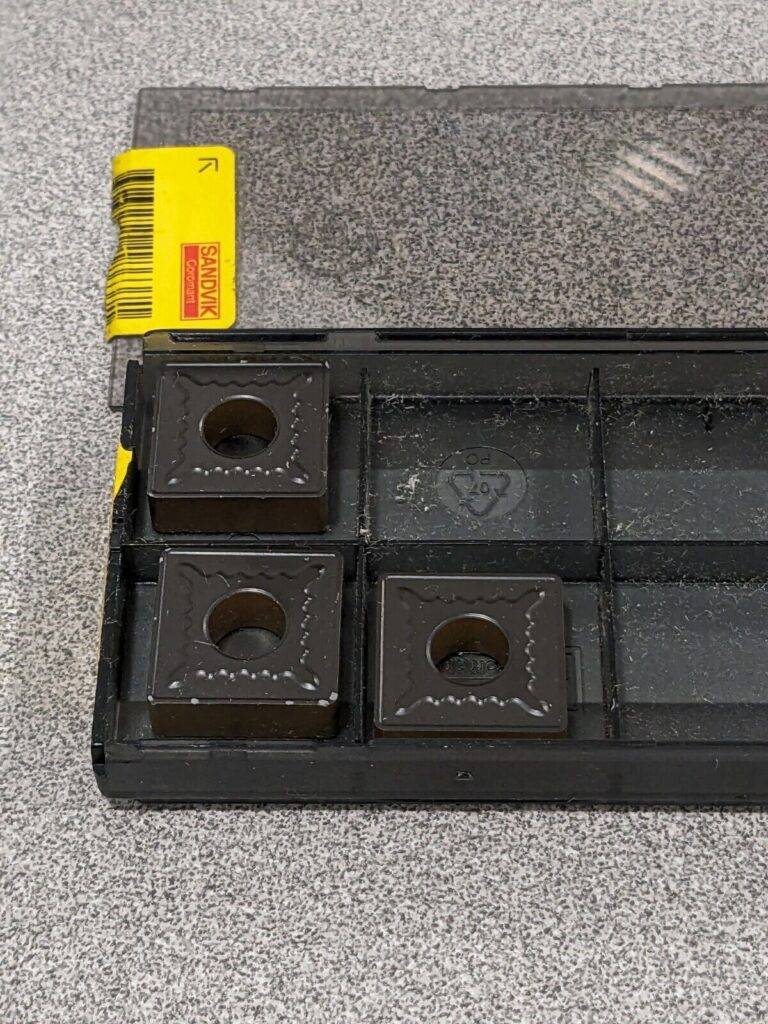

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
February 15 2024
TB 15752
Cab Chris Bin 43
BRAND: Sandvik
MSRP: $40.00
INSERT MATERIAL: Carbide

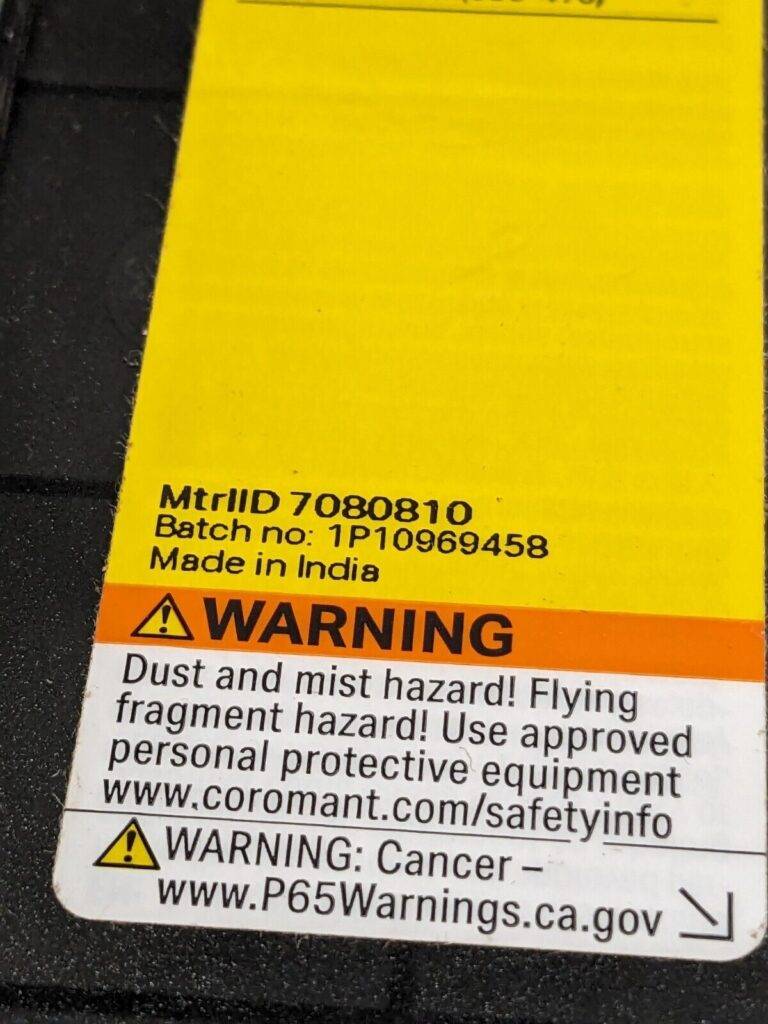

MODEL: 7080810
MPN: Does Not Apply
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: India
LOCATION: TB15752CabChrisBin43
