Description
Sandvik
Solid Carbide Extra Length Drill Bit
- Drill Bit Size (mm) 3.00
- Drill Bit Size (Decimal Inch) 0.1181
- Drill Point Angle 140
- Drill Bit Material Solid Carbide
- Drill Bit Finish/Coating TiAlN
- Overall Length (Decimal Inch) 3.7795
- Through Coolant Coolant Through
- Shank Diameter (Decimal Inch) 0.2362
- Shank Diameter (mm) 6.00
- Flute Length (Decimal Inch) 2.1260
- Cutting Direction Right Hand
- Flute Length x Diameter Ratio 15xD
- Flute Type Spiral
- Number of Flutes 2
- Point Type Standard
- Shank Type Straight
- Spiral Type Regular Spiral
- Maximum Drilling Depth (Decimal Inch) 1.7717
- Specification Designation ANSI; ISO
- Shank Length (Decimal Inch) 1.4173
- Shank Length (Inch) 1.4173
- Threaded Shank No
- Drill Point Length (mm) 0.50
- Drill Point Length (Decimal Inch) 0.0197
- Drill Bit Diameter Tolerance (mm) m7
- Drill Bit Diameter Tolerance (mm) m7
- Series/List CoroDrill 861

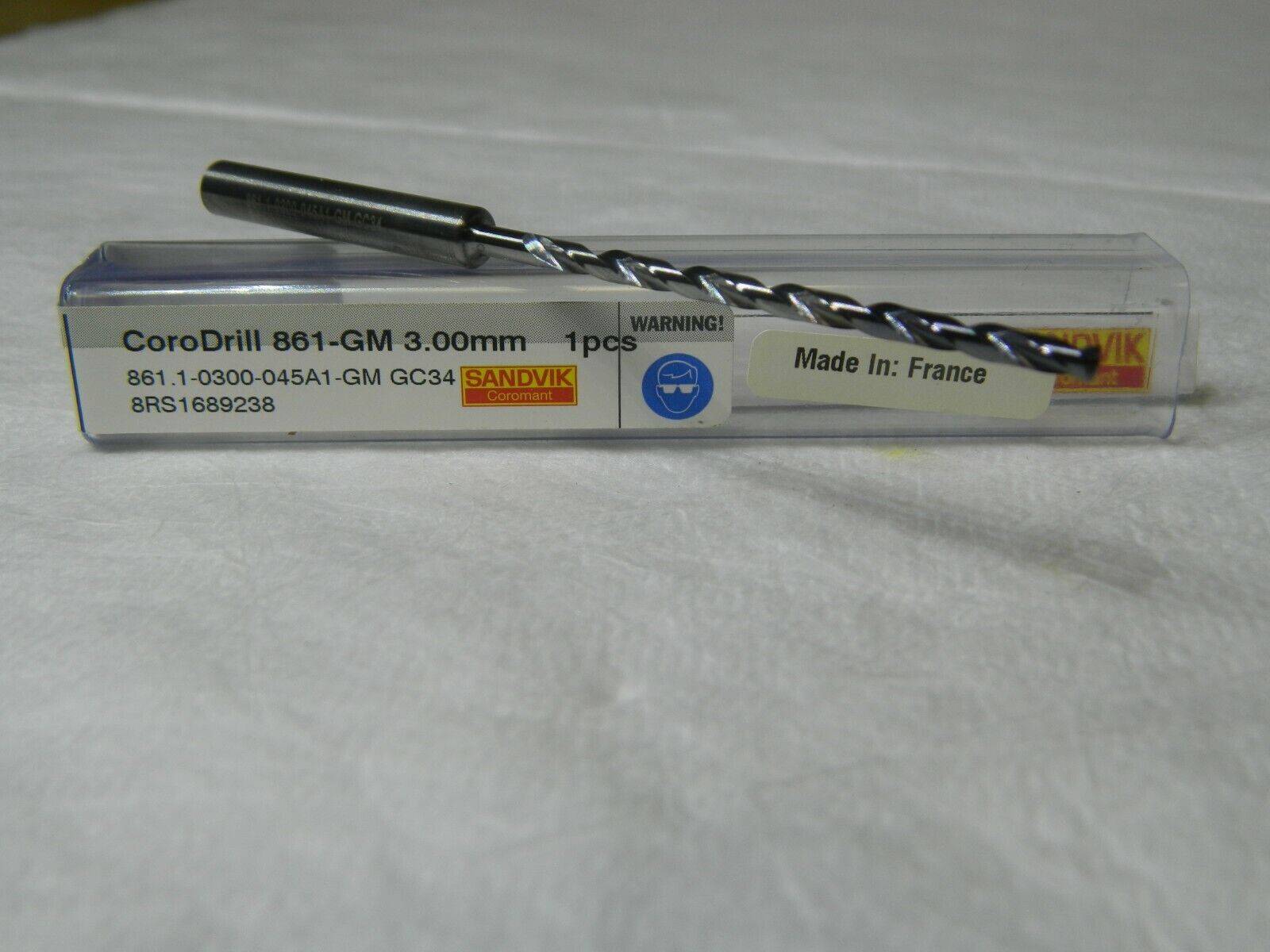

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
February 01 2022
TB 10446
Cab Mars Bin 12
LOCATION: TB10446CabMarsBin12
COUNTRY/REGION OF MANUFACTURE: France
MSRP: 175.00
MODEL: 6150909 861.1-0300-045A1-GM GC34
MPN: Does Not Apply
BRAND: Sandvik Coromant
