Description
Sandvik
R840-0280-50-A0B 1020 Delta-C solid carbide drill 5746834
MSRP: $75
- Cutting diameter(DC)
- 2.8 mm
- Achievable hole tolerance(TCHA)
- H9
- Usable length(LU)
- 11.7 mm
- Usable length diameter ratio(ULDR)
- 4.179
- Adaptive interface machine direction(ADINTMS)
- Cylindrical shank without clamping features -metric: 2.80
- Connection diameter tolerance(TCDCON)
- h6
- Grade(GRADE)
- 1020
- Substrate(SUBSTRATE)
- HC
- Coating(COATING)
- PVD TiCN+TiN
- Basic standard group(BSG)
- COROMANT
- Coolant entry style code(CNSC)
- 0: without coolant
- Connection diameter(DCON)
- 2.8 mm
- Point angle(SIG)
- 140 deg
- Point length(PL)
- 0.5 mm
- Overall length(OAL)
- 46 mm
- Functional length(LF)
- 45.5 mm
- Chip flute length(LCF)
- 16 mm
- Maximum regrinds(NORGMX)
- 0
- Rotational speed maximum(RPMX)
- 28,421 1/min

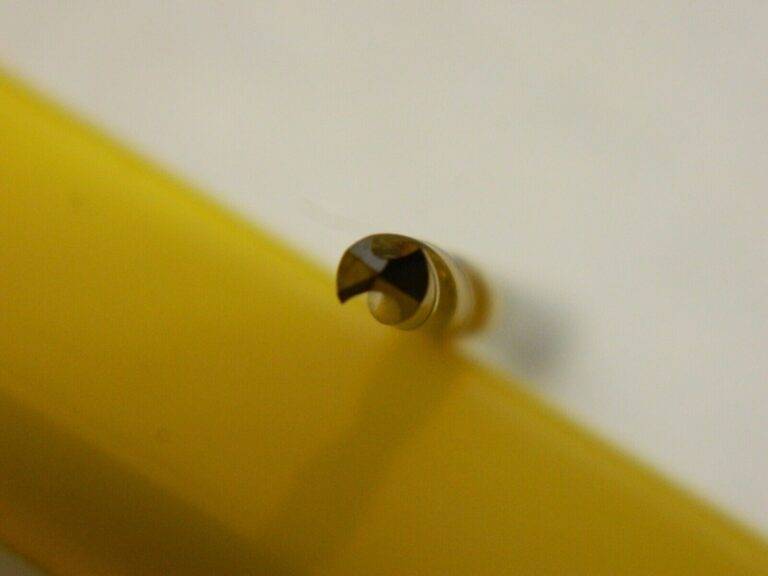

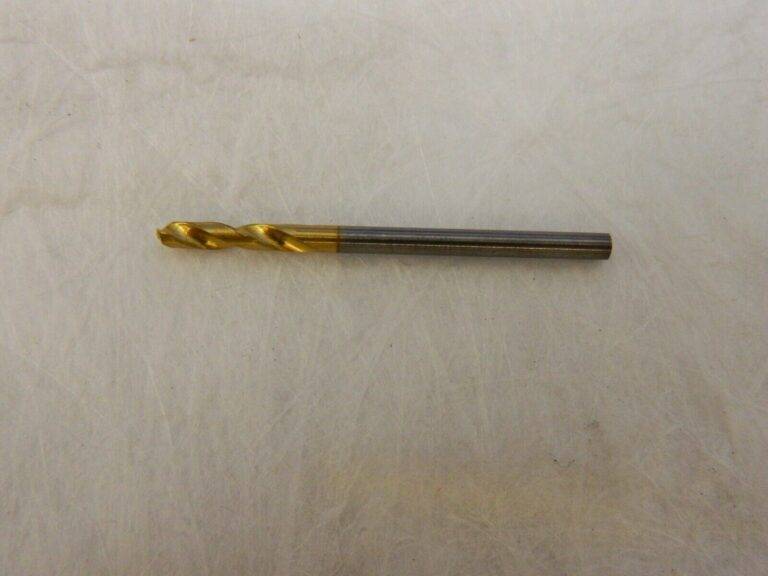

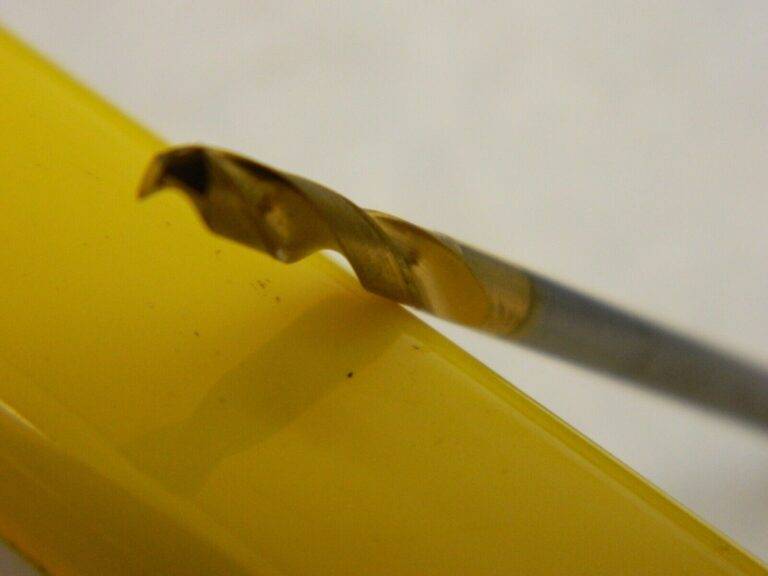

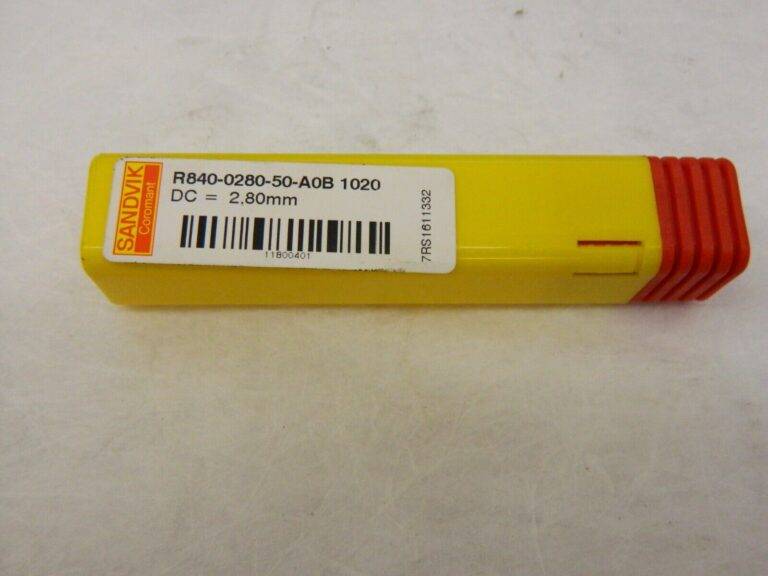

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Jan 05 23
HS665
Skunk25
BRAND: Sandvik
MSRP: $75
MPN: 5746834
