Description
BRAND
Item
MSRP: $ 331.00
| Insert Style |
R245 |
| Insert Size |
18 |
| Insert Material |
Solid Carbide |
| Insert Shape |
Square |
| Manufacturer Grade |
4330 |
| Corner Radius (Decimal Inch) |
0.0394 |
| Corner Radius (mm) |
1.00 |
| Number Of Cutting Edges |
4 |
| Thickness (Decimal Inch – 4 Decimals) |
0.2402 |
| Thickness (mm) |
6.10 |
| Coating/Finish |
TiCN; TiN; Al2O3 |
| Insert Size Code |
18T6 |
| Material Grade |
K30; M30; P30 |
| Inscribed Circle (Decimal Inch) |
0.7087 |
| Inscribed Circle (mm) |
18.00 |
| Thickness Range (Decimal Inch) |
0.2350 to 0.2500 |
| Inscribed Circle Range (Decimal Inch) |
0.7000 to 1.0000 |
| Length Range (Decimal Inch) |
0.7000 to 0.9000 |
| Insert Hand |
Right Hand |
| Maximum Depth of Cut (Decimal Inch) |
0.3839 |
| Maximum Depth of Cut (mm) |
9.75 |
| Series |
R245 |
| Coating Process |
CVD |
| Hole Diameter (Decimal Inch) |
0.2244 |
| Rake |
Positive |
| Primary Workpiece Material |
Cast Iron; Steel |
| Primary Workpiece Material Code |
P; K |
| Ansi Code |
R245-18 T6 M-PM 4330 |
| Iso Code |
R245-18 T6 M-PM 4330 |
| Standards |
ISO; ANSI |
| Rake Angle |
10 |
| Cutting Edge Style |
Corner Rounded |
| Manufacturers Catalog Number |
R245-18 T6 M-PM 4330 |
| Cutter Series Compatibility |
R245 |
| Chip Breaker |
PM |
| UNSPSC Code |
23291601 |
| Material Application |
Cast Iron; Steel |
| Insert Holding Method |
Screw |
| Coating Classification |
CVD |
| Single or Double Sided Insert |
Single |
| Included Angle Degree |
90 |
| Width (Decimal Inch – 4 Decimals) |
0.7087 |
| Multi-Use Tool |
Yes |
| Length (Decimal Inch – 4 Decimals) |
0.7087 |
| Country of Origin |
UNITED STATES |
(Description).

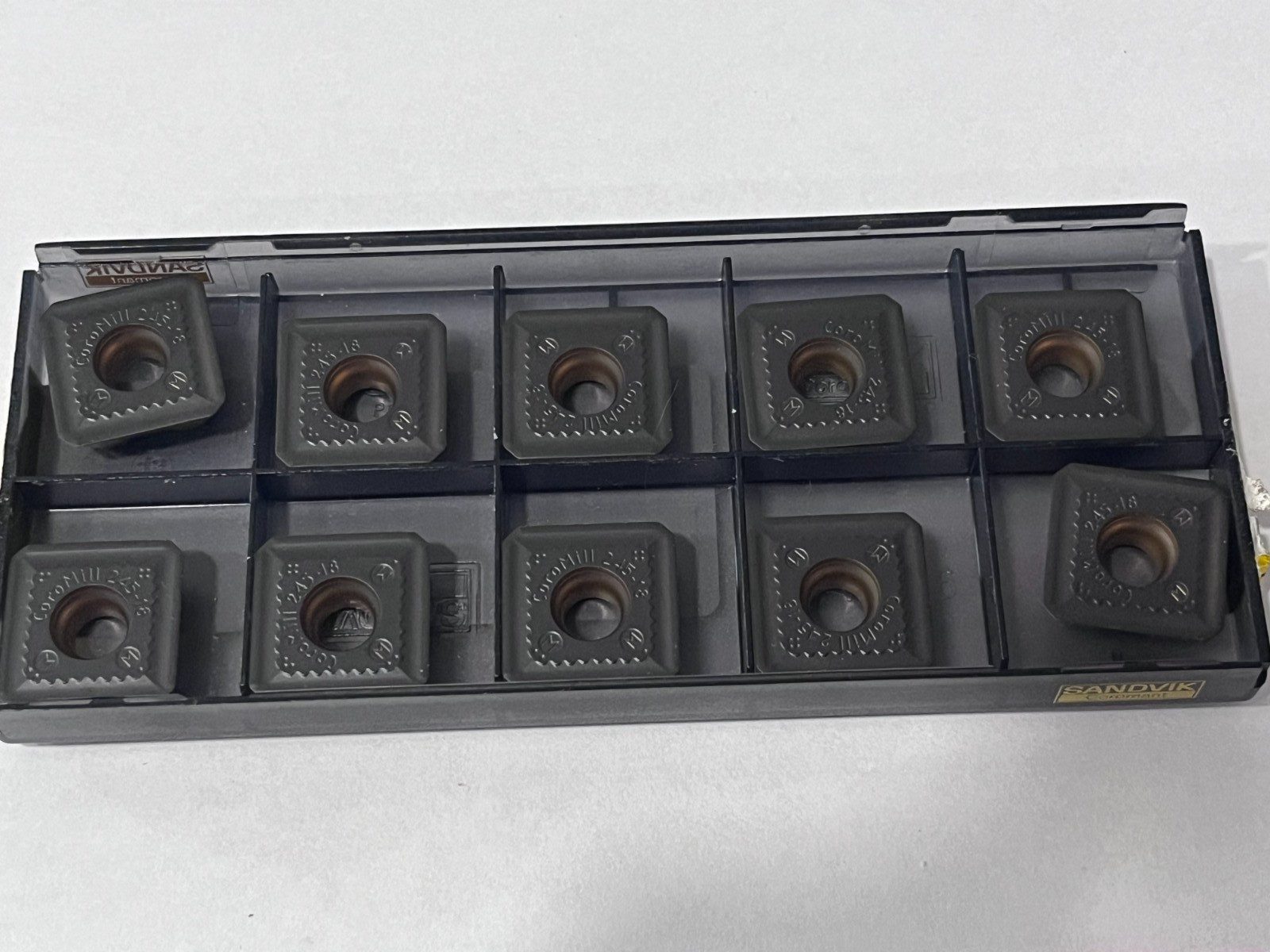

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
BRAND: Sandvik
INSERT MATERIAL: Carbide
MPN: 7564443
INSERT TYPE: Milling Insert
COUNTRY/REGION OF MANUFACTURE: United States
