Description
SANDVIK COROMANT Turning Insert: DNGA432S0835A 7025, Cubic Boron Nitride 6155453
MSRP: $180
- Relief Angle 0
- Corner Radius (Inch) 1/32
- Corner Radius (Decimal Inch) 0.0315
- Corner Radius (mm) 0.80
- Included Angle 55
- Manufacturer Grade 7025
- Coating/Finish Bright/Uncoated
- Insert Hand Neutral
- Insert Thickness (Inch) 3/16
- Insert Thickness 4.76
- Insert Thickness (Decimal Inch) 0.1874
- Series T-Max P
- Inscribed Circle (Inch) 1/2
- Inscribed Circle (Decimal Inch) 0.5000
- Inscribed Circle (mm) 12.70
- Insert Material Cubic Boron Nitride (CBN)
- Insert Shape Diamond
- Insert Shape Code D
- Hole Diameter (Decimal Inch) 0.2032
- Hole Diameter (Mm) ( – 0 Decimals) 5.16
- Maximum Depth of Cut (mm) 2.10
- Maximum Depth of Cut (Decimal Inch) 0.0827
- Insert Holding Method Pin; Clamp
- Clearance Code N
- Tolerance Code G
- Length Range (Decimal Inch) 0.6000 – 0.6500
- Insert Length (Decimal Inch) 0.6102
- Insert Length (mm) 15.50
- Primary Workpiece Material Code H
- Iso Code DNGA150408S02035A7025
- Manufacturers Catalog Number 6155453
- Chip Breaker A
- Cutting Edge Style Negative Land; ER Treated
- UNSPSC Code 23242105
- Insert Style DNGA
- Insert Size Code 432
(Description).

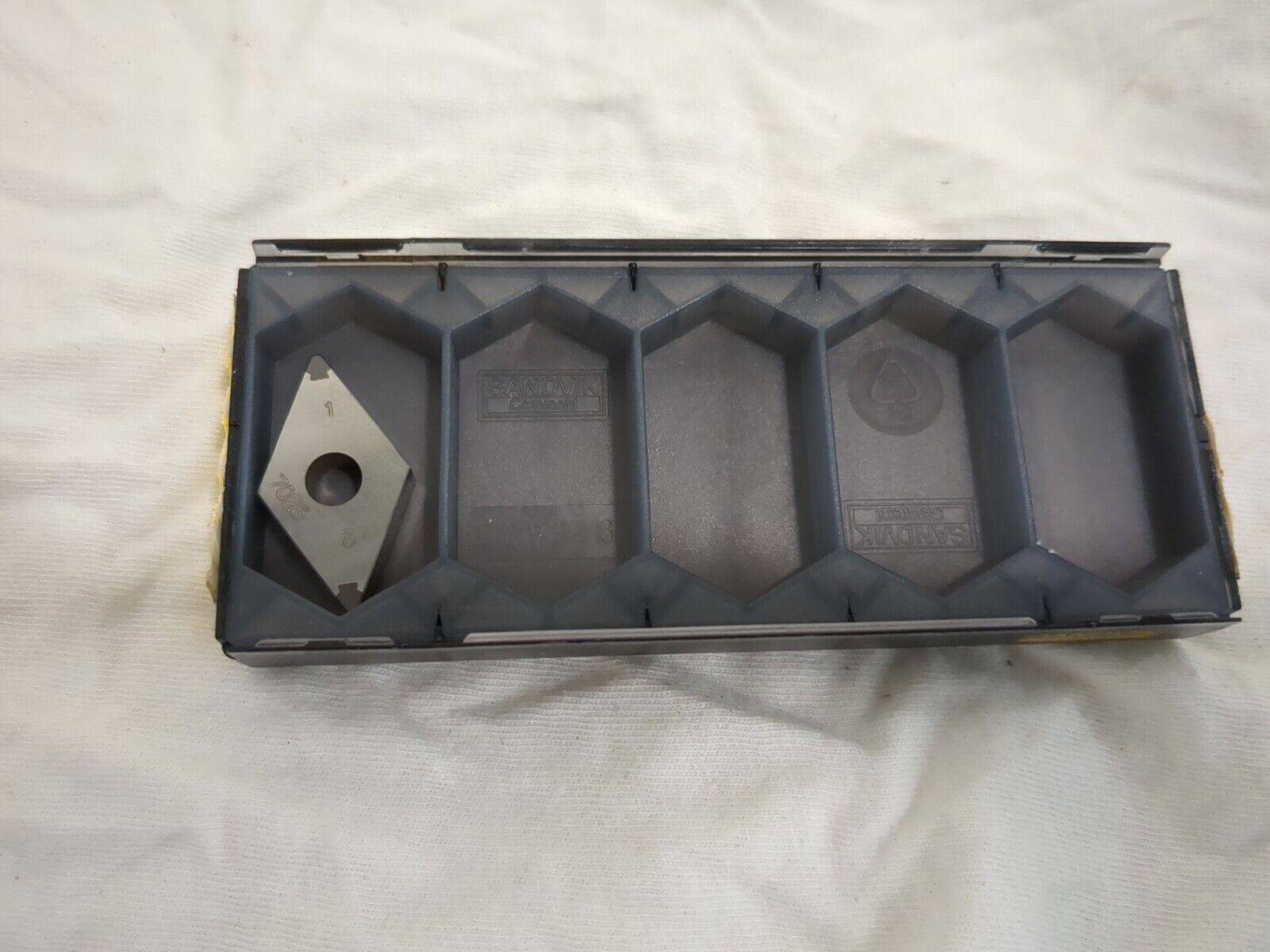

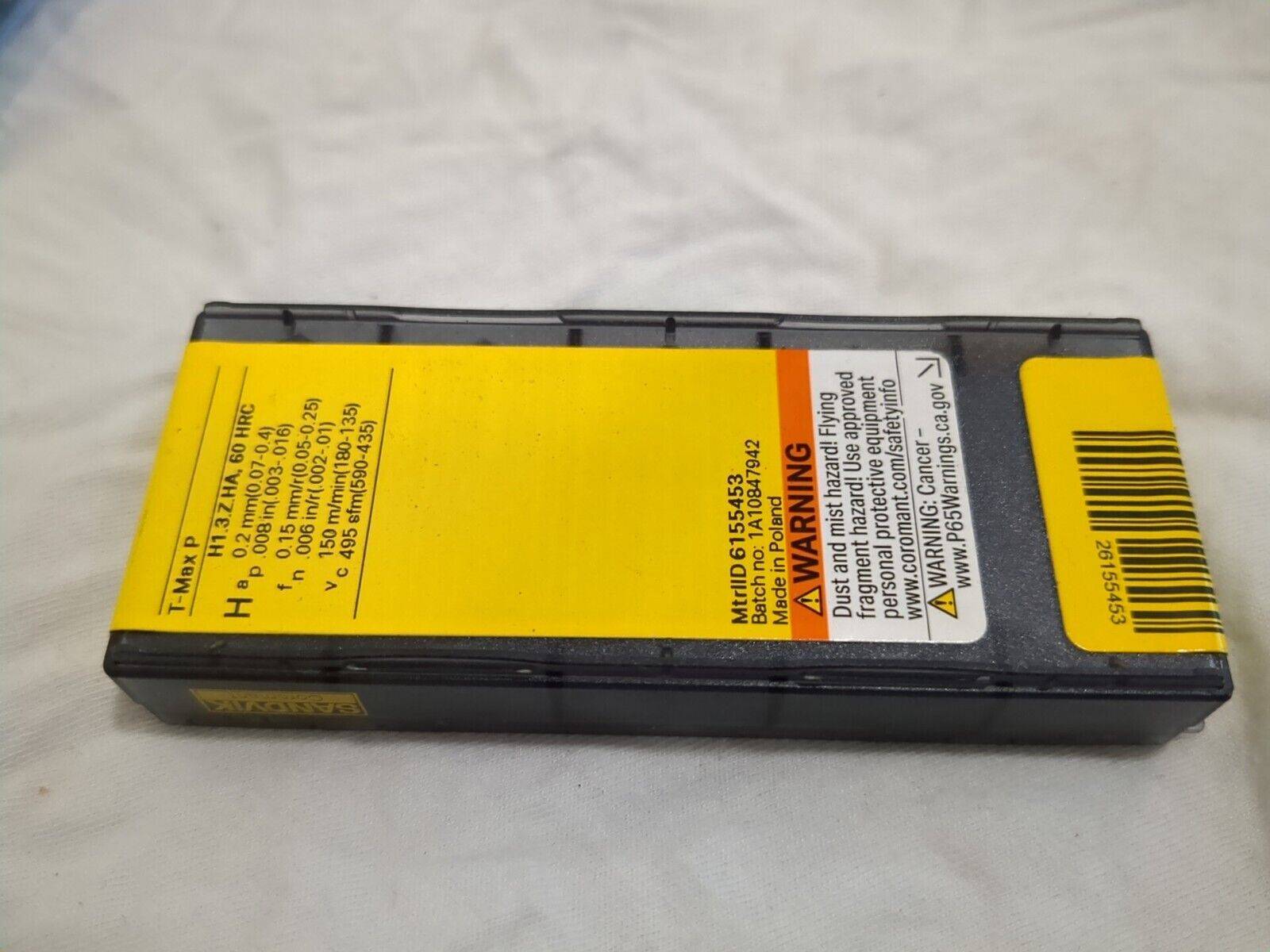

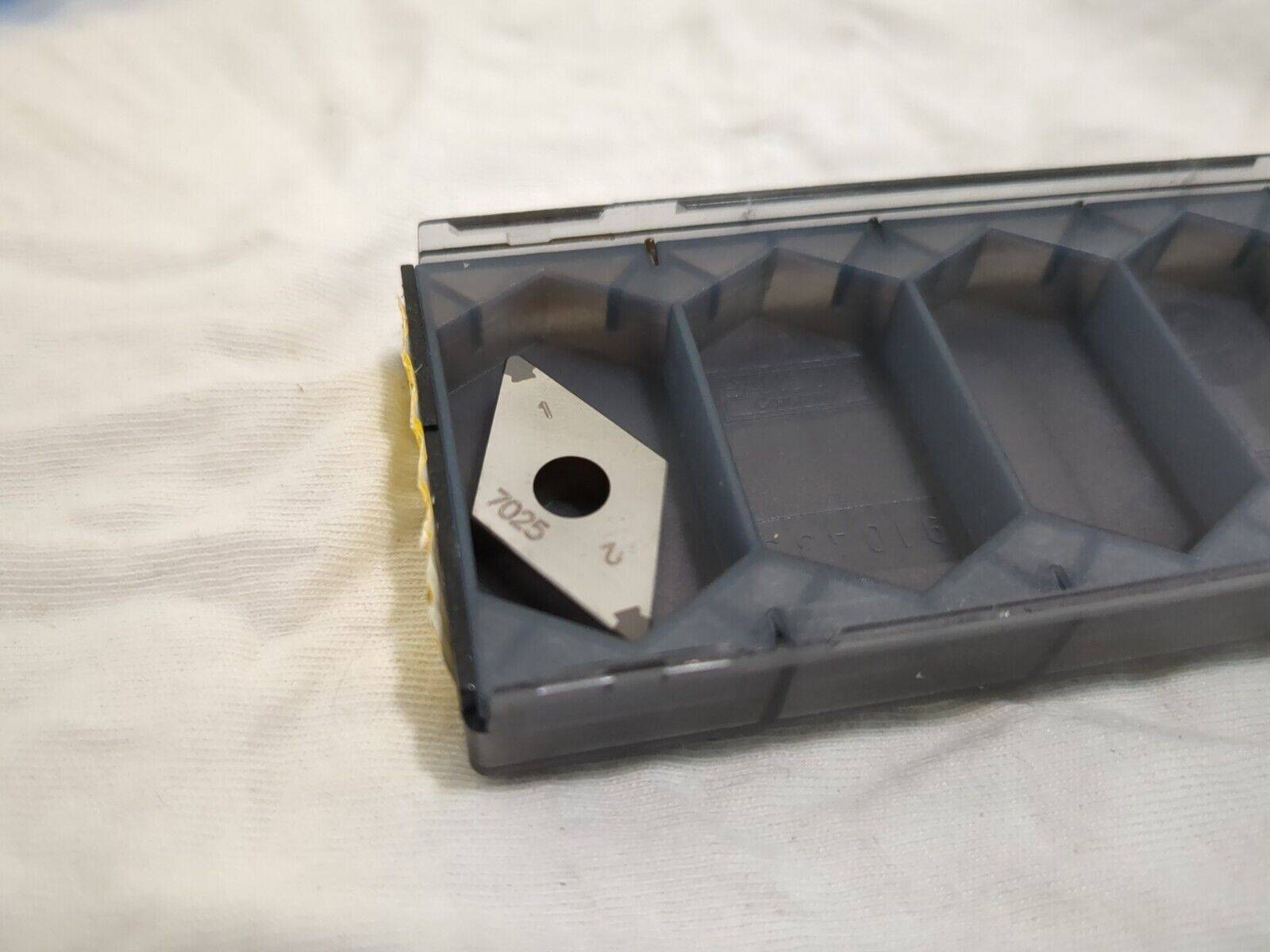

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date
Lister#
Loc
BRAND: Sandvik Coromant
MPN: 6155453
INSERT TYPE: Turning Insert
