Description
BRAND Sandvik
Item
MSRP: $400.00
| ANSI Insert Code |
DNGN452 |
| ISO Insert Code |
DNGN150708 |
| Relief Angle |
0 |
| Insert Style |
DNGN |
| Corner Radius (mm) |
0.80 |
| Corner Radius (Inch) |
1/32 |
| Corner Radius (Decimal Inch) |
0.0315 |
| Included Angle |
55 |
| Manufacturer Grade |
670 |
| Coating/Finish |
Bright/Uncoated |
| Insert Hand |
Neutral |
| Insert Thickness (Inch) |
5/16 |
| Insert Thickness |
7.94 |
| Insert Thickness (Decimal Inch) |
0.3126 |
| Series |
T-Max |
| Inscribed Circle (Decimal Inch) |
0.5000 |
| Inscribed Circle (Inch) |
1/2 |
| Inscribed Circle (mm) |
12.70 |
| Insert Material |
Ceramic |
| Insert Shape |
D – Diamond (Rhombic) 55-Deg |
| Grade Characteristics |
Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance |
Negative |
| Insert Shape Code |
D |
| Maximum Depth of Cut (mm) |
14.70 |
| Maximum Depth of Cut (Decimal Inch) |
0.5787 |
| Insert Holding Method |
Clamp |
| Clearance Code |
N |
| Tolerance Code |
G |
| Length Range (Decimal Inch) |
0.6000 – 0.6500 |
| Insert Length (Decimal Inch) |
0.6102 |
| Insert Length (mm) |
15.50 |
| Primary Workpiece Material Code |
S |
| Iso Code |
DNGN150708T01020670 |
| Manufacturers Catalog Number |
5731543 |
| Chip Breaker |
N |
| Cutting Edge Style |
Negative Land |
| ANSI Size Code |
452 |
| ISO Size Code |
150708 |
| UNSPSC Code |
23242105 |
| Insert Size Code |
452 |
| Country of Origin |
Japan |
(Description).

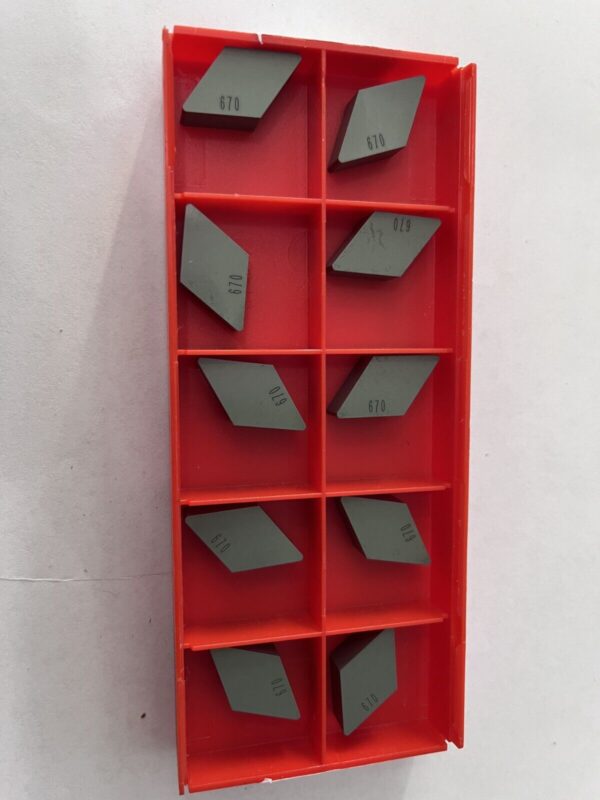

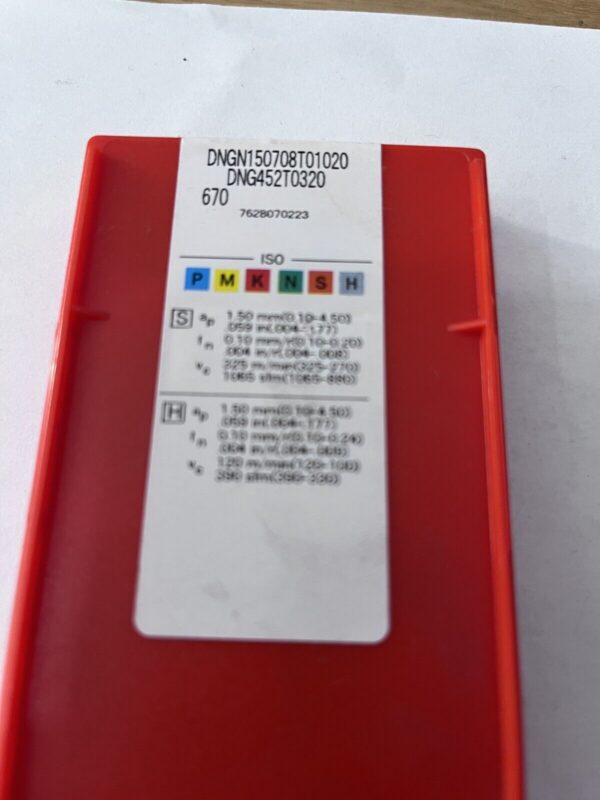

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
BRAND: Sandvik Coromant
INSERT MATERIAL: Ceramic
MPN: does not apply
INSERT TYPE: Turning Insert
