Description
SANDVIK COROMANT Turning Insert 5pk DNGA432S0835A 7025, CBN 6155453
MSRP: $900
- ANSI Insert Code DNGA432
- ISO Insert Code DNGA150408
- Relief Angle 0
- Corner Radius (Decimal Inch) 0.0315
- Corner Radius (Inch) 1/32
- Corner Radius (mm) 0.80
- Included Angle 55
- Manufacturer Grade 7025
- Coating/Finish Bright/Uncoated
- Insert Hand Neutral
- Insert Thickness (Decimal Inch) 0.1874
- Insert Thickness 4.76
- Insert Thickness (Inch) 3/16
- Series T-Max P
- Inscribed Circle (Inch) 1/2
- Inscribed Circle (Decimal Inch) 0.5000
- Inscribed Circle (mm) 12.70
- Insert Material CBN
- Insert Shape D – Diamond (Rhombic) 55-Deg
- Grade Characteristics Hardened Materials (H) – High Wear-Resistance
- Side Clearance Negative
- Insert Shape Code D
- Hole Diameter (Decimal Inch) 0.2032
- Hole Diameter (Mm) ( – 0 Decimals) 5.16
- Maximum Depth of Cut (mm) 2.10
- Maximum Depth of Cut (Decimal Inch) 0.0827
- Insert Holding Method Pin; Clamp
- Clearance Code N
- Tolerance Code G
- Length Range (Decimal Inch) 0.6000 – 0.6500
- Insert Length (Decimal Inch) 0.6102
- Insert Length (mm) 15.50
- Primary Workpiece Material Code H
- Iso Code DNGA150408S02035A7025
- Manufacturers Catalog Number 6155453
- Chip Breaker A
- Cutting Edge Style Negative Land; ER Treated
- ANSI Size Code 432
- ISO Size Code 150408
- UNSPSC Code 23242105
- Insert Style DNGA
- Insert Size Code 432
(Description).

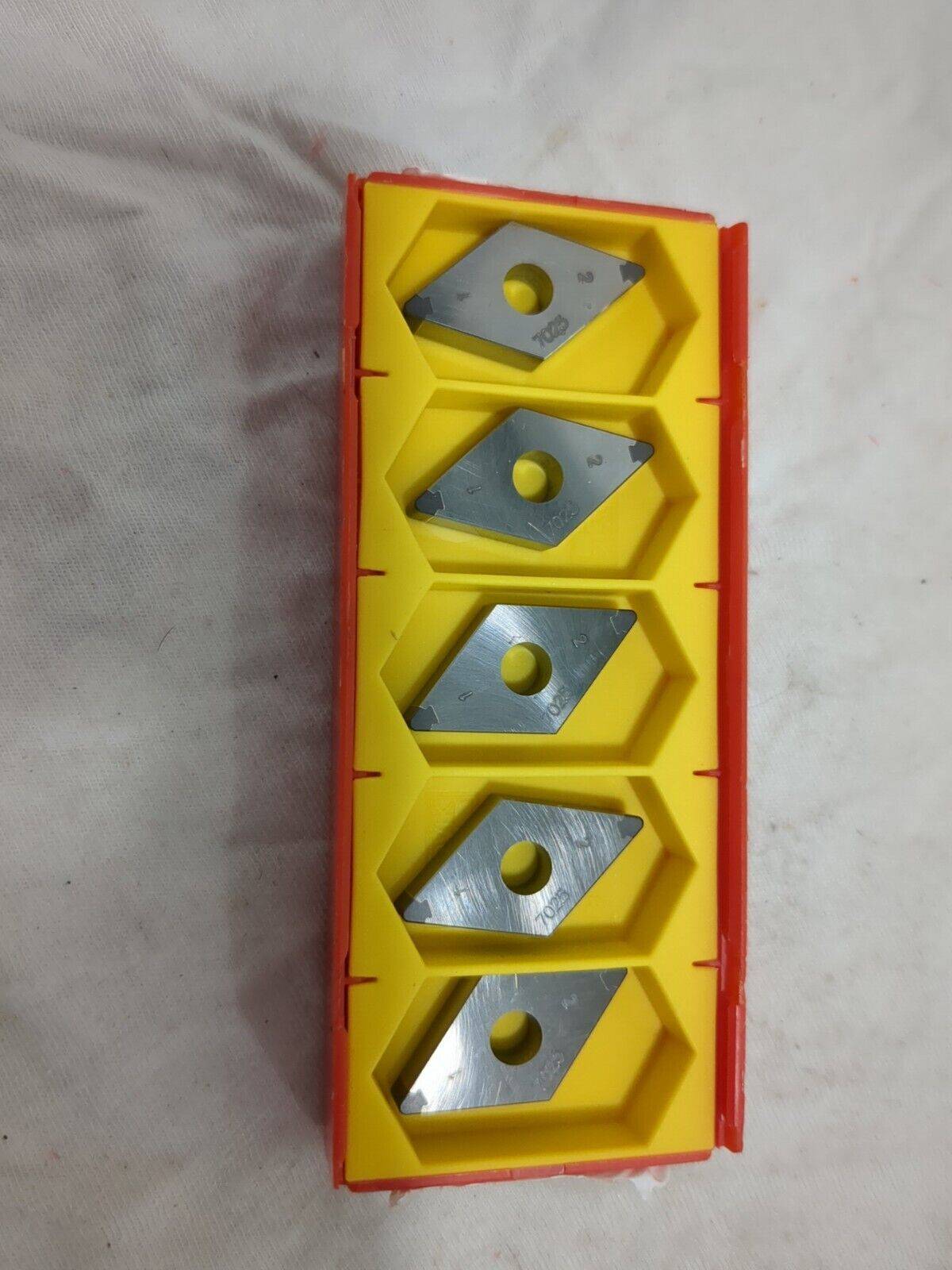

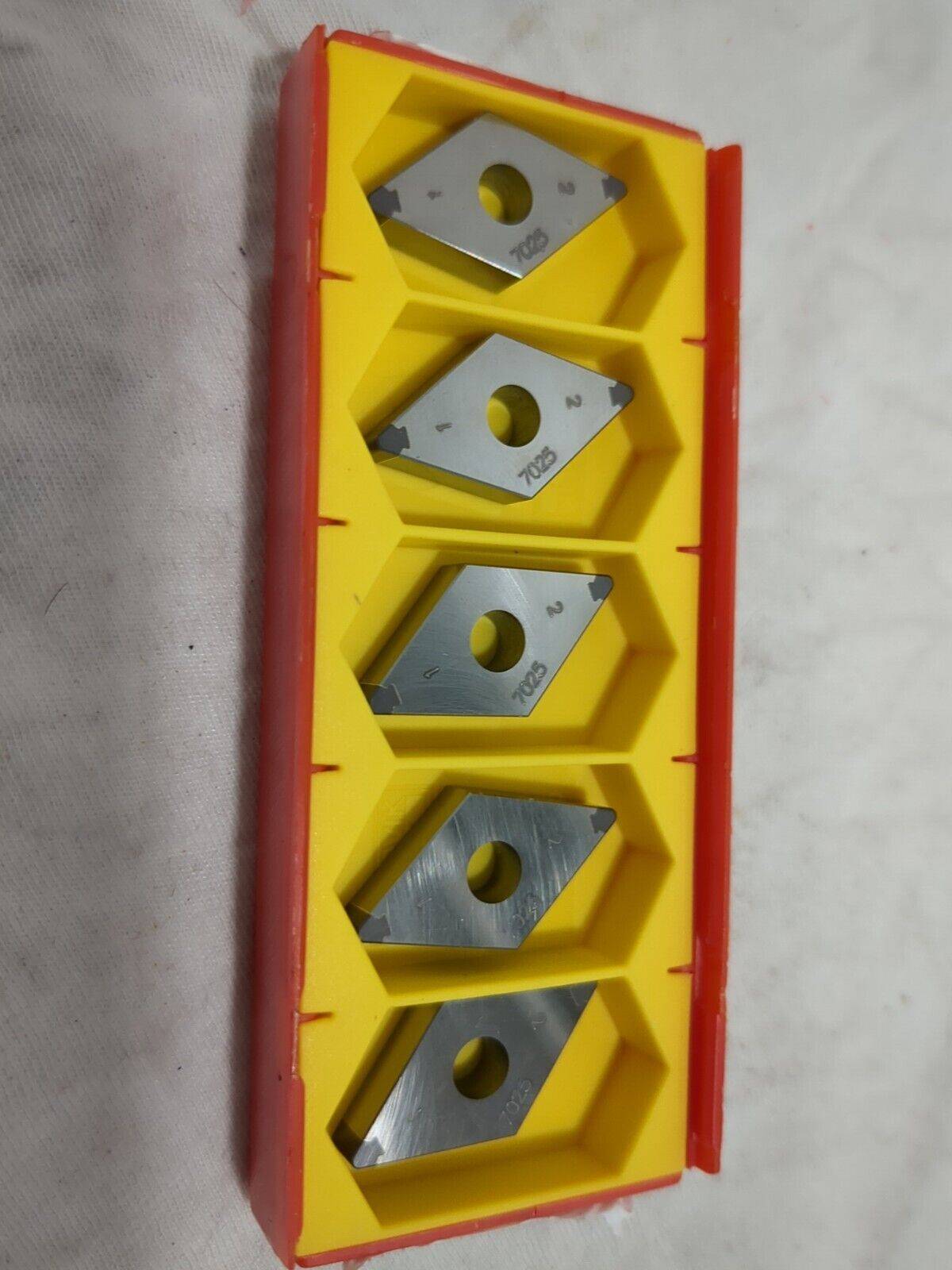

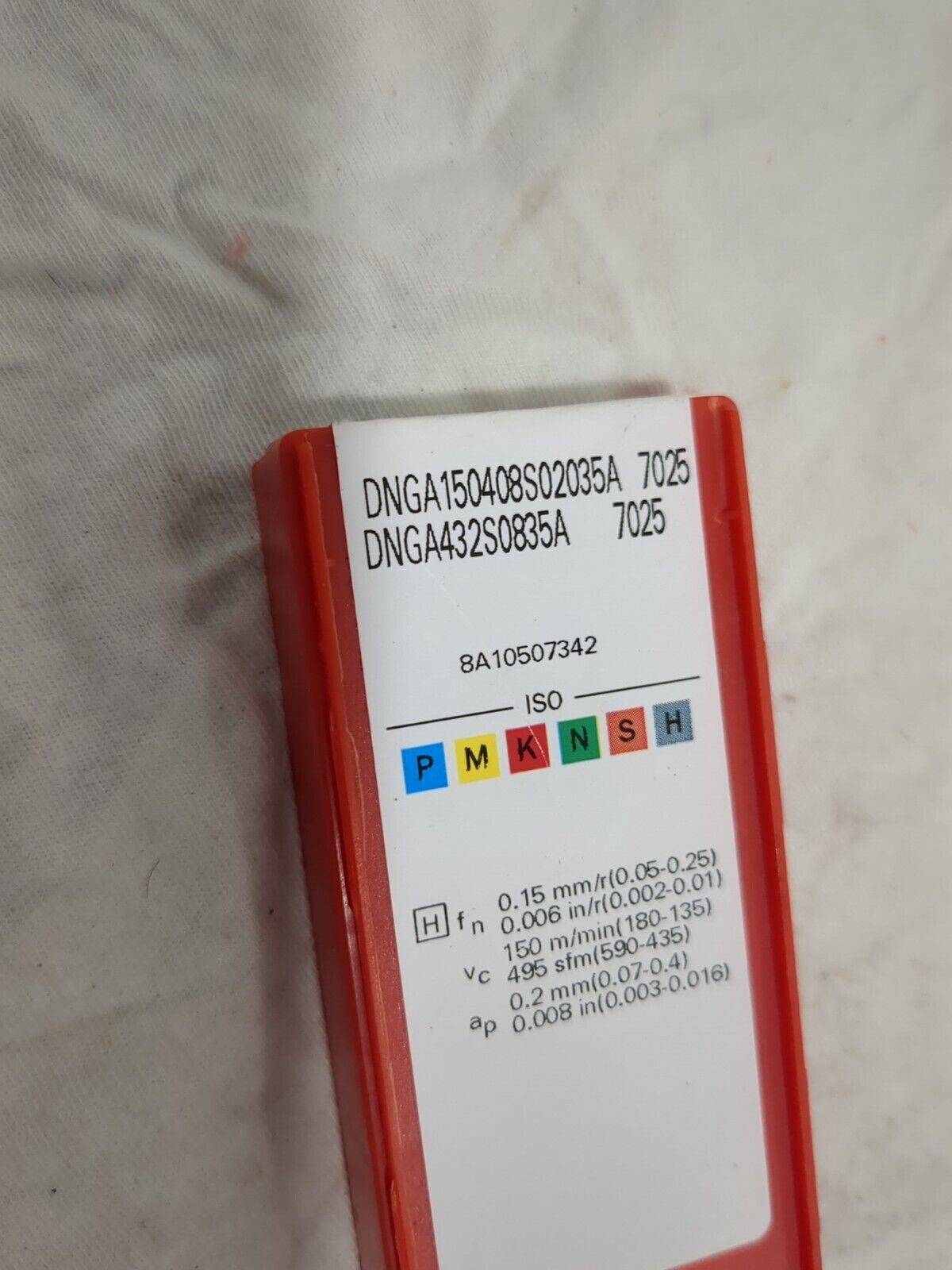

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
aug 20 24
HS6303
dragon 51
BRAND: Sandvik Coromant
UNIT TYPE: Unit
INSERT MATERIAL: CBN
MPN: 6155453
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: Unknown
UNIT QUANTITY: n/a
CALIFORNIA PROP 65 WARNING: na
