Description
SANDVIK COROMANT
TNMA431-KR 3225 Carbide Turning Insert qty 10 6868606
MSRP: $148
- Insert Style TNMA
- Insert Shape Code T
- Insert Size Code 431
- Insert Shape Triangle
- Coating/Finish TiCN; TiN; Al2O3
- Manufacturer Grade 3225
- Corner Radius (Inch) 1/64
- Corner Radius (mm) 0.40
- Corner Radius (Decimal Inch) 0.0156
- Insert Material Solid Carbide
- Hole Diameter (Mm) ( – 0 Decimals) 5.16
- Hole Diameter (Decimal Inch) 0.2030
- Maximum Depth of Cut (mm) 21.60
- Inscribed Circle (Inch) 1/2
- Inscribed Circle (mm) 12.70
- Inscribed Circle (Decimal Inch) 0.5000
- Insert Holding Method Pin; Clamp
- Insert Hand Neutral
- Insert Thickness (Inch) 3/16
- Insert Thickness 4.76
- Insert Thickness (Decimal Inch) 0.1875
- Clearance Code N
- Tolerance Code M
- Included Angle 60.0
- Relief Angle 0
- Series T-Max P
- Coating Process CVD
- Iso Code TNMA 22 04 04-KR 3225
- Cutting Direction Neutral
- Chip Breaker A
- Cutting Edge Style Rounded

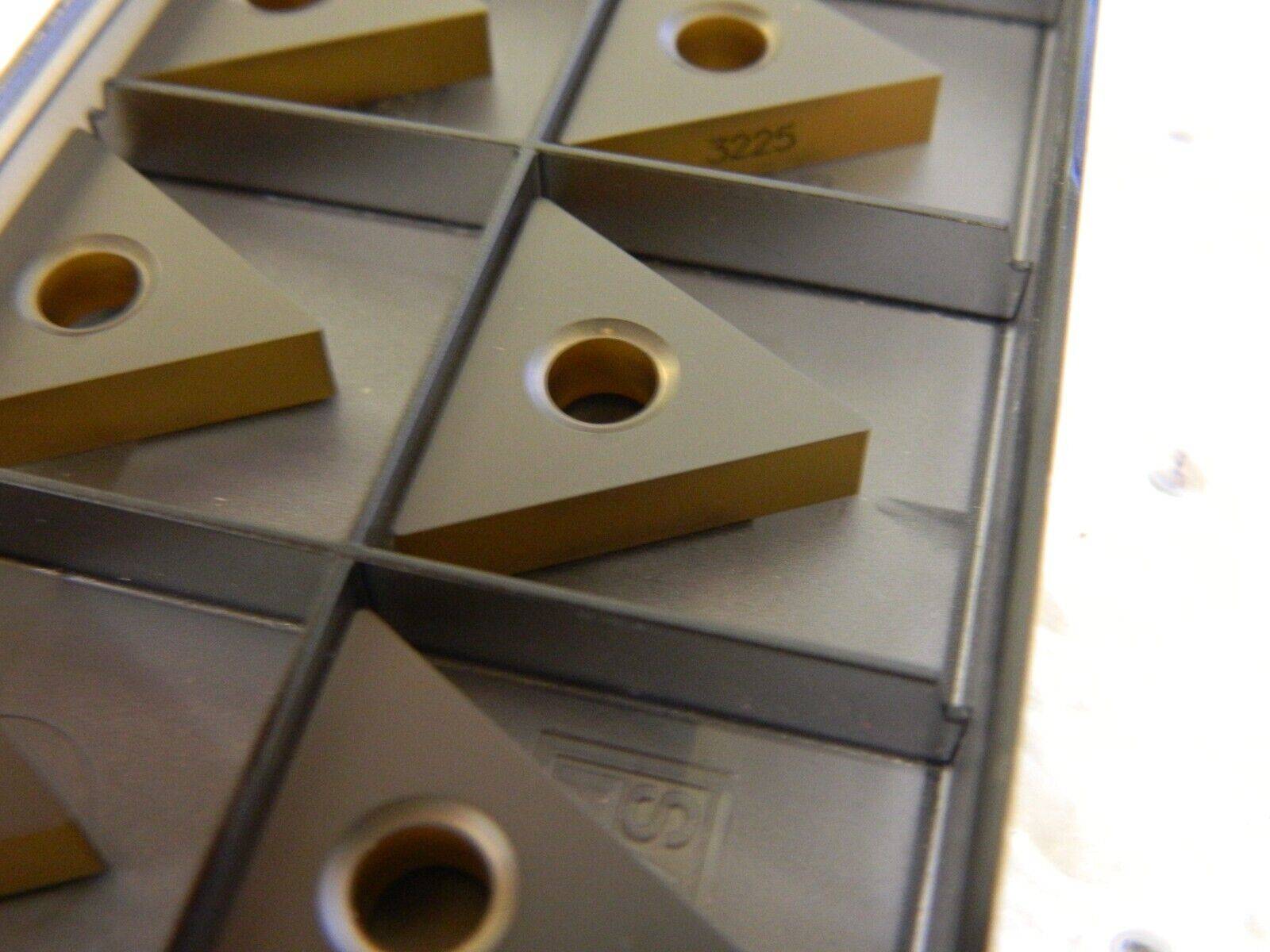

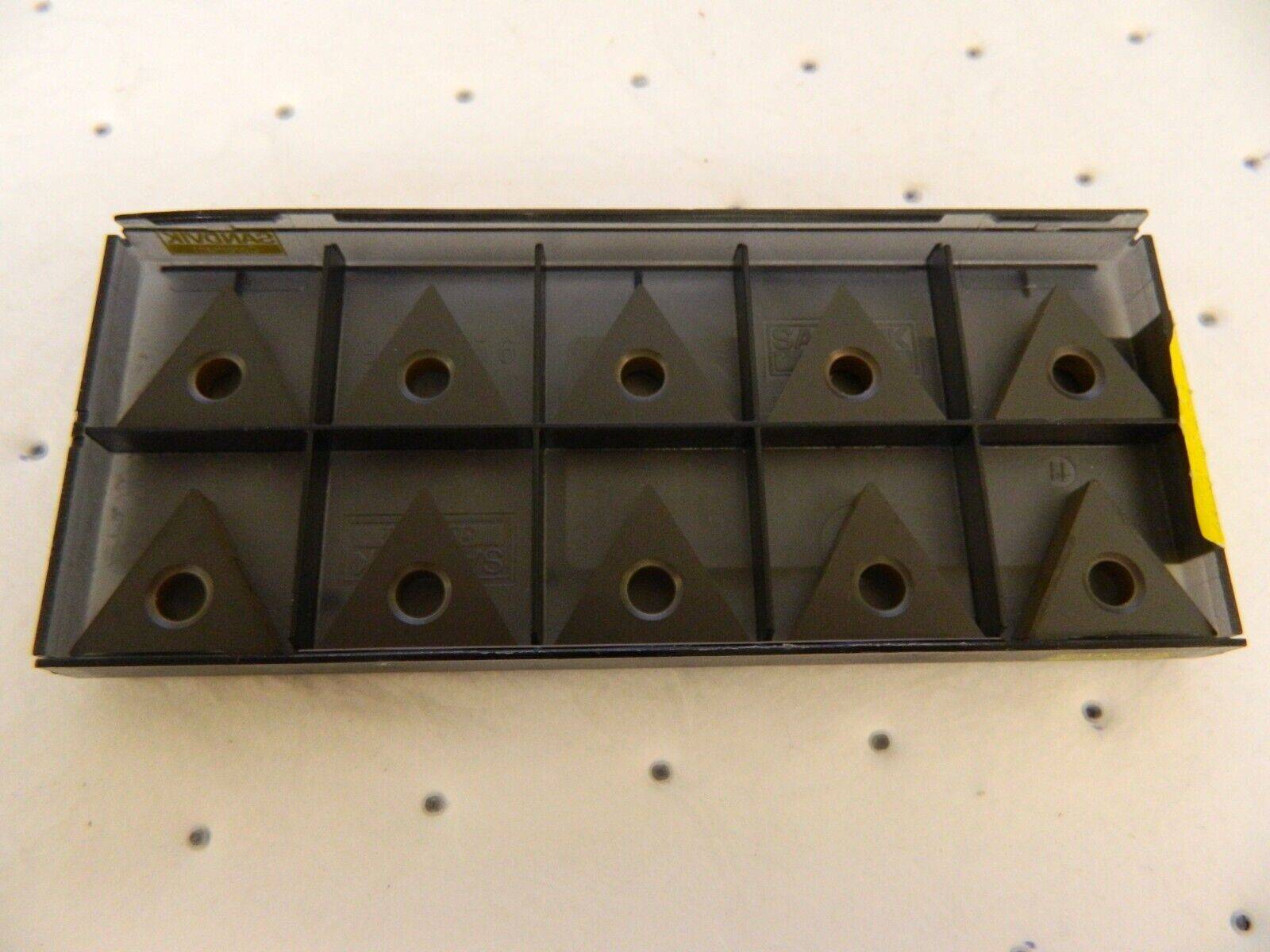

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
March 01 23
HS1289
Chuck 55
BRAND: Sandvik Coromant
MSRP: $148
INSERT MATERIAL: Carbide
MPN: 6868606
INSERT TYPE: Turning Insert
