Description
Sandvik Coromant
T-Max P Boring Bar
MSRP: $465
- Minimum Bore Diameter (mm) 44.70
- Minimum Bore Diameter (Decimal Inch) 1.7598
- Toolholder Style A-DCLN
- Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) 1.7598
- Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) 1.7598
- Tool Material Steel
- Insert Compatibility CNMG 432
- Shank Diameter (mm) 38.10
- Hand of Holder Left Hand
- Shank Diameter (Inch) 1-1/2
- Overall Length (Decimal Inch) 12.0000
- Overall Length (mm) 304.80
- Overall Length (Inch) 12
- Insert Holding Method Wedge
- Rake Negative
- Rake Angle -6.00
- Lead Angle -6
- Series T-Max P
- Insert Inscribed Circle (Inch) 1/2
- Insert Inscribed Circle (Decimal Inch) 0.5000
- Insert Inscribed Circle (mm) 12.70
- Multi-use Tool Yes
- Back of Bar to Cutting Edge (Decimal Inch) 12.0000
- Back of Bar to Cutting Edge (mm) 304.80
- Center to Cutting Edge (Decimal Inch) 0.8900
- Center to Cutting Edge (mm) 22.61
- Number of Inserts Used on Toolholder 1
- Neck Diameter (Decimal Inch) 1.5000
- UNSPSC Code 23241601
- Neck Diameter (Inch) 1-1/2
- Insert Thickness (Decimal Inch) 0.1875
- Insert Thickness (Inch) 3/16
- Manufacturers Catalog Number A24T-DCLNL 4
- Coolant Through Yes
*NEW-OPEN BOX. Boring bar is in excellent condition, with no signs of previous use or wear. Open package for inspection and photos only. Comes as shown in photos and includes only what you see in photos, please review them all carefully. WARRANTY NOT INCLUDED. SOLD AS IS.

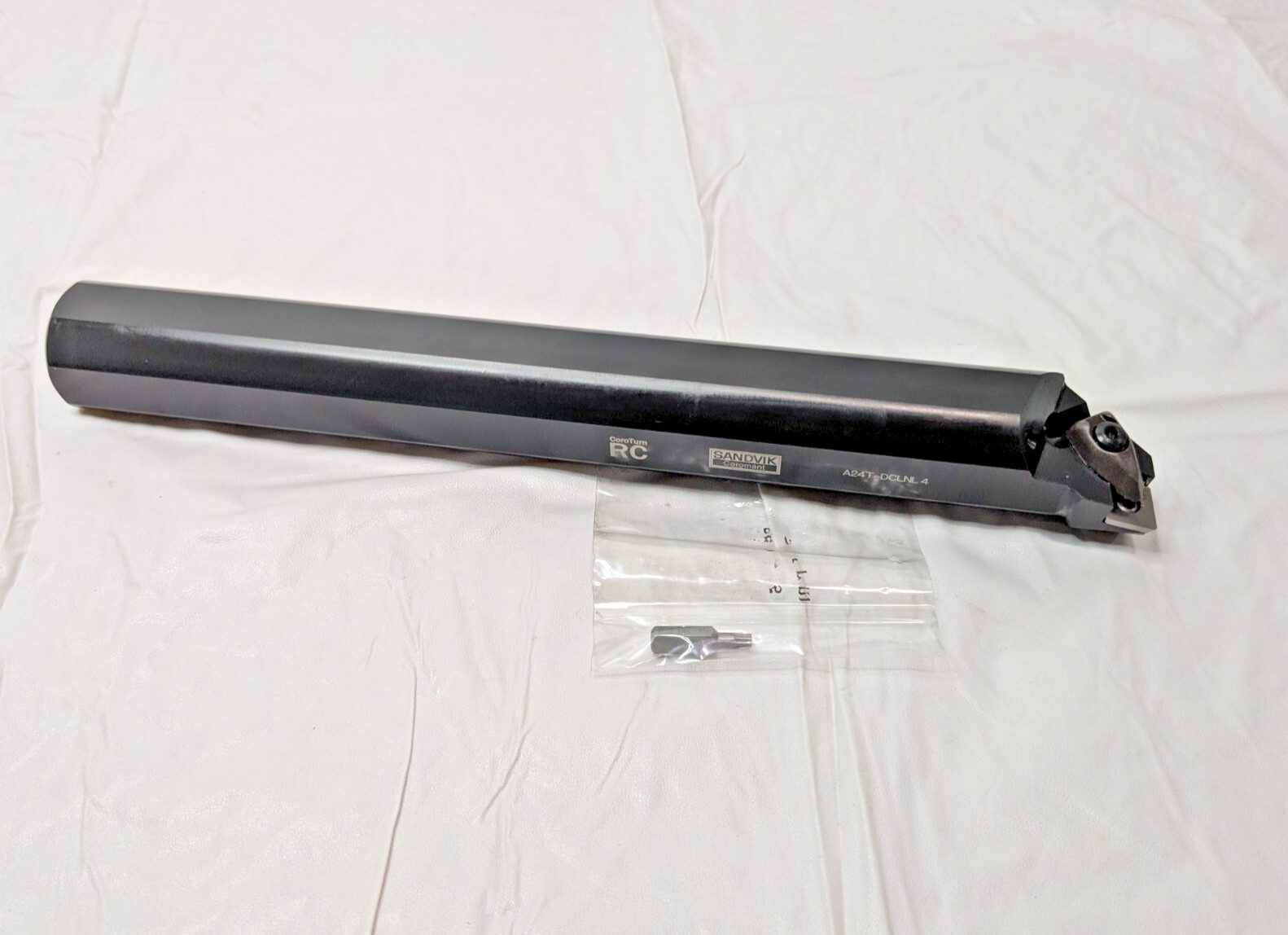

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
May 16 2025
VM14118
Cab XC Bin 17
BRAND: Sandvik Coromant
MSRP: $465
MODEL: A24T-DCLNL 4
TURNING TOOL TYPE: Boring Bar
MPN: 5727626
COUNTRY/REGION OF MANUFACTURE: Sweden
LOCATION: VM14118CabXCBin17
