Description
SANDVIK COROMANT
Solid Carbide Grooving Insert
MSRP: $520
- Insert Style N123
- Insert Size H
- Insert Material Solid Carbide
- Manufacturer Grade 1125
- Cutting Width (Decimal Inch) 0.1559
- Cutting Width (mm) 3.96
- Maximum Depth of Cut (Decimal Inch) 0.9606
- Maximum Depth of Cut (mm) 24.40
- Cutting Height (mm) 4.35
- Insert Hand Neutral
- Maximum Depth Of Cut Range (Decimal Inch) 0.3000 to 1.0000
- Cutting Height (Decimal Inch) 0.1713
- Corner Radius (mm) 0.80
- Corner Radius (Decimal Inch) 0.0315
- Maximum Depth Of Cut Range (mm) 20.00+
- Rake Neutral
- Multi-use Tool Yes
- Series CoroCut 1-2
- Coating Process PVD
- Rake Angle 7.00
- Overall Length (Decimal Inch) 0.9862
- Overall Length (mm) 25.05
- Iso Code N123H2-0396-0008-GF 1125
- Maximum Corner Radius (Decimal Inch) 0.0335
- Minimum Corner Radius (Decimal Inch) 0.0295
- Manufacturers Catalog Number N123H2-0396-0008-GF 1125
- Insert Thickness (Decimal Inch) 0.1713
- Chip Breaker GF
- Insert Seat Size H
- Overall Width 3.96
- Overall Width (Decimal Inch – 4 Decimals) 0.1559
- Coating/Finish TiAlN

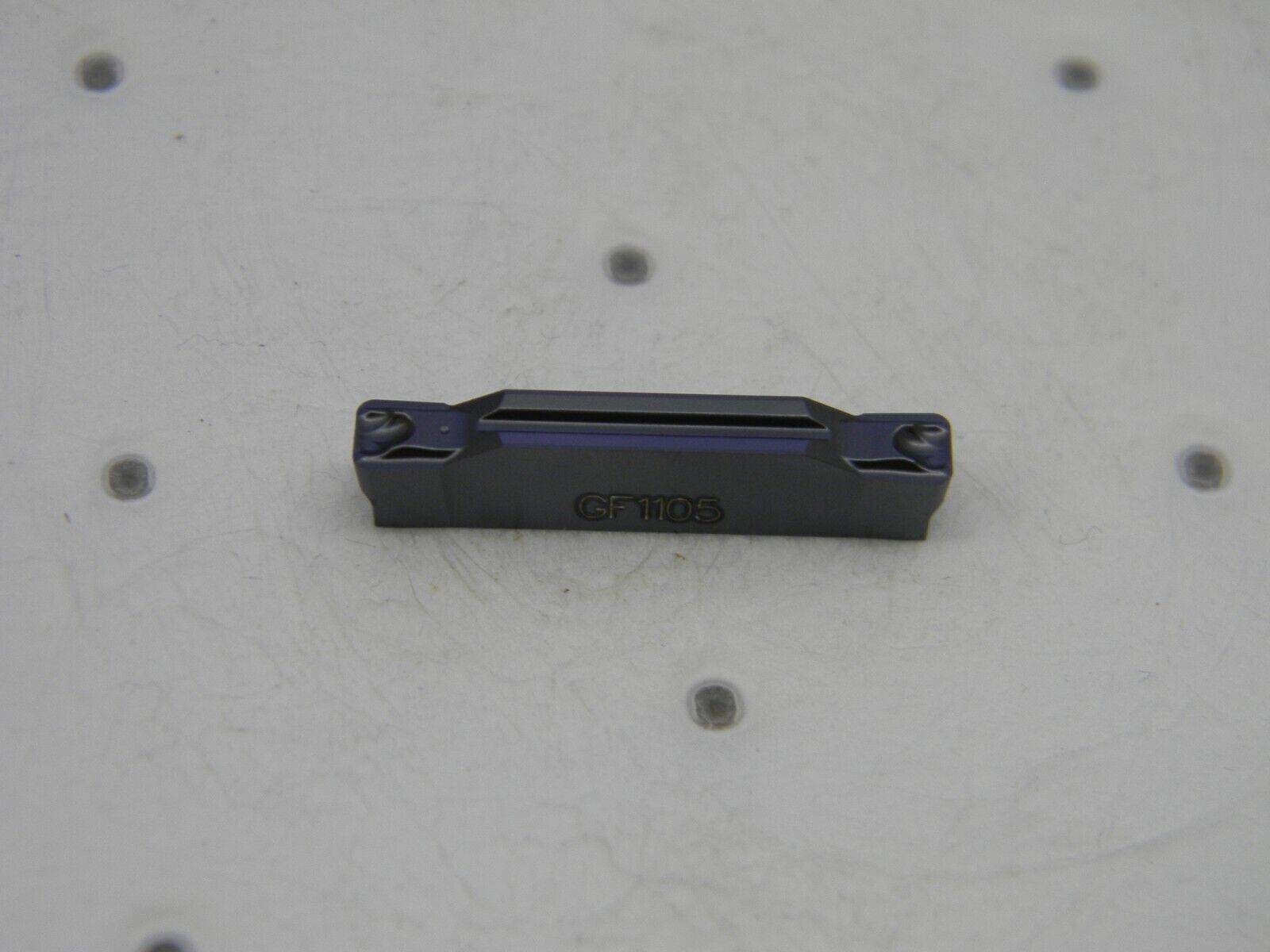

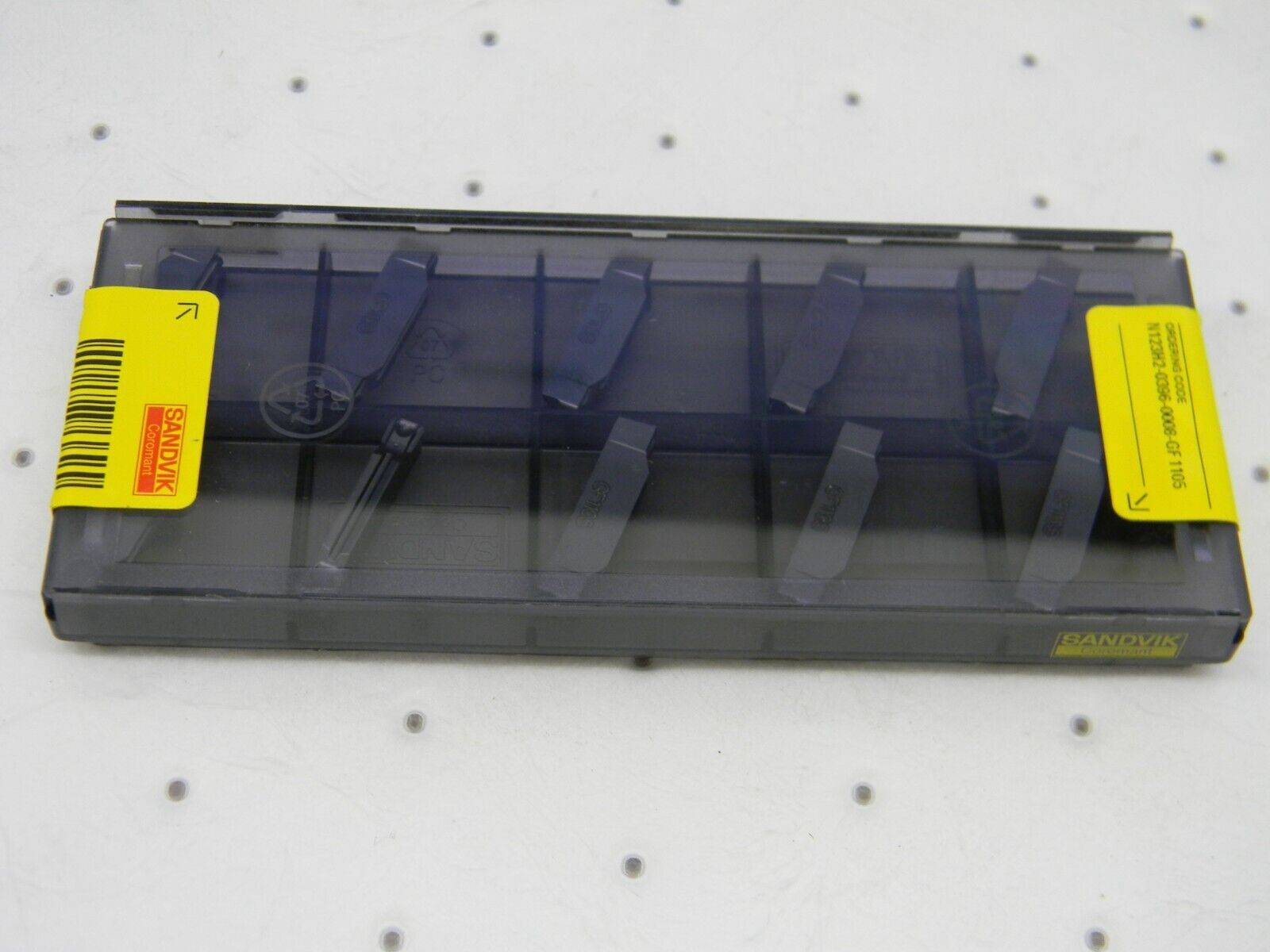

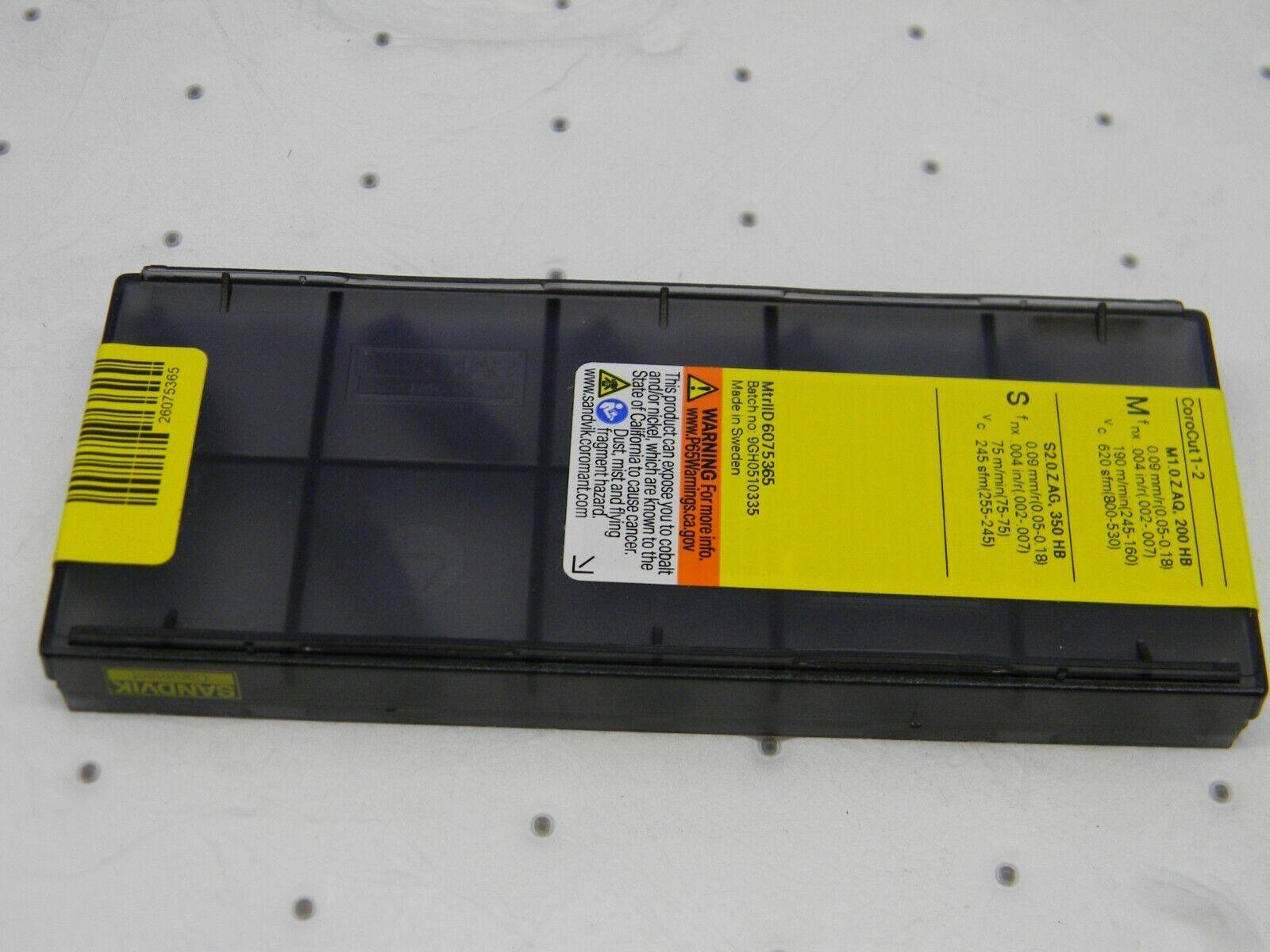

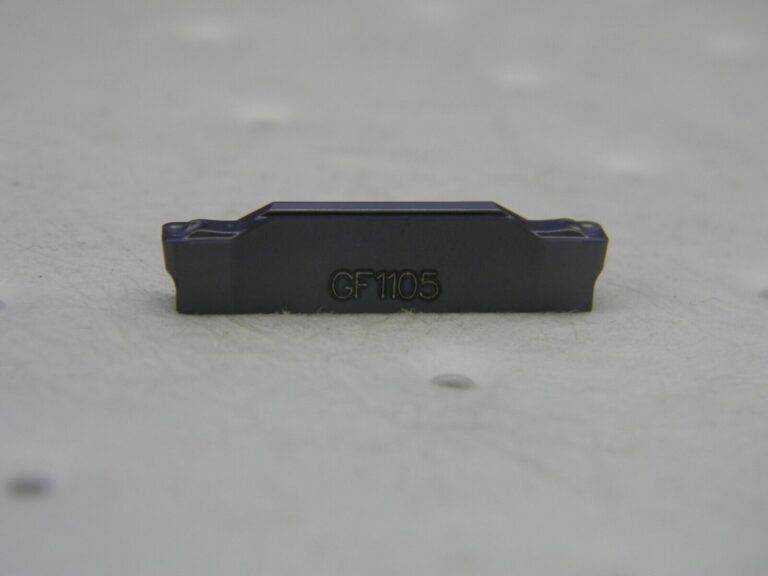

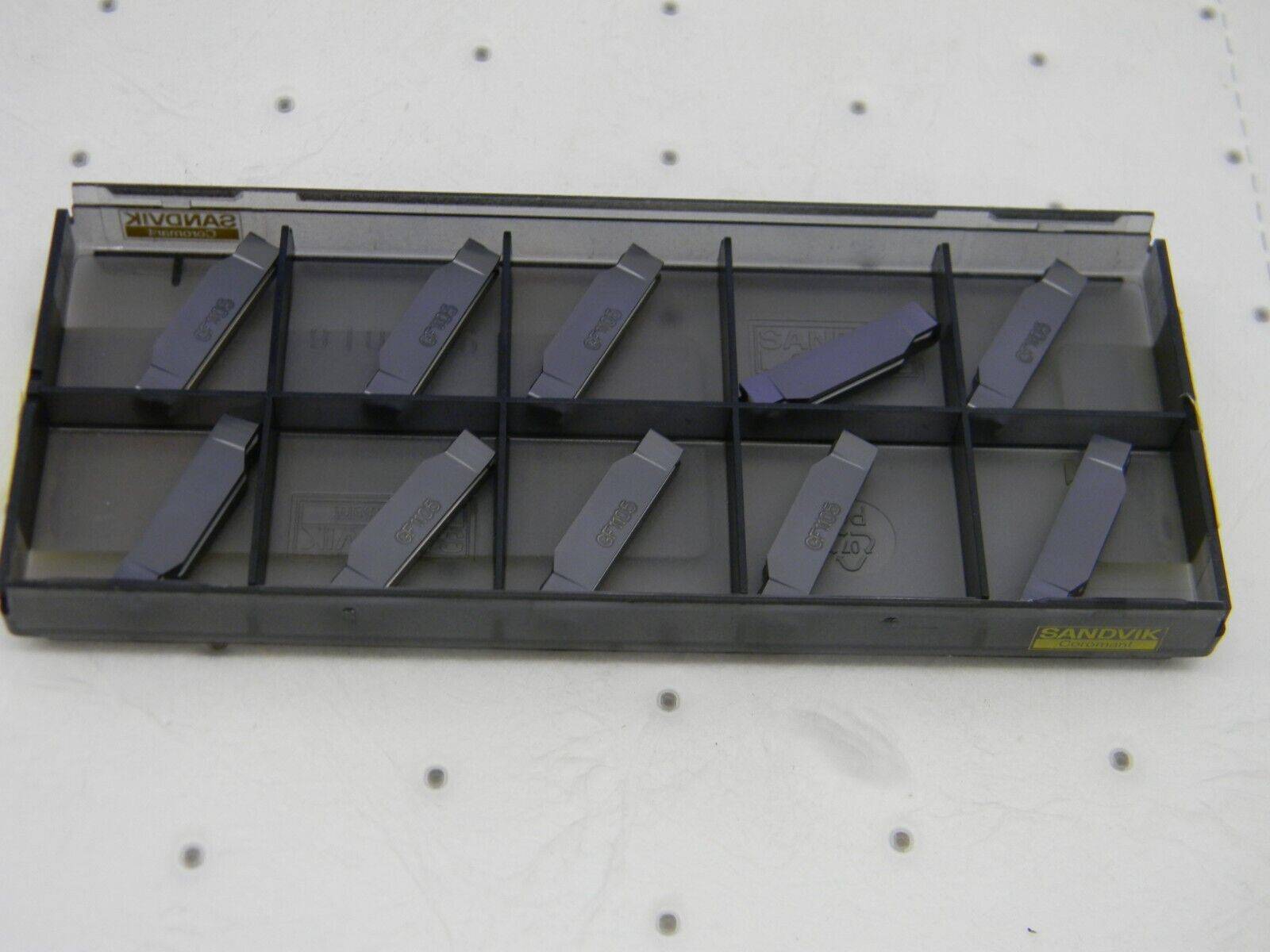

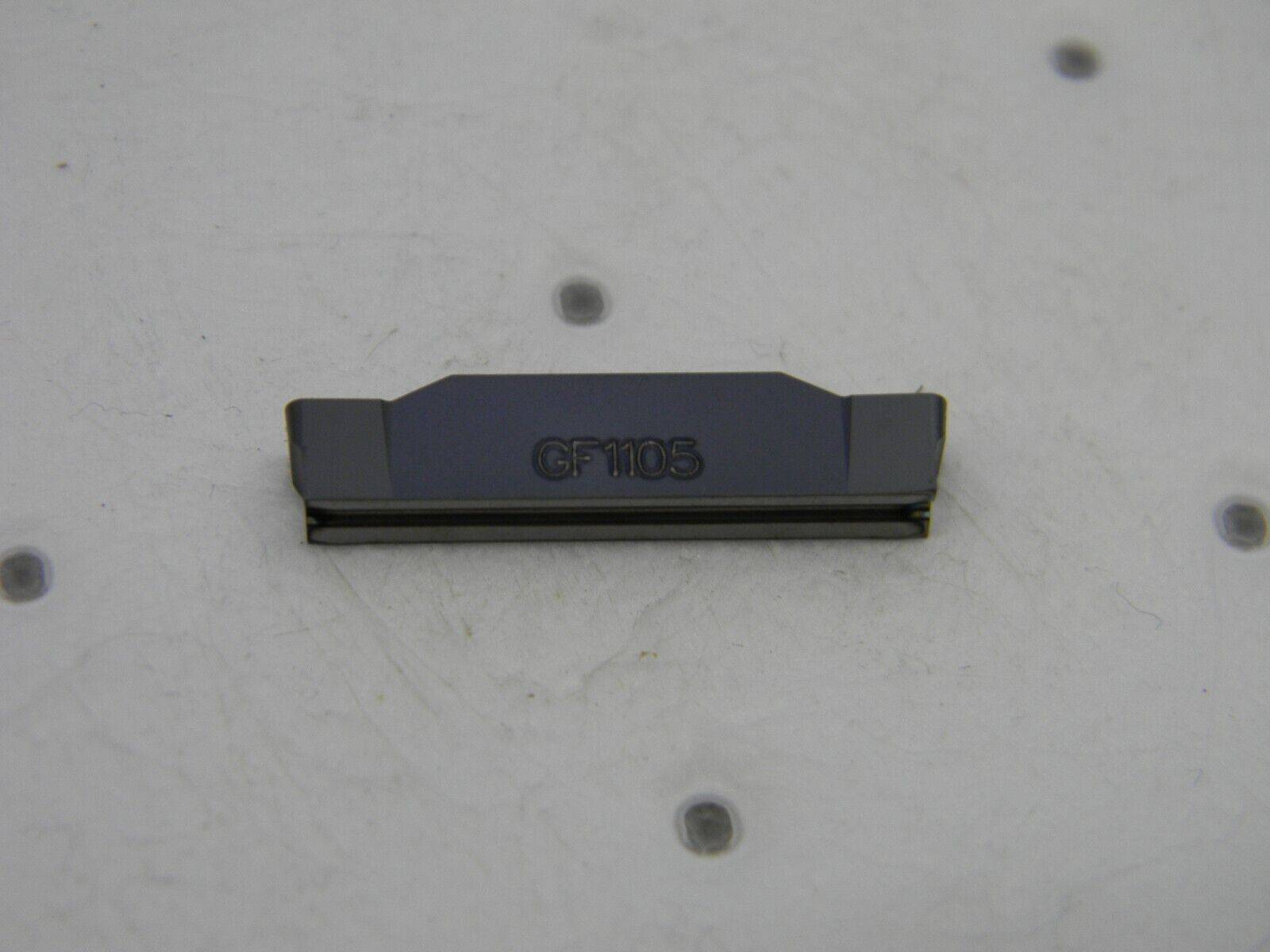

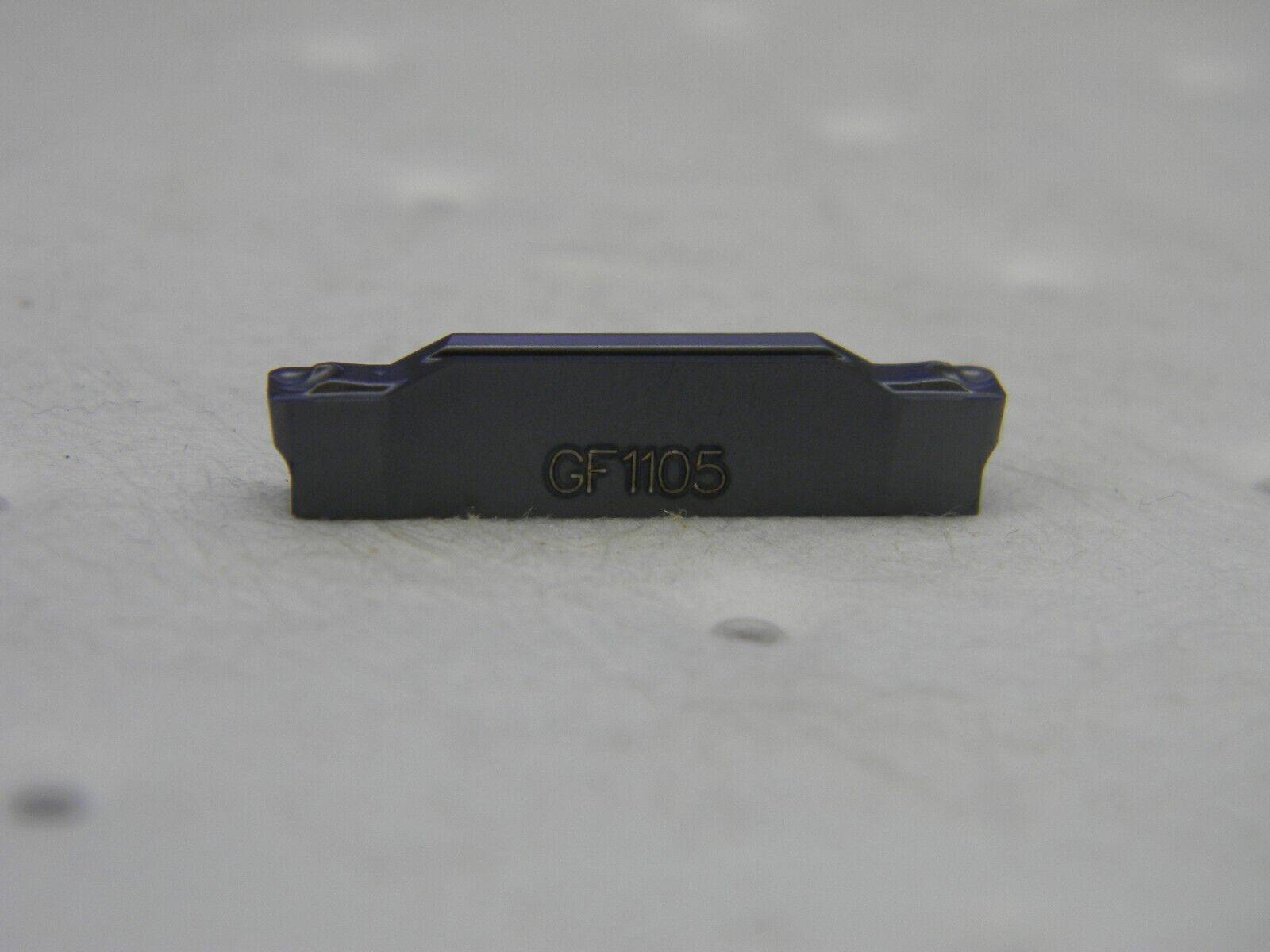

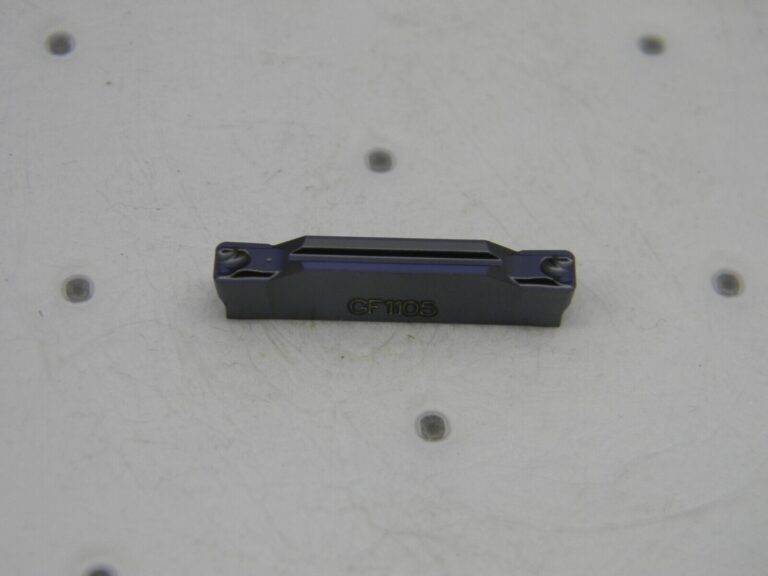

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Nov 22 22
HS034
Marley 76
BRAND: Sandvik Coromant
MSRP: $520
INSERT MATERIAL: Carbide
MPN: 5736240
INSERT TYPE: Grooving Insert
