Description
MSRP: $80.0
Model: 5749871
Description:
Insert Style SNMG
Insert Size 433
Material Carbide
Inscribed Circle (mm) 12.70
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1874
Thickness (mm) 4.76
Corner Radius (Inch) 3/64
Corner Radius (mm) 1.20
Corner Radius (Decimal Inch) 0.0472
Manufacturer’s Grade H13A
Coating Uncoated
Chip Breaker QM
Hole Diameter (mm) 5.16
Hole Diameter (Decimal Inch) 0.2032
ISO Number SNMG120412QMH13A
Relief Angle 0
Manufacturers Catalog Number 5749871
Primary Workpiece Material K; N; S
Included Angle 90
Cutting Direction Neutral
Insert Hand Neutral
Series T-Max P
Maximum Depth of Cut (mm) 11.50
Maximum Depth of Cut (Decimal Inch) 0.4528
Insert Holding Method Pin & Clamp
Shape Square

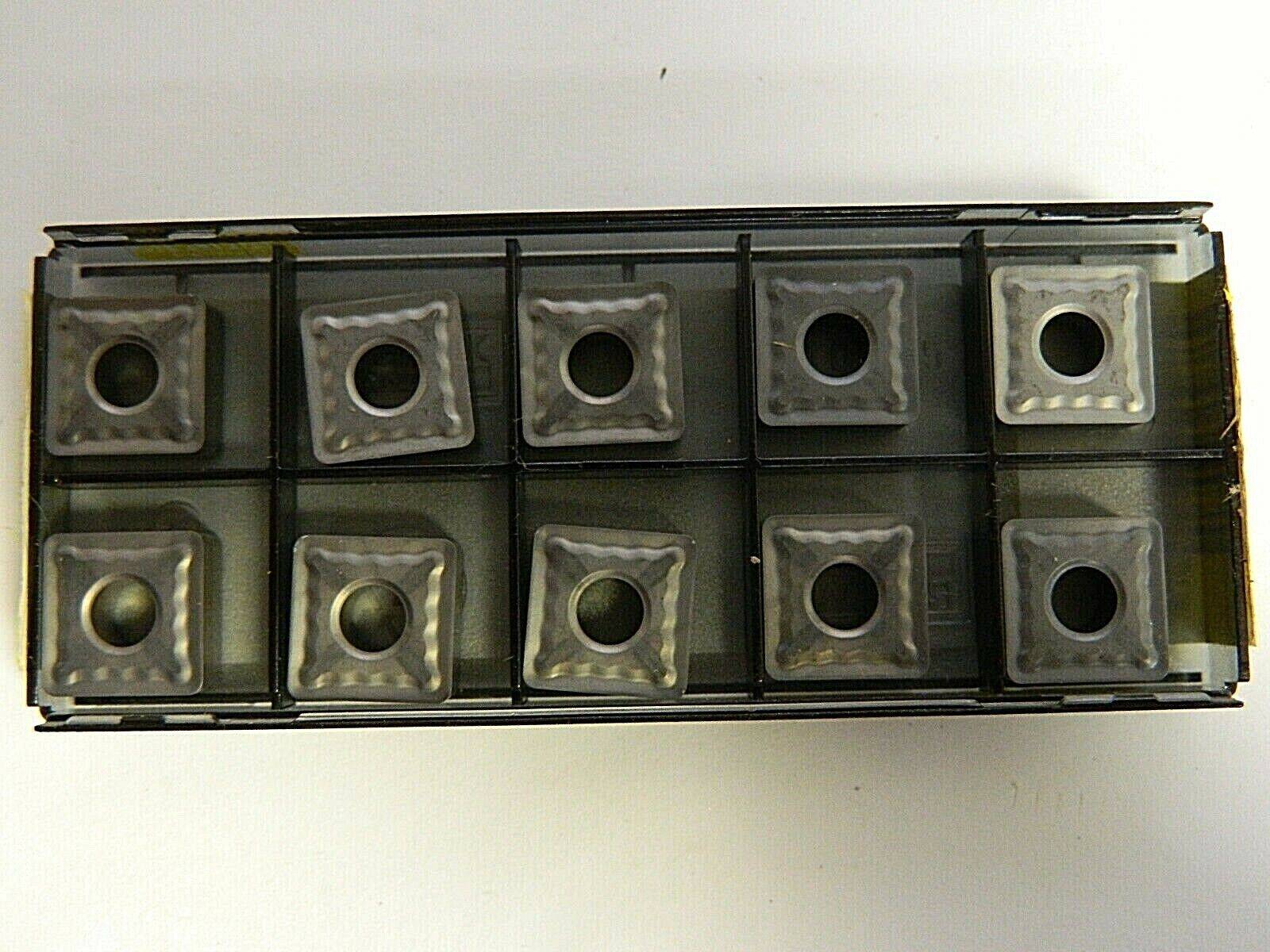

This listing is for One Pack of 10 that is in the picture as well as described. Please ask any questions prior to buying!
Cristy February 11 2021
CM 9522
Chuck 22
MODEL: 5749871
MPN: Does Not Apply
BRAND: Sandvik Coromant
