Description
SANDVIK COROMANT
Modular Turning & Profiling Head: Size C6 RH 5729606
MSRP: $370
- System Size C6
- Maximum Hole Depth (Decimal Inch) 2.5591
- Maximum Hole Depth (mm) 65.00
- Minimum Hole Diameter (Decimal Inch) 4.3307
- Minimum Hole Diameter (mm) 110.00
- Cutting Direction Right Hand
- Compatible Insert Style CNMG 120408
- Internal or External Internal or External
- Insert Holding Method Wedge
- Center to Cutting Edge (mm) 45.00
- Center to Cutting Edge (Decimal Inch) 1.7717
- Series T-Max P
- Neck Diameter (mm) 63.00
- Neck Diameter (Decimal Inch) 2.4803
- Axial Rake Angle -6.00
- Radial Rake Angle (Degrees) -6
- Head Connection Size 20
- Complete Insert Compatibility CNMG 120408
- Coolant Through Yes
- Head Length Projection (Decimal Inch) 2.5591
- Head Length Projection (mm) 65.00

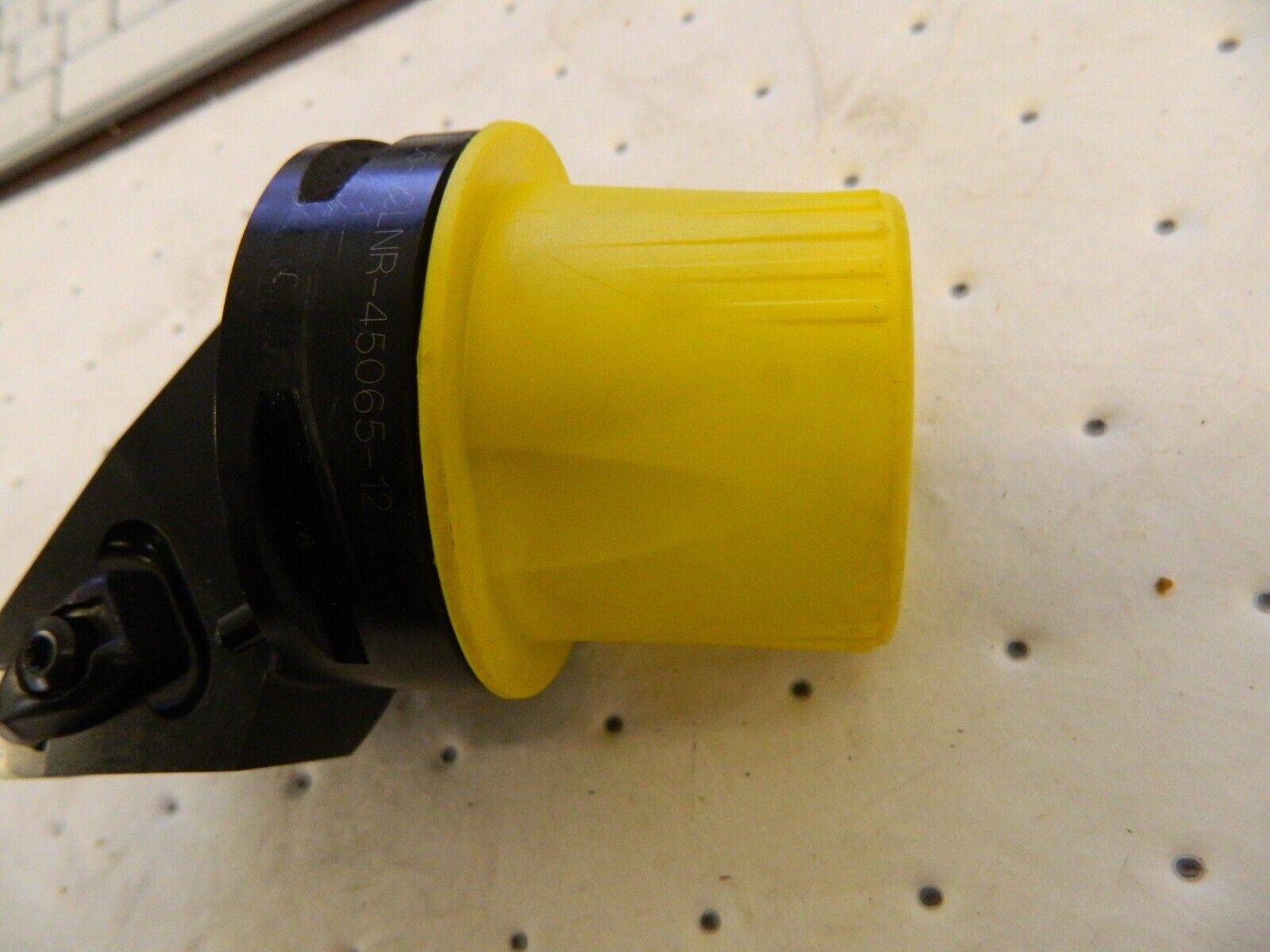

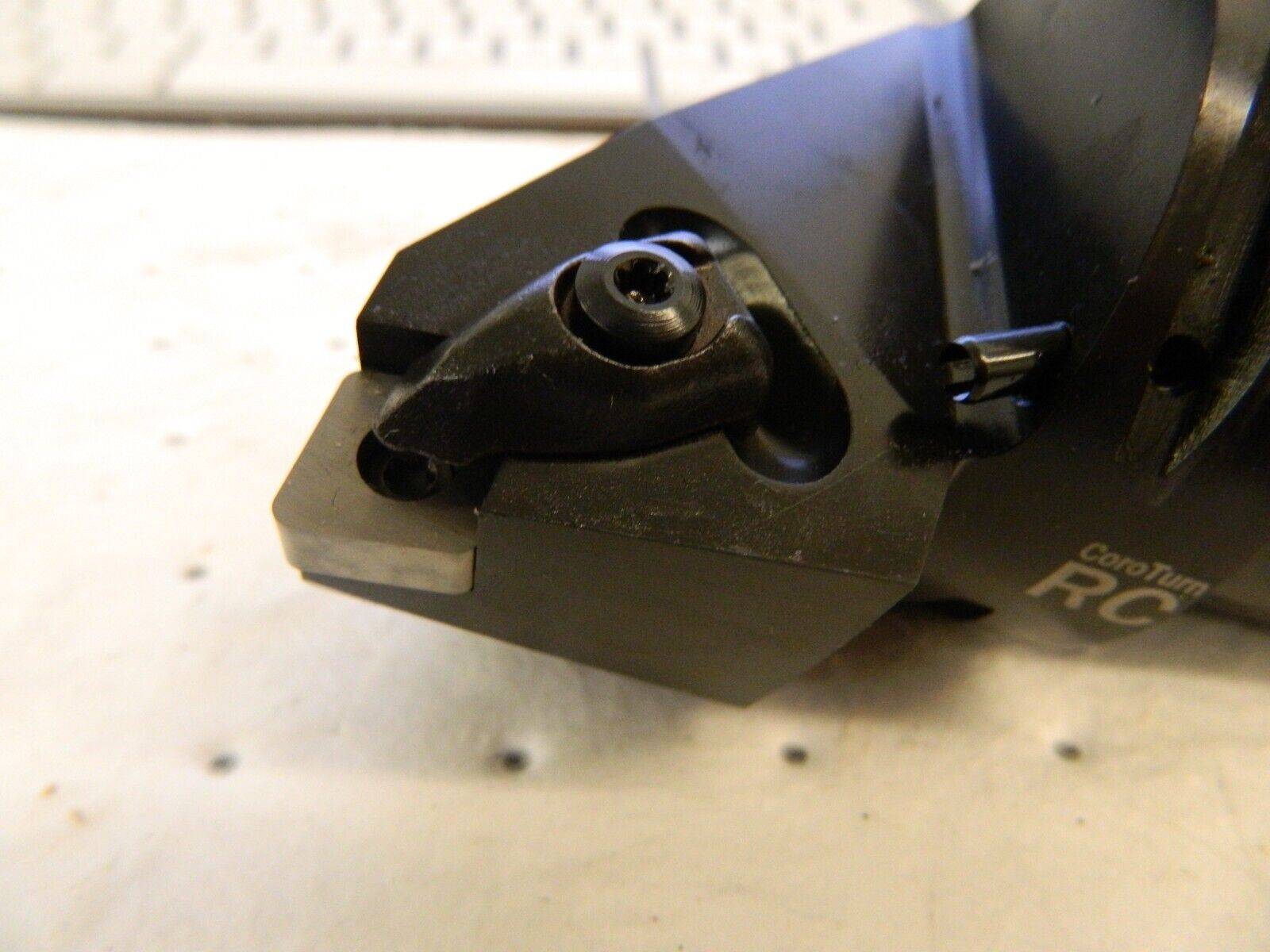

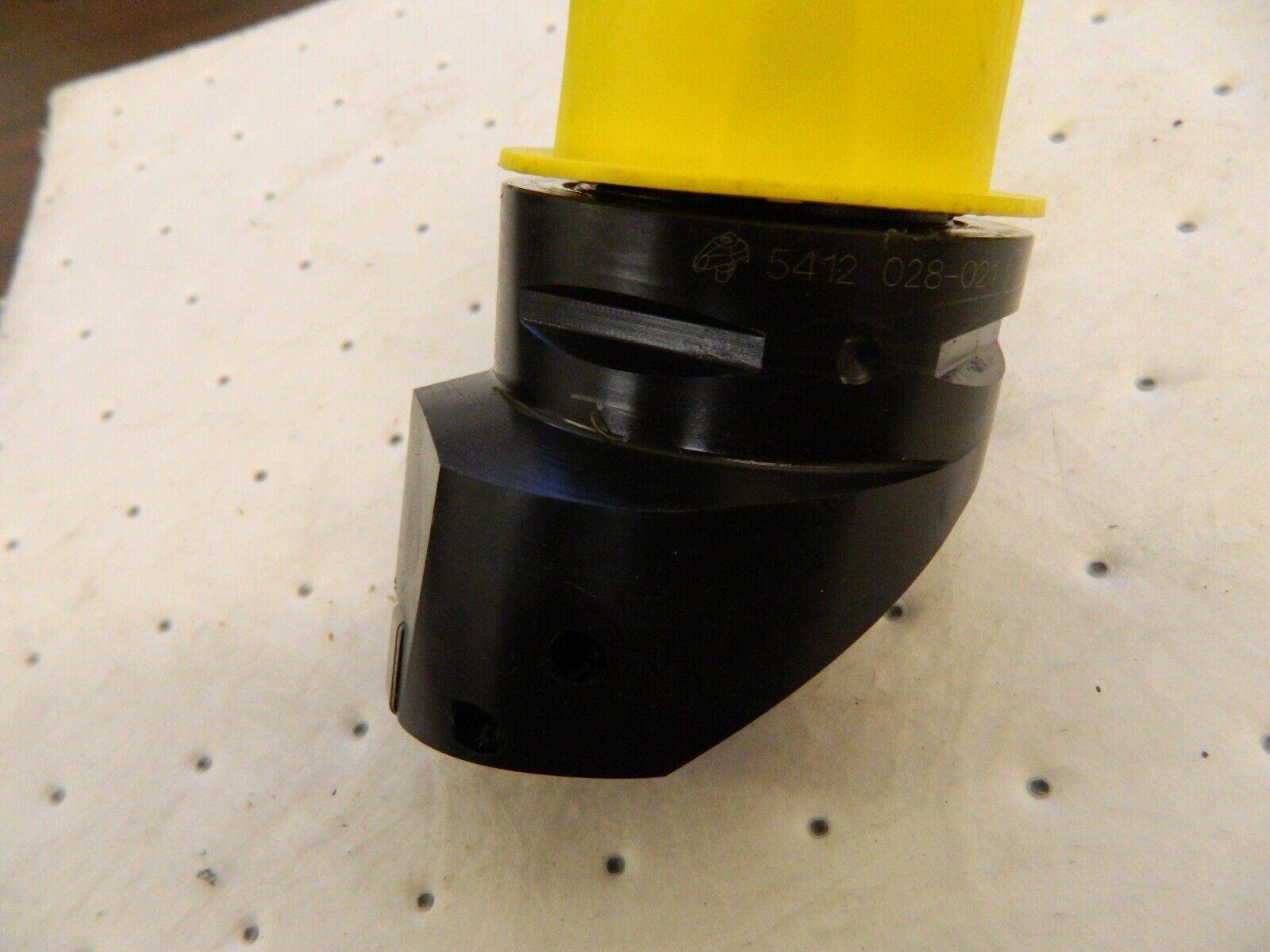

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
May 09 23
HS2102
Star 16
BRAND: Sandvik Coromant
MSRP: $370
MPN: 5729606
