Description
BRAND Sandvik
Item
MSRP: $700.00
| Insert Style |
328 |
| Insert Size |
13 |
| Insert Material |
Solid Carbide |
| Insert Shape |
Triangle |
| Manufacturer Grade |
1025 |
| Corner Radius (Decimal Inch) |
0.0039 |
| Number Of Cutting Edges |
3 |
| Thickness (Decimal Inch – 4 Decimals) |
0.2126 |
| Coating/Finish |
TiN; TiAlN |
| Relief Angle |
6.00 |
| Insert Size Code |
1316000 |
| Thickness Range (Decimal Inch) |
0.2000 to 0.2200 |
| Length Range (Decimal Inch) |
0.0000 to 0.3200 |
| Insert Hand |
Right Hand |
| Maximum Depth of Cut (Decimal Inch) |
0.1969 |
| Maximum Depth of Cut (mm) |
5.00 |
| Series |
328 |
| Coating Process |
PVD |
| Rake |
Positive |
| Primary Workpiece Material |
Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code |
P; S; H; K; M; N |
| Ansi Code |
328R13-160 00-GM 1025 |
| Iso Code |
328R13-160 00-GM 1025 |
| Standards |
ISO; ANSI |
| Cutting Edge Style |
Corner Rounded |
| Manufacturers Catalog Number |
328R13-160 00-GM 1025 |
| Cutter Series Compatibility |
328 |
| Chip Breaker |
GM |
| UNSPSC Code |
23291601 |
| Material Application |
Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method |
Screw |
| Coating Classification |
PVD |
| Single or Double Sided Insert |
Single |
| Included Angle Degree |
60 |
| Length (mm) |
5.40 |
| Width (Decimal Inch – 4 Decimals) |
0.0630 |
| Width (mm – 2 Decimals) |
1.60 |
| Multi-Use Tool |
Yes |
| Length (Decimal Inch – 4 Decimals) |
0.2126 |
| Country of Origin |
France |
(Description).

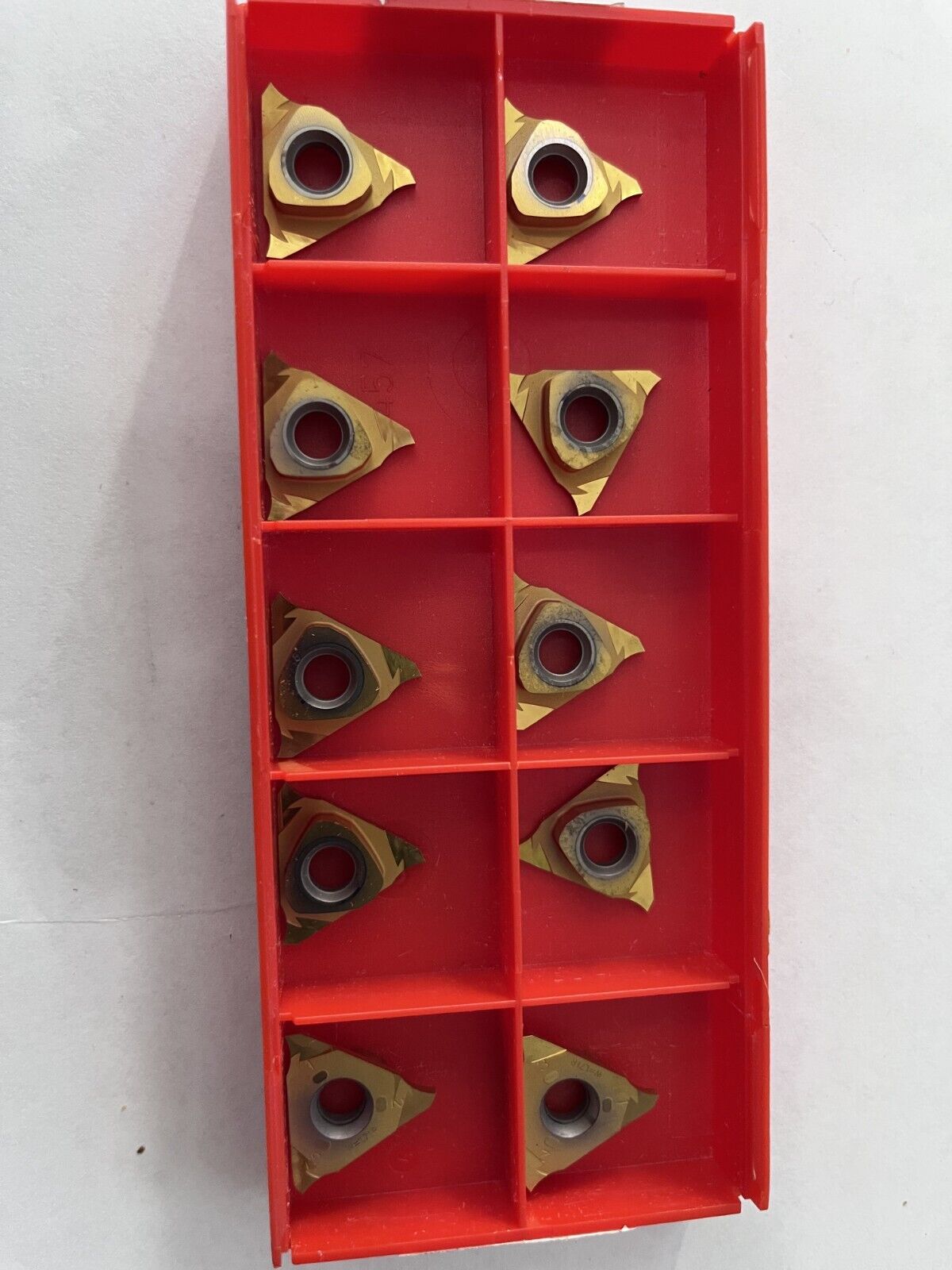

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
BRAND: Sandvik Coromant
INSERT MATERIAL: Carbide
MPN: does not apply
INSERT TYPE: Milling Insert
