SANDVIK COROMANT Milling Insert: 345R-13T5M-MM S40T S40T carbide 6532048
MSRP: $200
- Relief Angle 0.00
- Rake Angle 24
- Insert Size Code 13T5
- Coating/Finish TiN; TiCrN; Al2O3
- Thickness (Decimal Inch – 4 Decimals) 0.2146
- Thickness Range (Decimal Inch) 0.2000 to 0.2200
- Maximum Depth of Cut (mm) 6.00
- Cutting Edge Style Corner Rounded
- Primary Workpiece Material Stainless Steel; Superalloys & Titanium
- Inscribed Circle Range (Decimal Inch) 0.5100 to 0.6000
- Iso Code 345R-13T5M-MM S40T
- Ansi Code 345R-13T5M-MM S40T
- Insert Hand Right Hand
- Corner Radius (mm) 0.80
- Single or Double Sided Insert Double
- Inscribed Circle (Decimal Inch) 0.5118
- Insert Style 345
- Material Grade S35; M40
- Coating Classification CVD
- Insert Size 13
- Insert Material Solid Carbide
- Corner Radius (Inch) 1/32
- Maximum Depth of Cut (Decimal Inch) 0.2362
- Standards ISO; ANSI
- Width (Decimal Inch – 4 Decimals) 0.5118
- Corner Radius (Decimal Inch) 0.0315
- Insert Holding Method Screw
- Material Application Stainless Steel; Superalloys & Titanium
- Manufacturers Catalog Number 345R-13T5M-MM S40T
- Manufacturer Grade S40T
- Hole Diameter (Mm) ( – 0 Decimals) 0.19
- Included Angle Degree 90
- Inscribed Circle (mm) 13.00
- Thickness (mm) 5.95
- Multi-Use Tool Yes
- Rake Negative
- Hole Diameter (Decimal Inch) 0.1890
- Cutter Series Compatibility 345
- Insert Shape Square
- Coating Process CVD
- Series 345
- Length (Decimal Inch – 4 Decimals) 0.5118
- Number Of Cutting Edges 8
- Primary Workpiece Material Code S; M
- Chip Breaker MM
- UNSPSC Code 23291601
- Length Range (Decimal Inch) 0.5000 to 0.6000

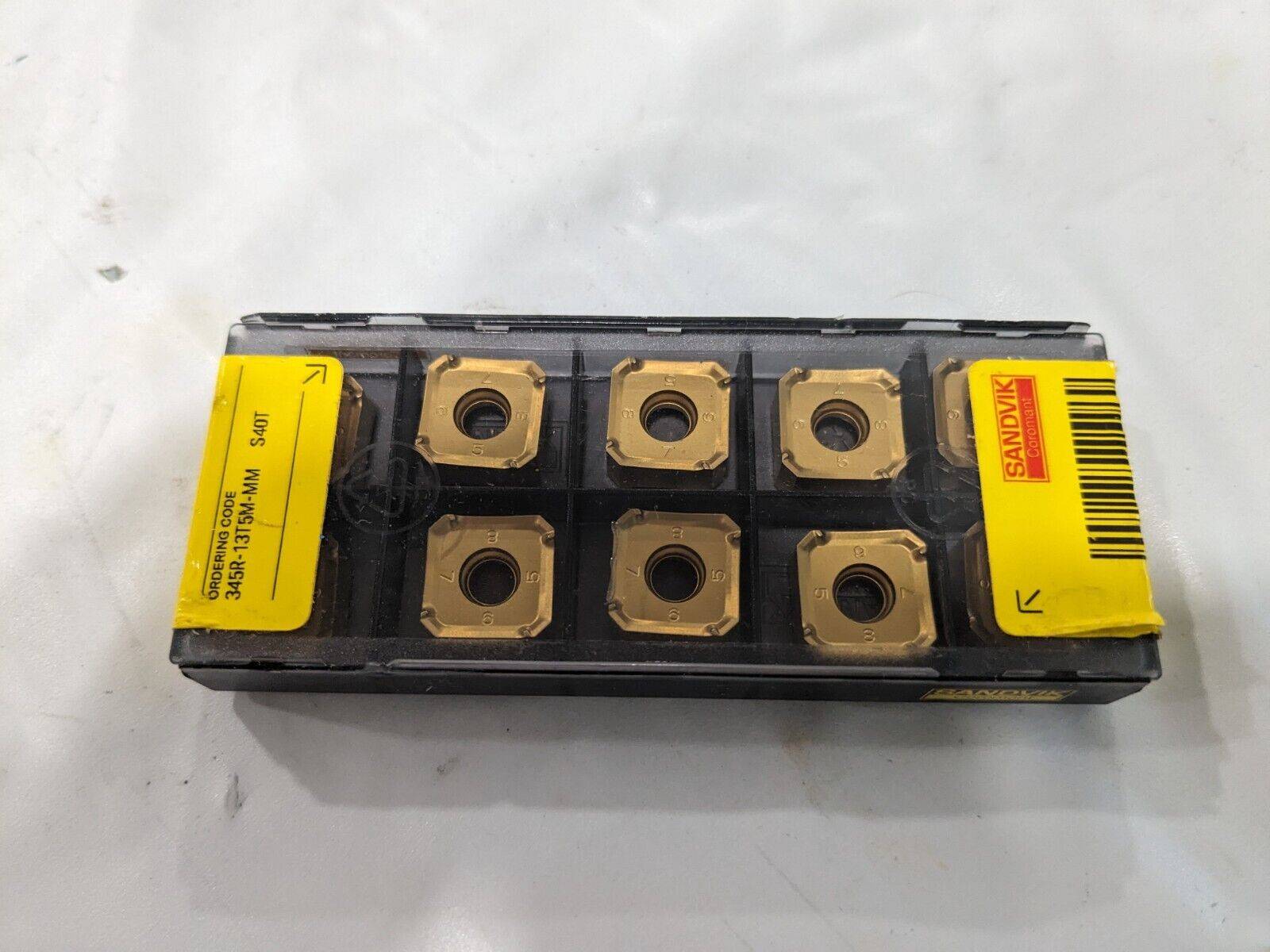

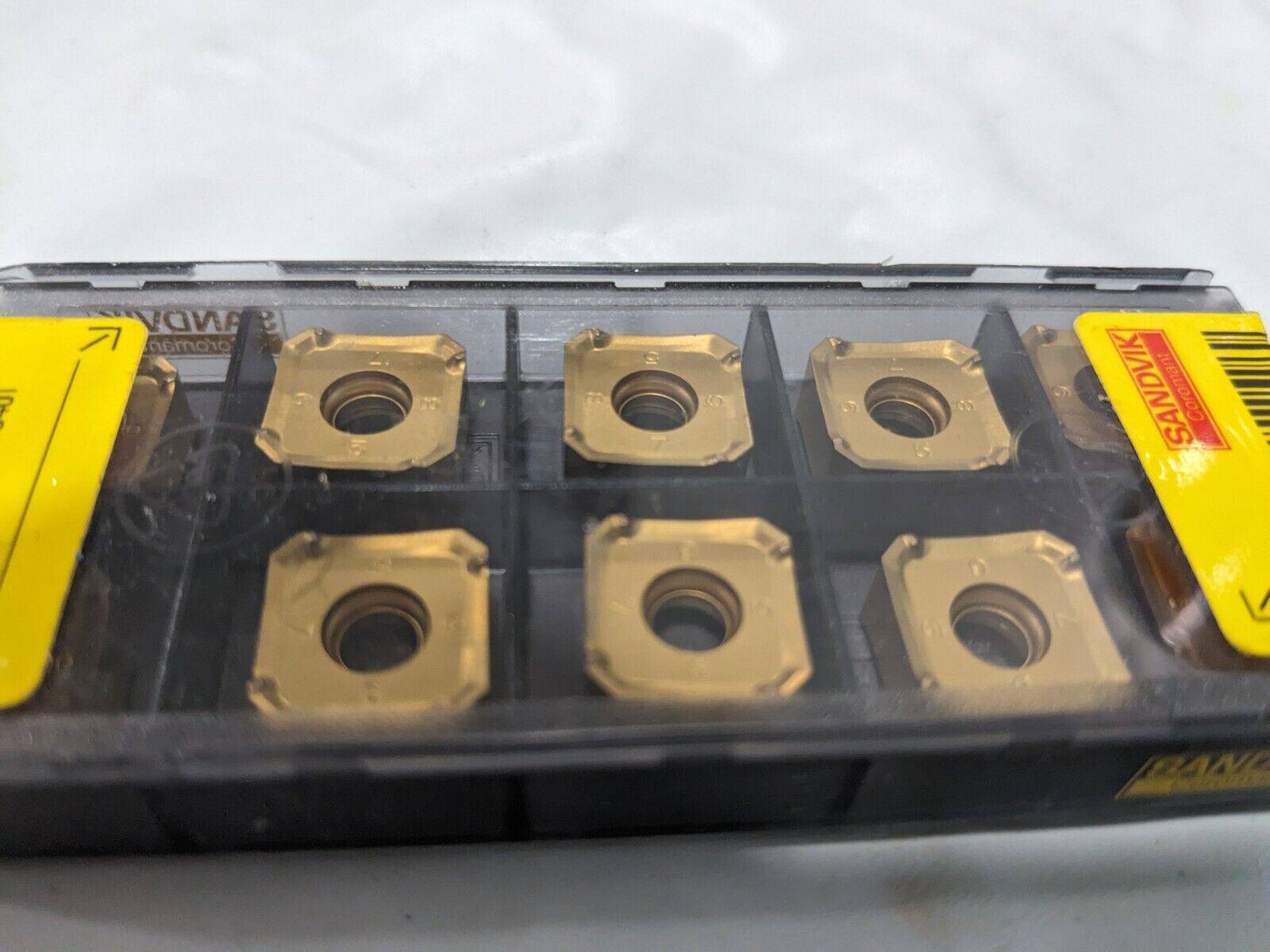

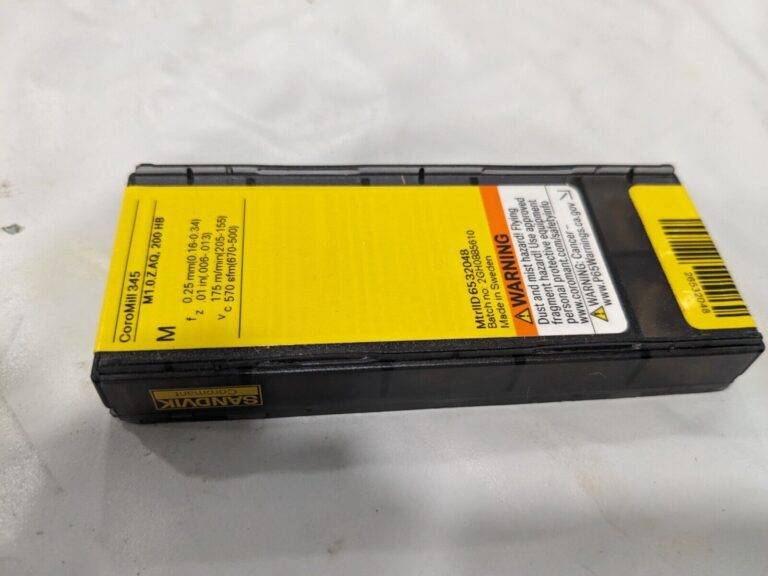

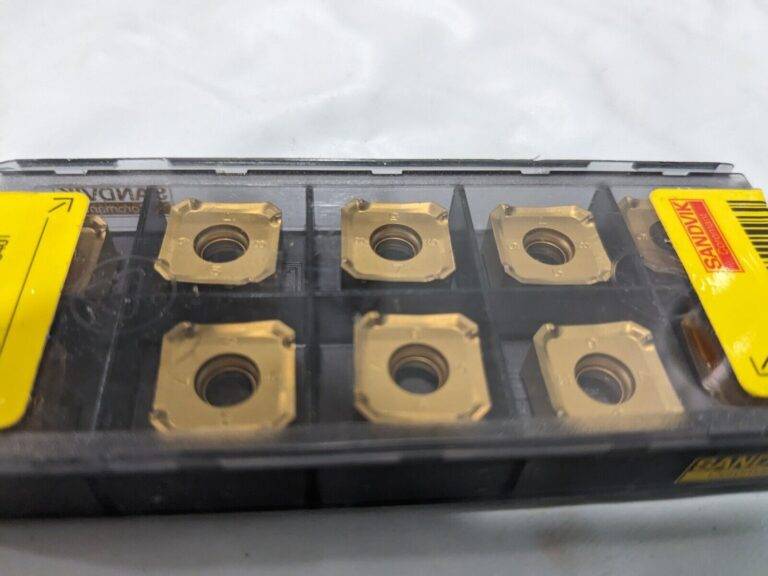

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
jan 08 24
HS4003
bw-3#26
BRAND: Sandvik Coromant
INSERT MATERIAL: Carbide
MPN: 6532048
INSERT TYPE: Milling Insert
