Description
Sandvik Coromant
Indexable Grooving Toolholder
MSRP: $300
- Internal or External Internal
- Toolholder Type NonFace Grooving
- Hand of Holder Right Hand
- Maximum Depth of Cut (Decimal Inch) 0.2800
- Maximum Depth of Cut (mm) 7.11
- Minimum Groove Width (Decimal Inch) 0.0728
- Minimum Groove Width (mm) 1.85
- Maximum Groove Width (mm) 2.39
- Maximum Groove Width (Decimal Inch) 0.0941
- Overall Length (mm) 200
- Overall Length (Decimal Inch) 7.8740
- Toolholder Style Internal
- Insert Compatibility N123E2-GM
- Shank Height (Inch) 1
- Shank Width/Diameter (Inch) 1
- Multi-Use Tool Yes
- Multi-Use Application Profiling; Grooving
- Insert Holding Method Clamp
- Insert Seat Size E
- Number of Inserts Used on Toolholder 1
- Minimum Hole Diameter (Decimal Inch) 1.0000
- Maximum Bore Depth (Decimal Inch) 4.0000
- igrvh Maximum Bore Depth (mm) 101.60
- Maximum Workpiece Diameter (Decimal Inch) 1.0000
- Back of Bar to Cutting Edge (Decimal Inch) 7.8740
- Head Length (mm) 35.00
- Head Length (Decimal Inch) 1.3780
- Mount Type Straight Mount
- Full Radius Insert Yes
- Shank Length (mm) 200.00
- Shank Length (Decimal Inch) 7.8740
- Manufacturers Catalog Number RAG123E028-16B
- Toolholder Material Steel
Does NOT come with inserts. Sold separately.

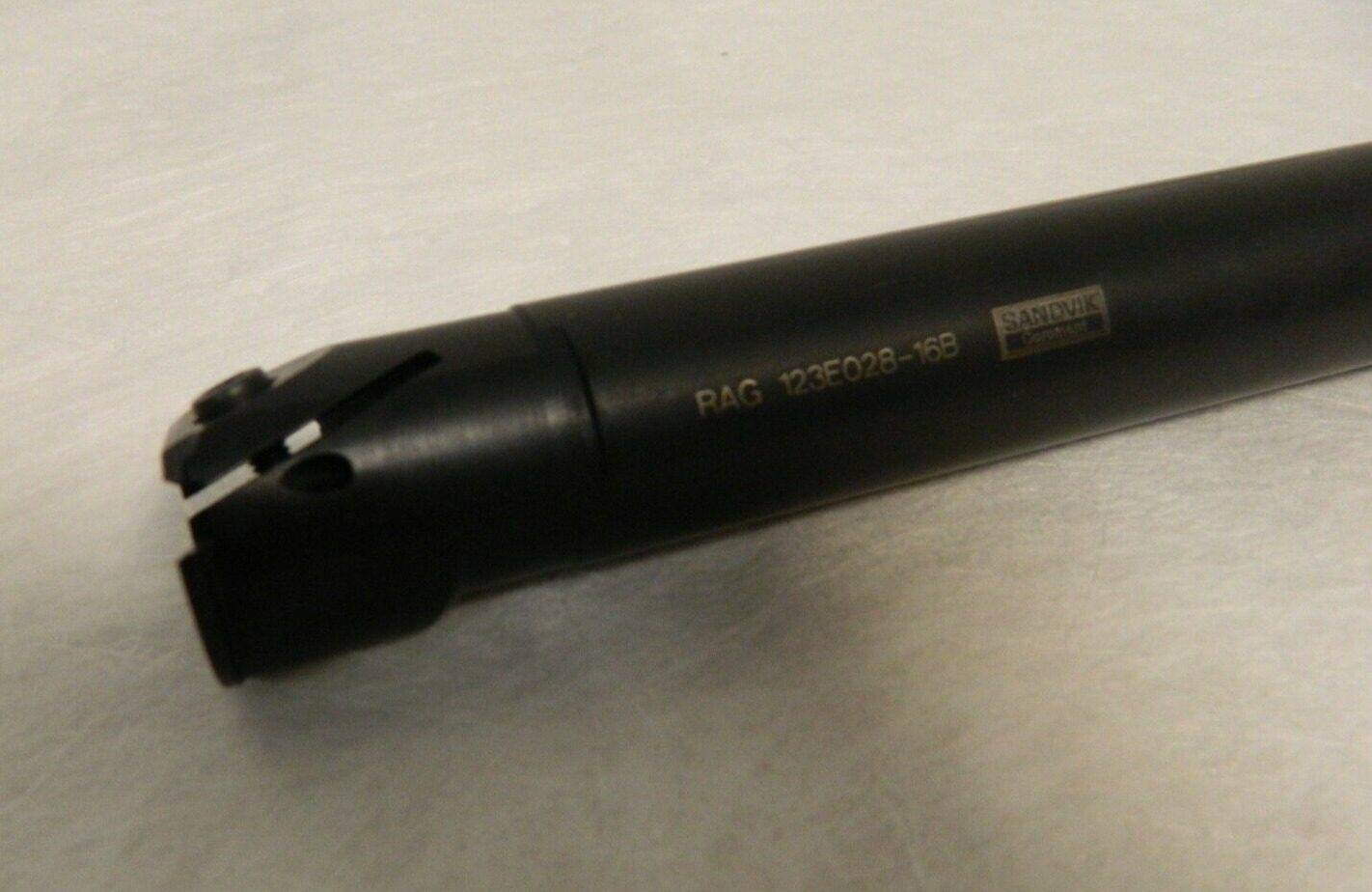

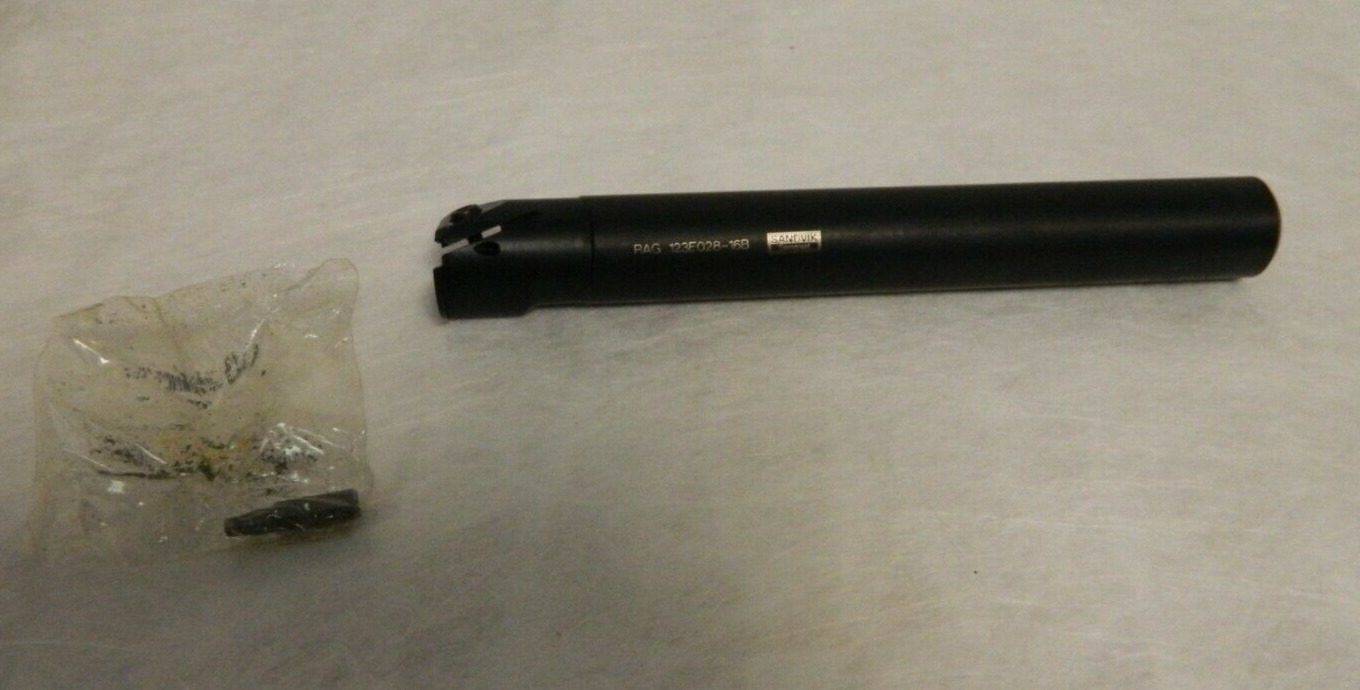

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
aug3024
HS6507
cilla12
BRAND: Sandvik Coromant
MSRP: $300
TOOL TYPE: na
UNIT TYPE: Unit
MPN: 5738722
COUNTRY/REGION OF MANUFACTURE: India
UNIT QUANTITY: n/a
LOCATION: JP5540cabmarleybin53
CALIFORNIA PROP 65 WARNING: na
