Description
BRAND Sandvik
Item
MSRP: $390.00
- specs
Toolholder Style QS-CP-25BR/L..-12B (INCH)
Hand of Holder Right Hand
Insert Compatibility CP-B1208D
Insert Holding Method Clamp
Shank Width (mm) 25.40
Shank Height (mm) 25.40
Coolant Through Yes
Rake Negative
Cutting Direction Right Hand
Compatible Insert Size Code 1208
Rake Angle -4
Multi-use Tool No
Shank Width (Decimal Inch) 1.0000
Shank Height (Decimal Inch) 1.0000
Series CoroTurn® Prime
Cutting Tool Application Turning
Head Length (Decimal Inch) 2.2441
Head Length (mm) 57.00
Back of Bar to Cutting Edge (Decimal Inch) 4.5669
Back of Bar to Cutting Edge (mm) 116.00
Insert Inscribed Circle (Decimal Inch) 4.7244
Toolholder Material Steel
Corner Radius (mm) 8.00
Corner Radius (Decimal Inch) 3.1496
ISO Number QS-CP-25BR-16-12B
Complete Insert Compatibility CP-B1208D
UNSPSC Code 23153308
Manufacturers Catalog Number QS-CP-25BR-16-12B
Insert Thickness 0.60
Insert Inscribed Circle (mm) 12.00
Vibration Dampening No
Insert Thickness (Decimal Inch) 0.2362
(Description).

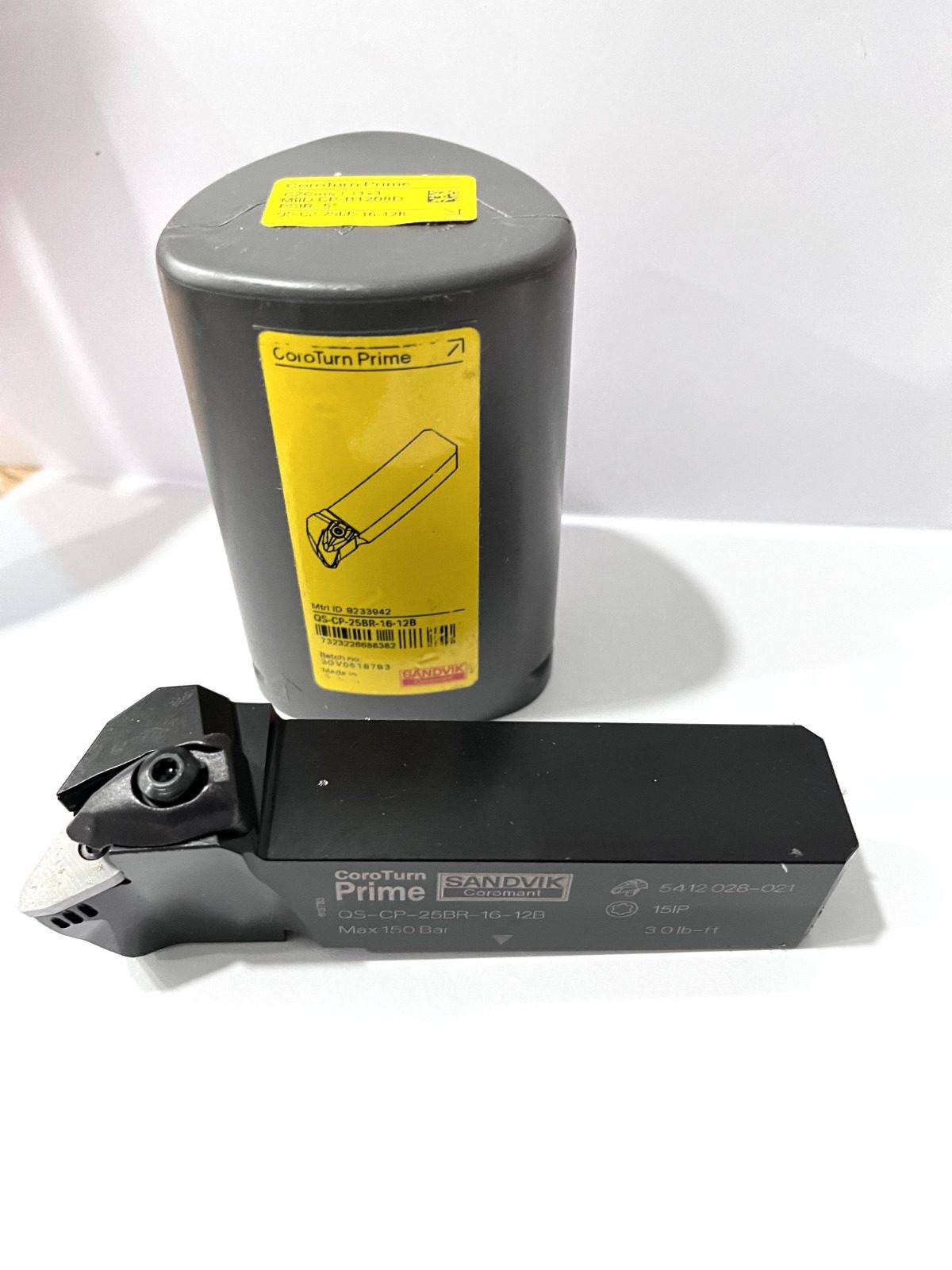

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date Feb 29 24
Lister#CM 13884
LocLegend 18
BRAND: Sandvik
MPN: 8233942
TOOLHOLDER TYPE: Indexable Turning Toolholder
