Description

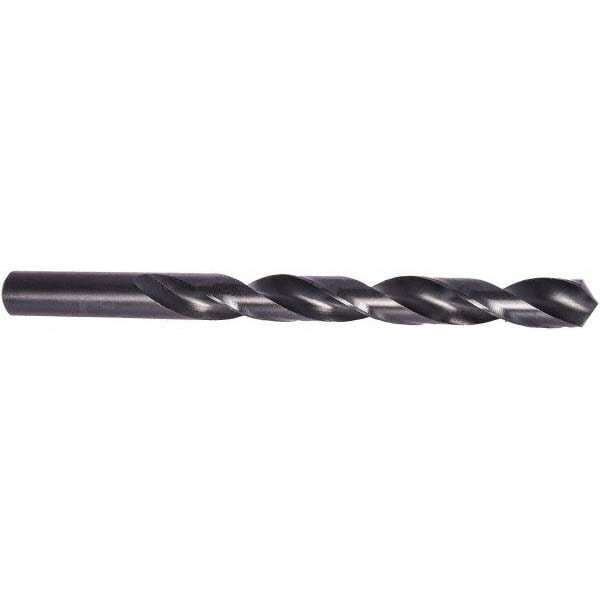

PTD 12pc Jobber Drill: 1.10 mm Dia, 118 deg Point HSS
MSRP: $35
- Drill Bit Size (mm) 1.10
- Drill Bit Size (Decimal Inch) 0.0433
- Drill Bit Material HSS
- Drill Point Angle (Degrees) 118
- Coating/Finish Oxide
- Flute Type Regular Spiral
- Cutting Direction Right Hand
- Point Type Standard
- Primary Workpiece Material Cast Iron; Steel
- Specification Number DIN 338
- Coolant Through No
- Number of Flutes 2
- Primary Workpiece Material Code P; S; K; M; N
- Shank Diameter (Decimal Inch) 0.5156
- Overall Length (mm) 36.00
- Overall Length (Decimal Inch) 1.4173
- Spiral Type Regular
- Flute Length (mm) 14.00
- Flute Length (Decimal Inch) 0.5512
- Proprietary Coating/Finish Steam Oxide
- Series 2AB
- Tool Application Drilling
- Flute By Diameter Ratio 13xD
- Shank Diameter (mm) 1.1
- Maximum Drilling Depth (Decimal Inch) 1.3750
- Shank Length (mm) 22
- Shank Length (Decimal Inch) 0.8661
- Number of Flats 0
- Drill Bit Diameter Tolerance h8
- Web Thinning Web-Thinned
- Web Configuration Tapered
- Shank Type Straight
- Tool Performance General Purpose
- Standards ANSI
- Double Margin No
- Drill Bit Grade General Purpose
- Drill Bit Size Range (Decimal Inch) 0.0000 – 0.0500
- Drill Bit Size Range (mm) 0.00 – 2.00
- Specification Designation DIN
- UNSPSC Code 23241634
(Description).
Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date
Lister#
Loc
BRAND: ptd
MPN: 6000506
