PRECISION TWIST DRILL
Extra Length Drill Bit: 3/4″ Dia, 118 ° Point HSS 5999854
MSRP: $170
- Drill Bit Size (Inch) 3/4
- Overall Length (Inch) 15
- Tool Material High-Speed Steel
- Coating/Finish Bright/Uncoated
- Coolant Through No
- Flute Type Spiral
- Shank Type Straight-Cylindrical
- Drill Point Angle 118
- Flute Length (Inch) 11
- Point Type Standard
- Series 1511
- Cutting Direction Right Hand
- Spiral Type Regular
- Number Of Flutes 2
- Web Thinning Web-Thinned
- Web Configuration Tapered
- Primary Workpiece Material Synthetic; Titanium; Aluminum Magnesium; Nickel; Copper
- Primary Workpiece Material Code P; S; H; K; M; N; O
- Secondary Workpiece Material Magnesium Alloy; Stainless Steel; Nickel; Magnesium; Reinforced Plastic Materials; High Strength Bronze; Steel; Nickel Alloy; Malleable Iron; Hardened Steel
- Standards ANSI
- Drill Bit Grade General Purpose
- Drill Bit Size (Decimal Inch) 0.7500
- Overall Length (Decimal Inch) 15.0000
- Shank Diameter (Decimal Inch) 0.7500
- Shank Diameter (Inch) 3/4
- Shank Length (Decimal Inch) 4.0000
- Flute Length (Decimal Inch) 11.0000
- Flute By Diameter Ratio 15xD
- Specification Designation ANSI

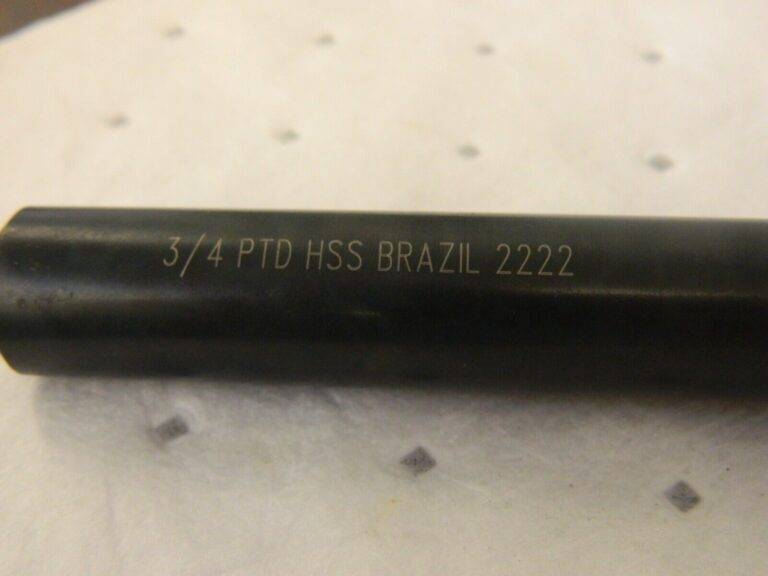

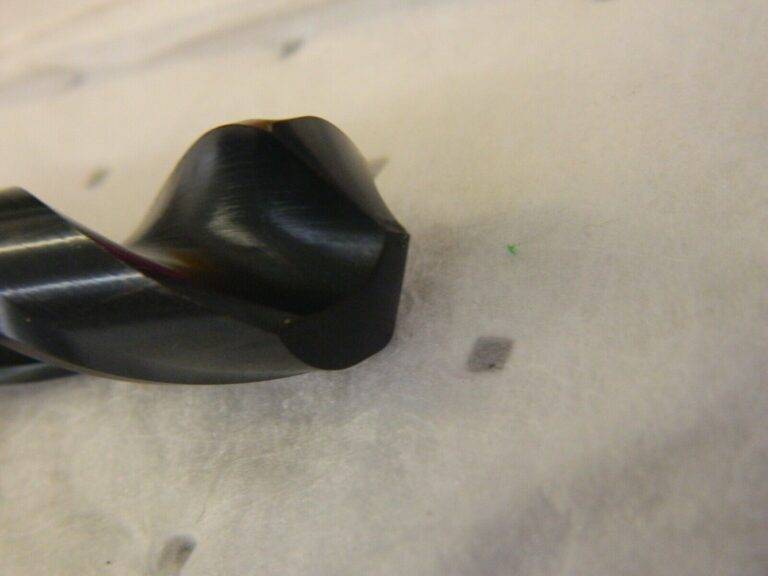

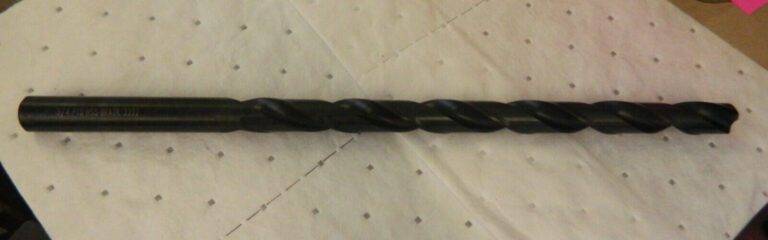

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Aug 22 23
HS3008
Skunk 27
BRAND: Precision Twist Drill
MSRP: $170
MPN: 5999854
