Description
PRECISION Jobber Drill: 9/64″ Dia, 135 deg Point HSS 12pk 5996318
MSRP: $30
- Drill Bit Size (Inch) 9/64
- Drill Bit Size (Decimal Inch) 0.1406
- Drill Bit Material High Speed Steel
- Cutting Direction Right Hand
- Coating/Finish Bronze
- Number of Flutes 2
- Spiral Type Regular
- Flute Type Spiral
- Point Type Standard
- Drill Point Angle (Degrees) 135
- Coolant Through No
- Shank Type Straight-Cylindrical
- Flute Length (Inch) 1-3/4
- Shank Diameter (Decimal Inch) 0.1406
- Overall Length (Inch) 2-7/8
- Overall Length (Decimal Inch) 2.875
- Flute Length (Decimal Inch) 1.7500
- Series HX10-HX15-HX18
- Tool Application Drilling
- Flute By Diameter Ratio 12xD
- Shank Diameter (Inch) 9/64
- Maximum Drilling Depth (Decimal Inch) 1.7500
- Maximum Drilling Depth (Inch) 1-3/4
- Shank Length (Decimal Inch) 1.1250
- Shank Length (Inch) 1-1/8
- Number of Flats 0
- Web Thinning Web-Thinned
- Web Configuration Parallel
- Tool Performance General Purpose
- Standards ANSI
- Double Margin No
- Drill Bit Size Range (Decimal Inch) 0.1000 – 0.1500
- Specification Designation ANSI
- UNSPSC Code 23241634

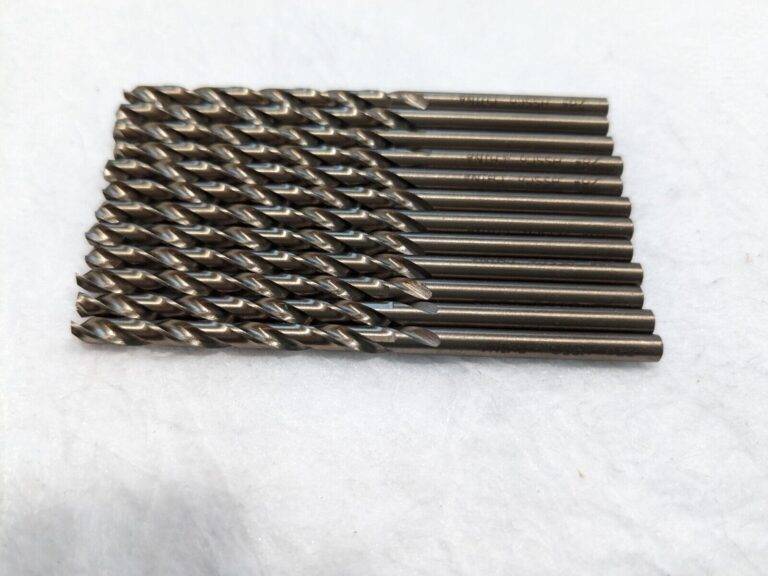

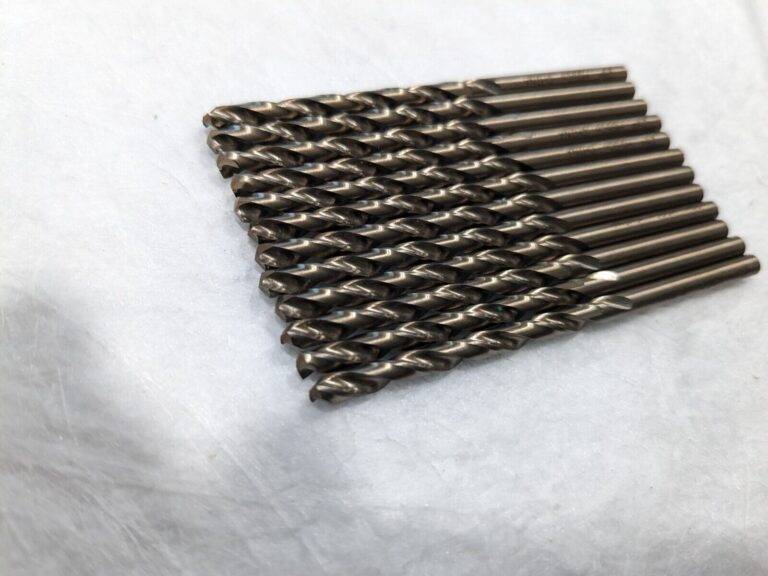

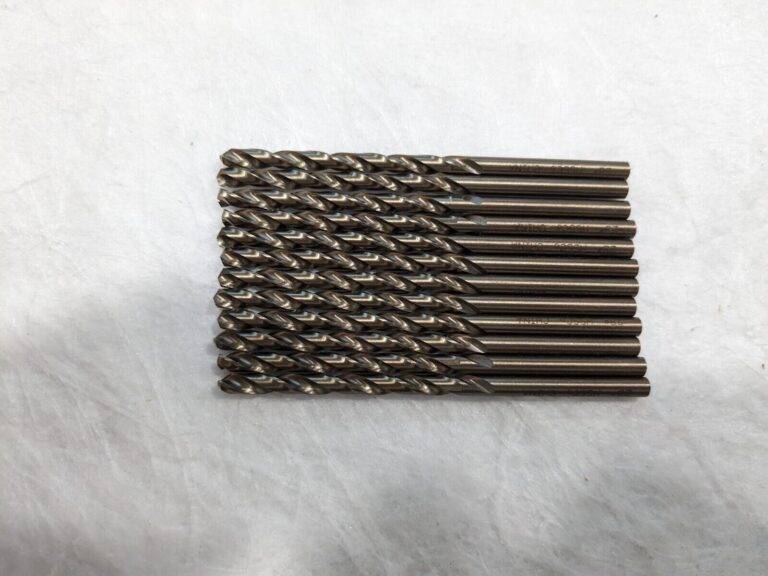

Please review photos, comes as shown.
