Parlec Collet Chuck: 2 To 20 Mm Cap Er Collet, Taper Shank W/Rust B40-32Erp412

PARLEC

 Collet Chuck: 2 to 20 mm Cap ER Collet, Taper Shank w/rust B40-32ERP412
MSRP: $200

• Collet System ER
• Collet Series ER32
• Shank Type Taper
• Taper Size BT40
• Projection (Decimal Inch) 4.1200
• Through Coolant Yes
• Minimum Collet Capacity (mm) 2.00
• Minimum Collet Capacity (Decimal Inch) 0.0787
• Maximum Collet Capacity (mm) 20.00
• Maximum Collet Capacity (Decimal Inch) 0.7874
• Overall Length (Decimal Inch) 6.7000
• Actuator Type Wrench
• Nose Diameter (Decimal Inch – 4 Decimals) 1.9700
• TIR (Decimal Inch) 0.000200
• Coolant Type Through-Spindle
• Collet Nut Diameter (Decimal Inch) 1.9700
• Type ER Coolant Collet
• Product Service Code 5136
• Balanced To Rpm 25000

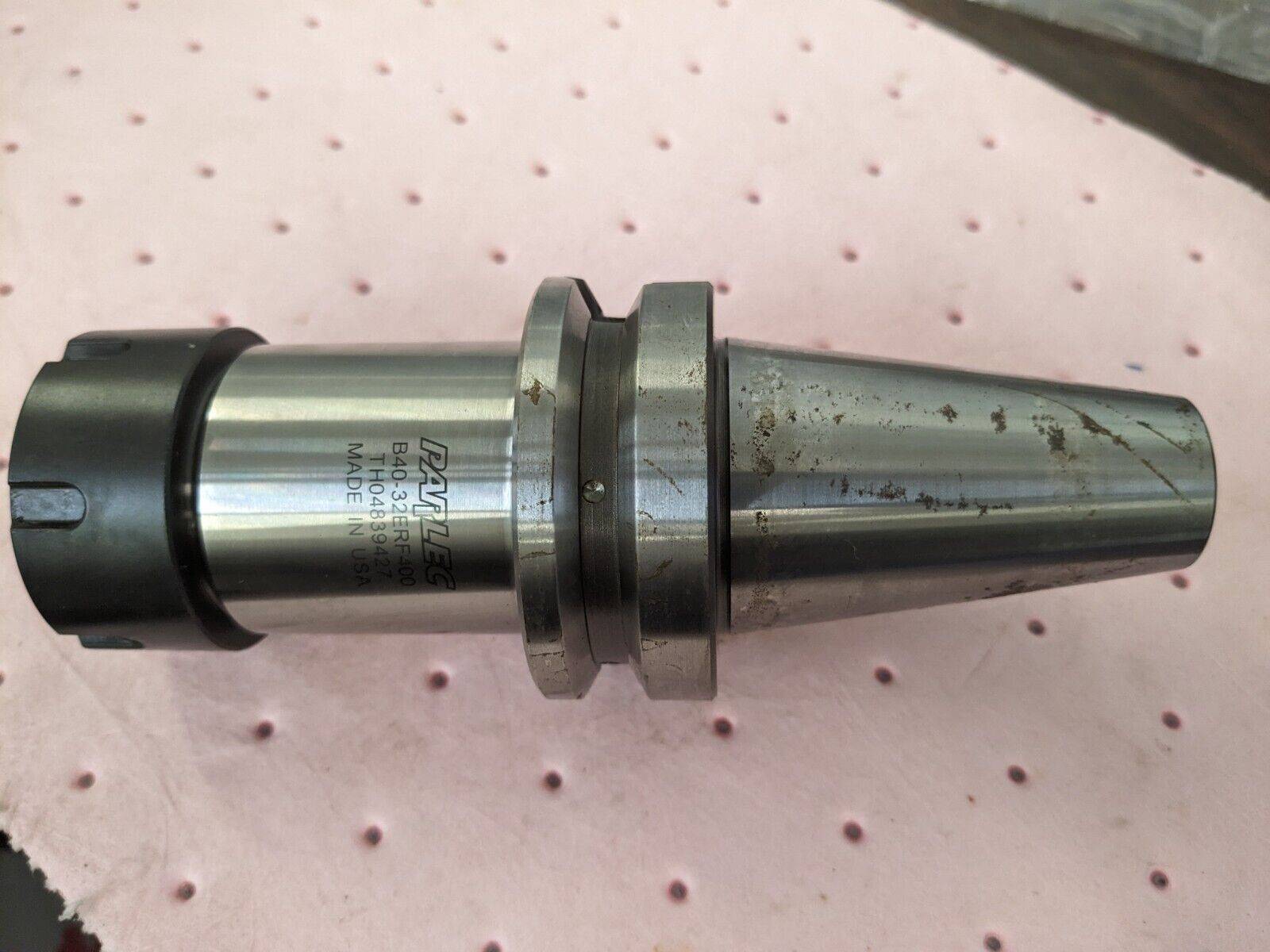

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
