Description
OSG

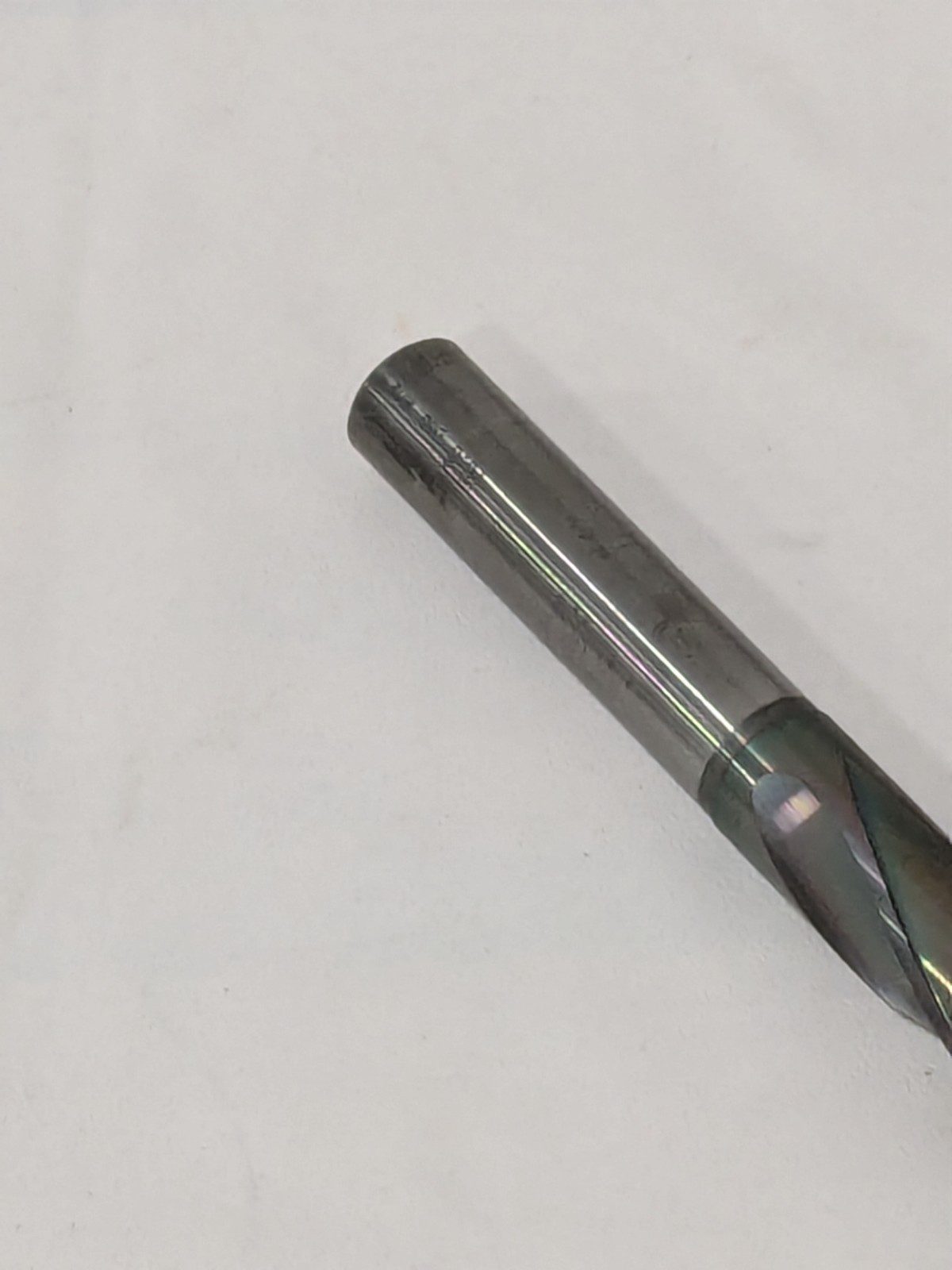

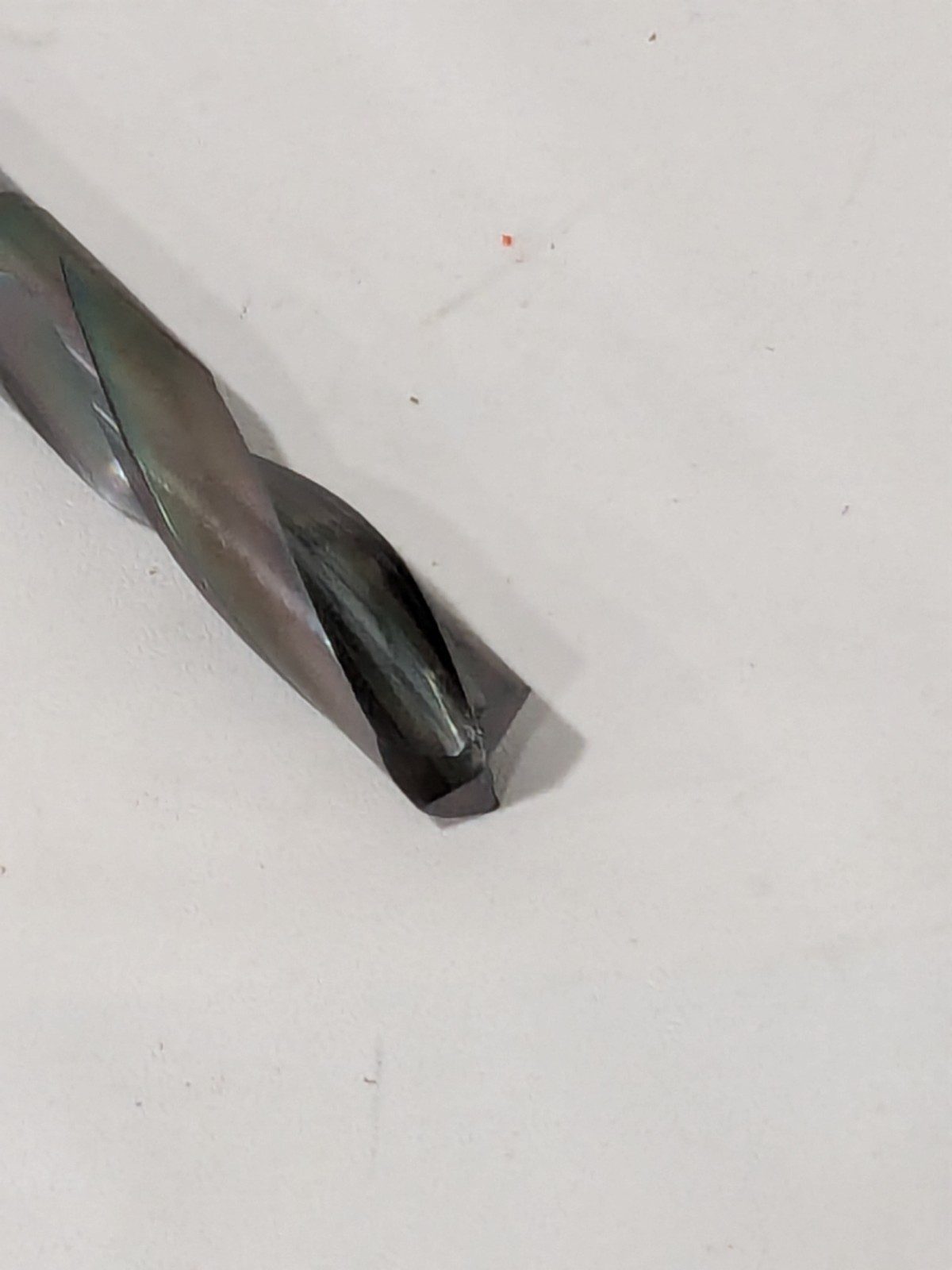

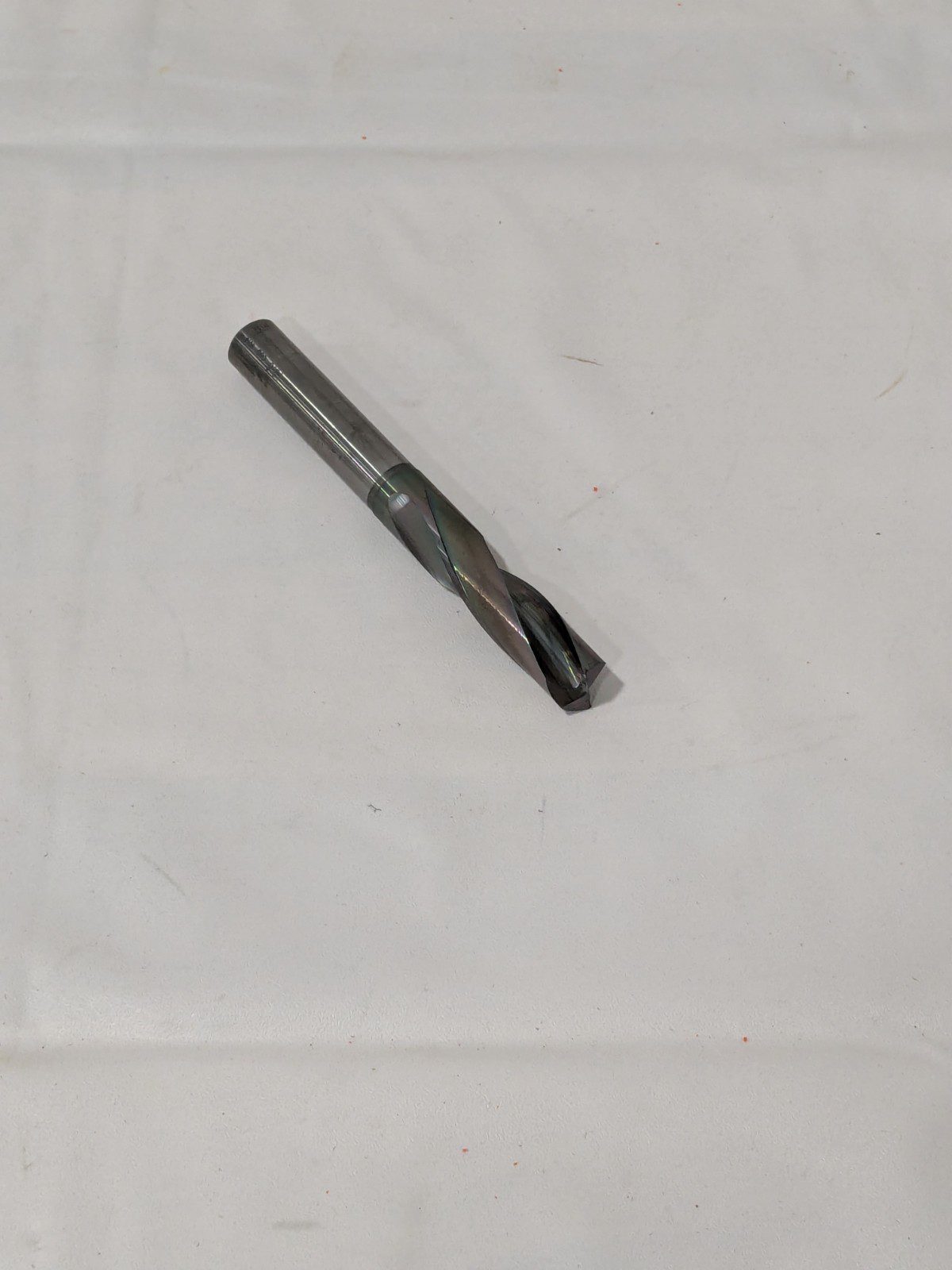

Screw Machine Length Drill Bit
MSRP: $120.00
- Drill Bit Size (mm) 10.60
- Drill Bit Size (Decimal Inch) 0.4173
- Tool Material Solid Carbide
- Cutting Direction Right Hand
- Coating/Finish Multi-layer
- Number Of Flutes 2
- Spiral Type Regular
- Flute Type Regular Spiral
- Flute Length (mm) 46.00
- Drill Point Angle 180
- Coolant Through No
- Point Type Flat Bottom
- Primary Workpiece Material Cast Iron; Steel; Hardened Materials
- Shank Type Straight
- Shank Diameter (Decimal Inch) 0.0394
- Overall Length (mm) 90.00
- Overall Length (Decimal Inch) 3.5433
- Shank Diameter (mm) 10.00
- Series 5700
- Web Thinning Web-Thinned
- Web Configuration Tapered
- Proprietary Coating/Finish EgiAs
- Drill Length Type Screw Machine
- Flute By Diameter Ratio 2xD
- Tool Performance High Performance
- Drill Bit Diameter Tolerance +0 to -0.027 mm
- Drill Bit Size Range (Decimal Inch) 0.4000 to 0.4500
- Drill Bit Size Range (mm) 9.50 – 11.00
- UNSPSC Code 23241635
This item appears to be new and in good condition. SOLD AS IS.
Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
August 01 2025
TB 20204
BW 2 Bin 23
BRAND: OSG
MSRP: $120.00
UNIT TYPE: Unit

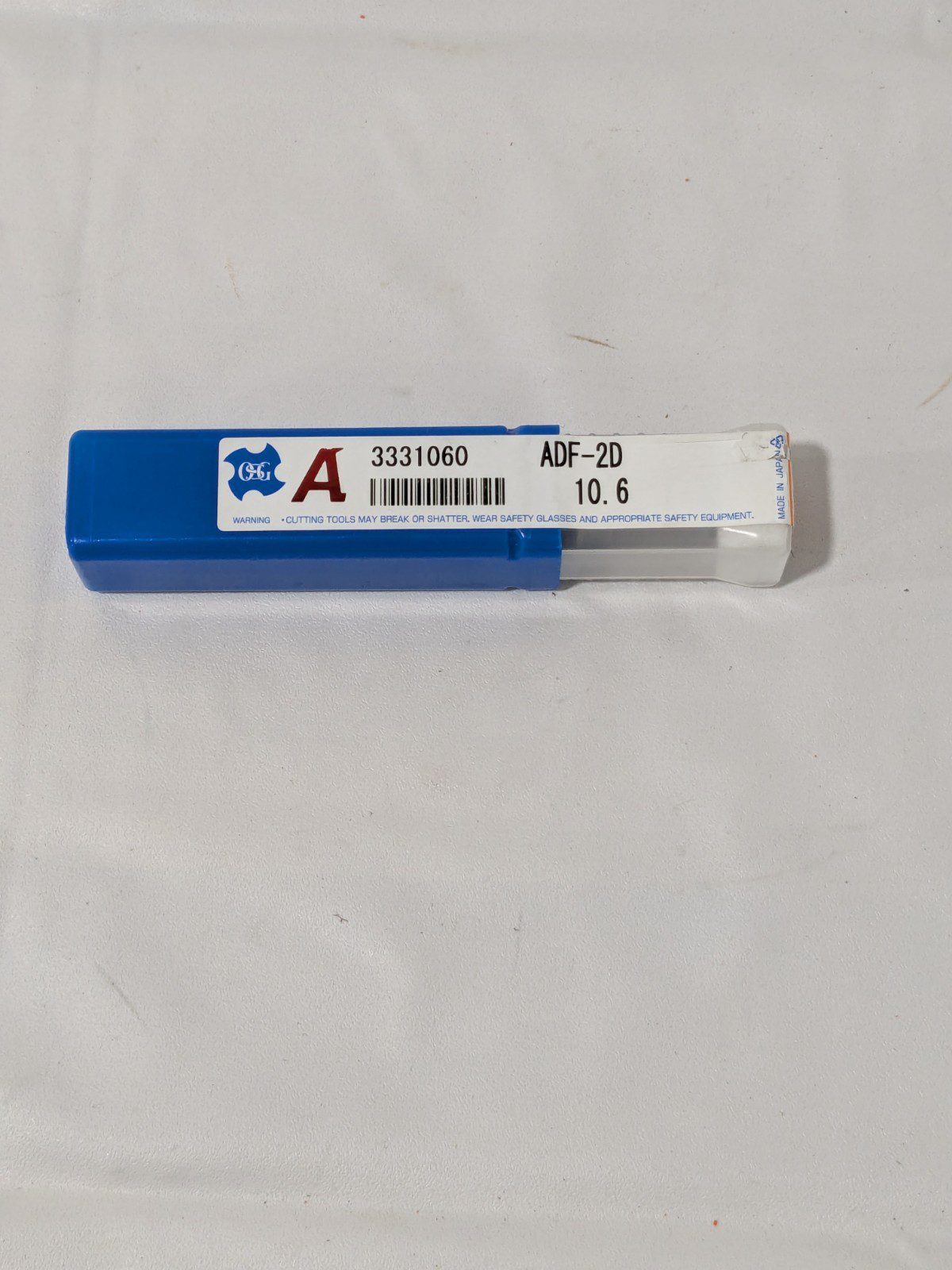

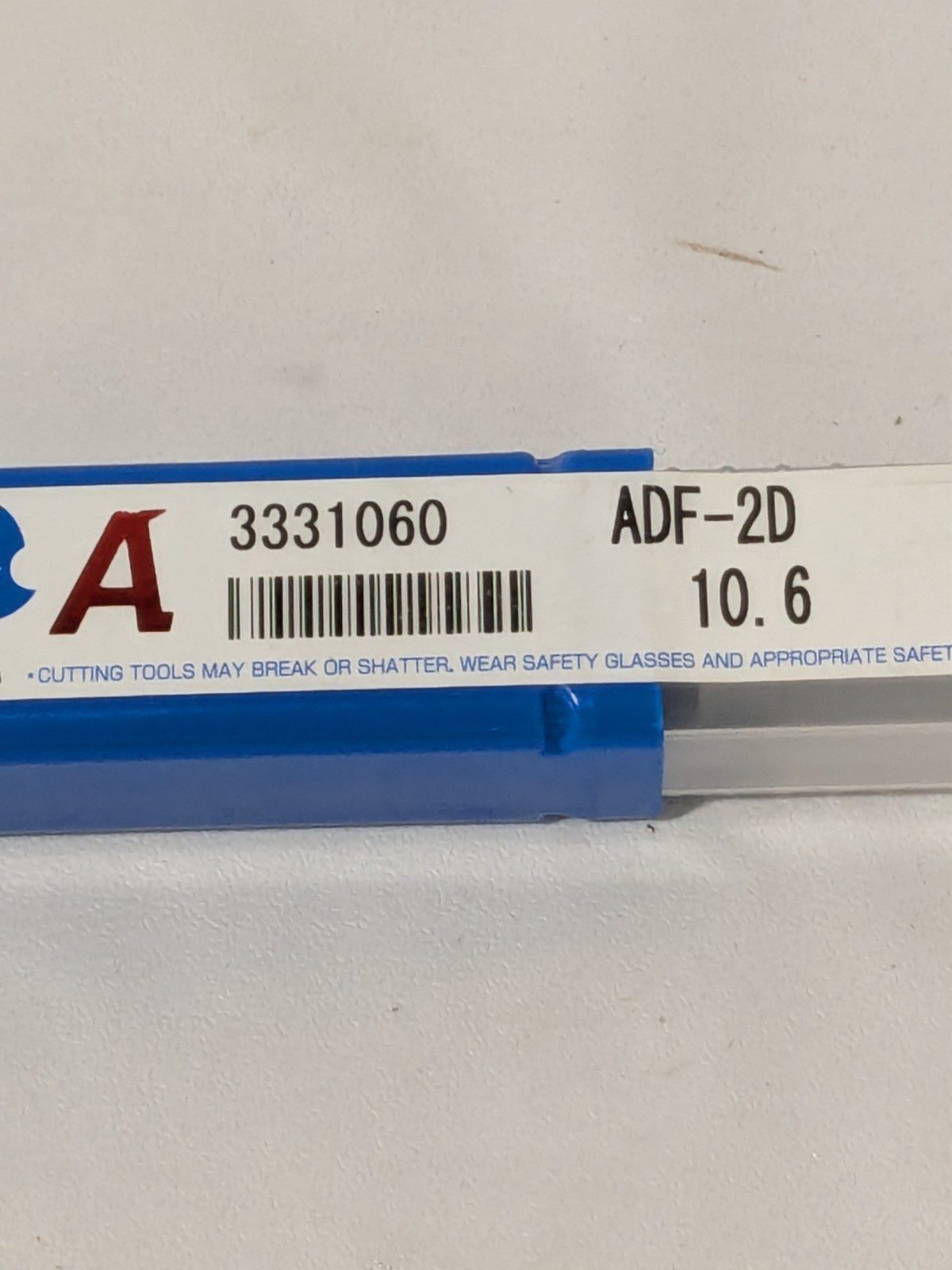

MODEL: 3331060
MPN: Does Not Apply
ITEM TYPE: N/A
UNIT QUANTITY: N/A
CALIFORNIA PROP 65 WARNING: N/A
LOCATION: TB20204BW2Bin23
