Description

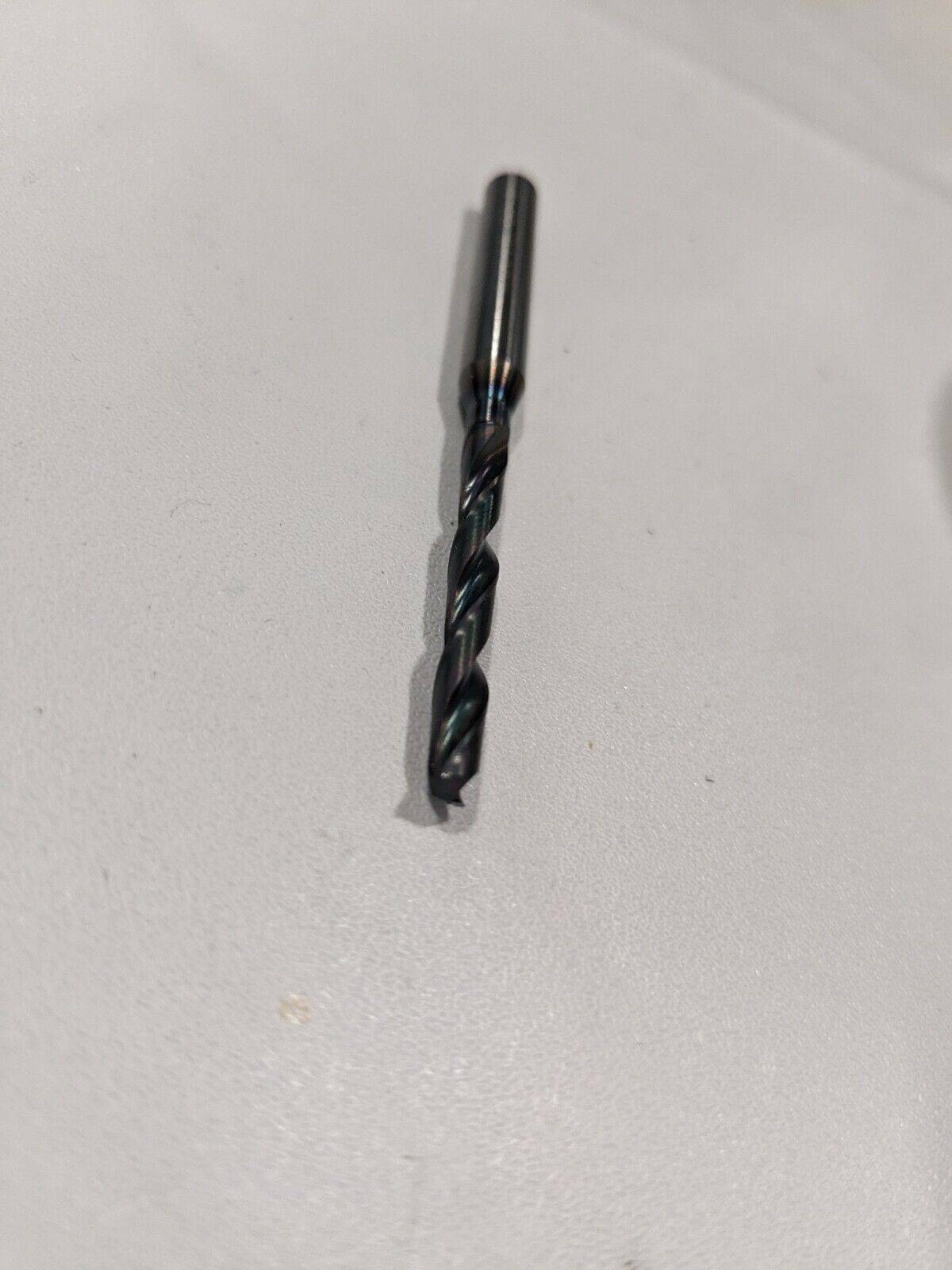

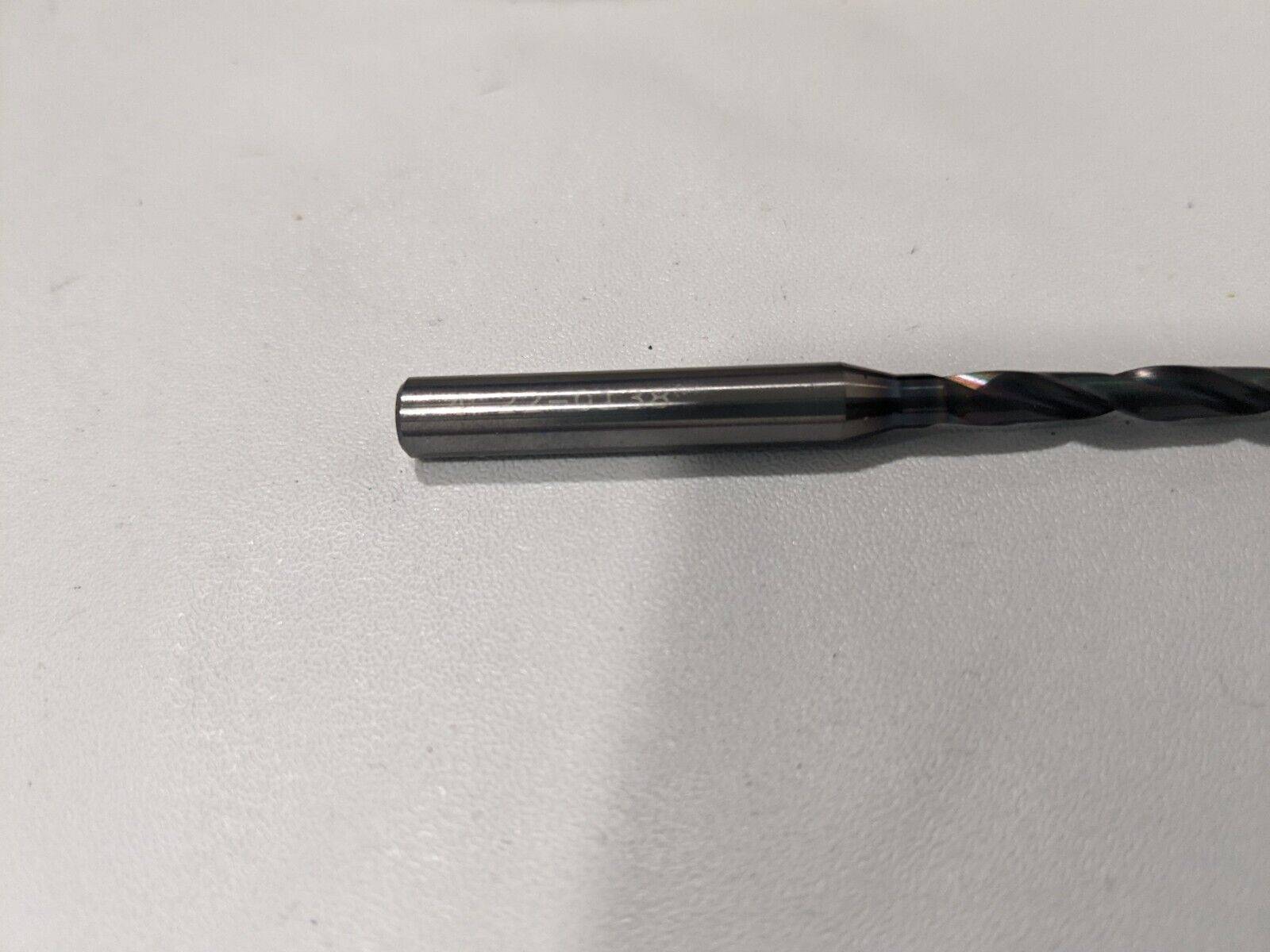

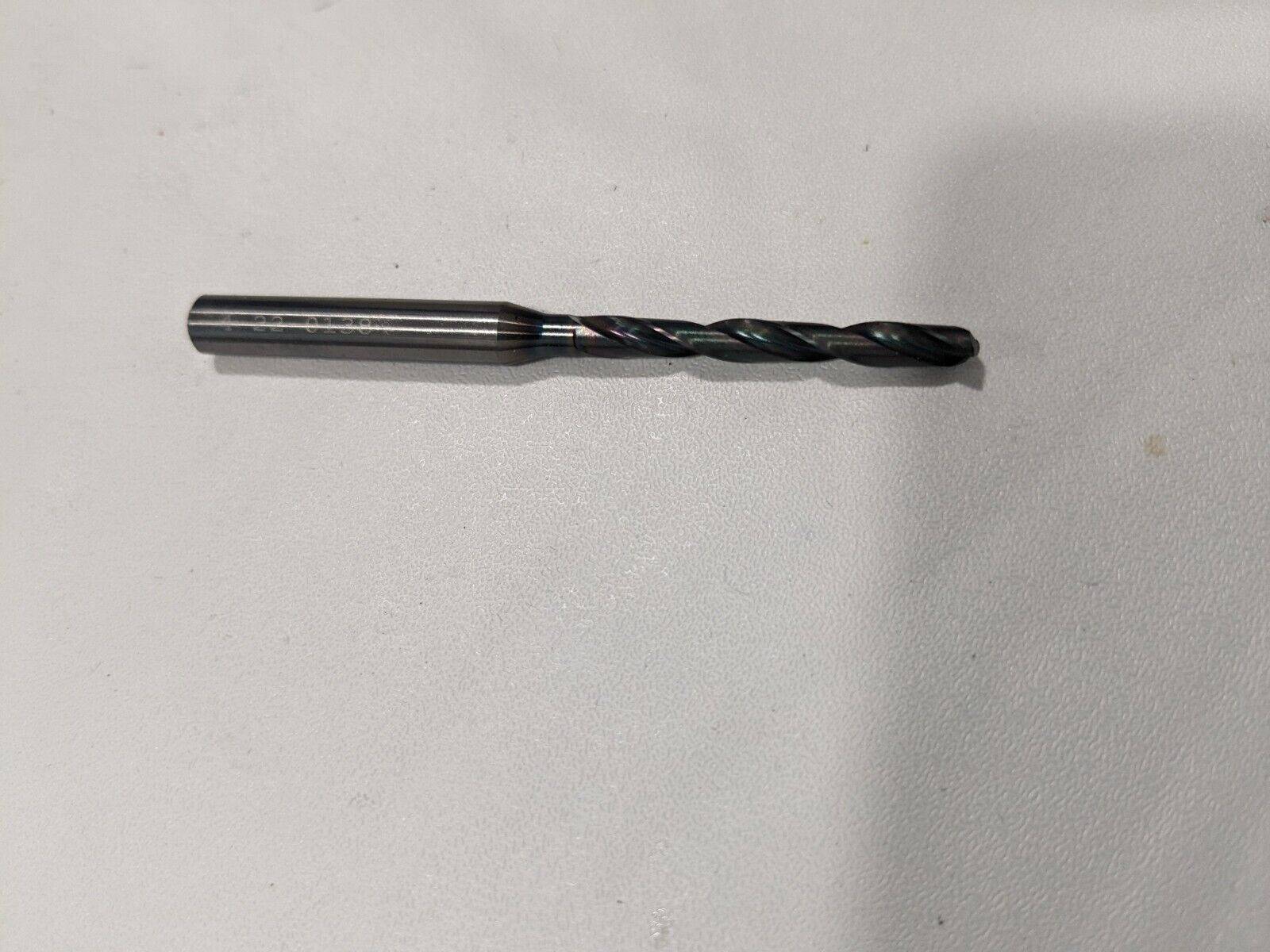

OSG Jobber Length Drill Bit: 4.00 mm dia 140 deg, Solid Carbide HP245-1575
MSRP: $50
- Drill Bit Size (mm) 4.00
- Drill Bit Size (Decimal Inch) 0.1575
- Drill Bit Material Solid Carbide
- Drill Point Angle (Degrees) 140
- Coating/Finish Multi-layer
- Flute Type Regular Spiral
- Cutting Direction Right Hand
- Point Type R-Thinned
- Primary Workpiece Material Cast Iron; Steel
- Coolant Through No
- Flute Length (Decimal Inch) 1.4173
- Flute Length (mm) 36.00
- Number of Flutes 2
- Primary Workpiece Material Code P; K
- Overall Length (mm) 74.00
- Overall Length (Decimal Inch) 2.9134
- Spiral Type Regular
- Proprietary Coating/Finish EgiAs
- Series HP245
- Tool Application Drilling; Cross Hole; Blind Hole; Self-Centering
- Flute By Diameter Ratio 5xD
- Shank Diameter (mm) 6
- Drill Bit Diameter Tolerance +0.004 to +0.016 mm
- Web Thinning R-Thinned
- Web Configuration Tapered
- Shank Type Straight
- Tool Performance High Performance
- Drill Bit Grade High Performance
- Drill Bit Size Range (Decimal Inch) 0.1500 – 0.2000
- Drill Bit Size Range (mm) 4.00 – 5.00
- UNSPSC Code 23241634
- Country of Origin India
(Description).
Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
January 23rd 2025
hs 8310
marley 49
BRAND: OSG
UNIT TYPE: Unit
MPN: HP245-1575
ITEM TYPE: See description
COUNTRY/REGION OF MANUFACTURE: Unknown
UNIT QUANTITY: see description
CALIFORNIA PROP 65 WARNING: See description
