Description
OSG
Ball End Mill
MSRP: $30.00
- Mill Diameter (mm) 4.00
- Mill Diameter (Decimal Inch) 0.1575
- Number Of Flutes 4
- End Mill Material Solid Carbide
- Length of Cut (mm) 14.00
- Length of Cut (Decimal Inch) 0.5512
- Shank Diameter (mm) 4.00
- Overall Length (mm) 51.00
- Single Or Double End Single
- Coating/Finish Family TiAlN
- Centercutting Yes
- Cutting Direction Right Hand
- Flute Direction Right Hand
- Extended Reach No
- Coolant Through No
- Helix Angle 35
- Primary Workpiece Material High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials
- Primary Workpiece Material Code P; S; H; K; M
- Secondary Workpiece Material High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials
- Secondary Workpiece Material Code P; S; H; K; M
- Coating/Finish TiAlN
- Variable Helix No
- Variable Index No
- Chipbreaker No
- Flute Type Spiral
- Shank Type Straight-Cylindrical
- Material Grade Submicron
- Length Type Standard
- Coating Classification PVD
- Helix Style Medium
- Nose Radius (mm) 2.00
- Reach Length (mm) 14.00
- Mill Diameter Tolerance +0.000/-0.038 mm
- Shank Diameter Tolerance h6
- Series HP441BN
- System Of Measurement Metric
- Additional Information The Hy-Pro-Carb Is An Entire Line up of Performance End Mills Designed for Extend Tool Life.
- Manufacturers Catalog Number HP441-1575-BN
- Material Removal Type Roughing & Finishing
- UNSPSC Code 27112803
This item appears to be new and in good condition. SOLD AS IS.

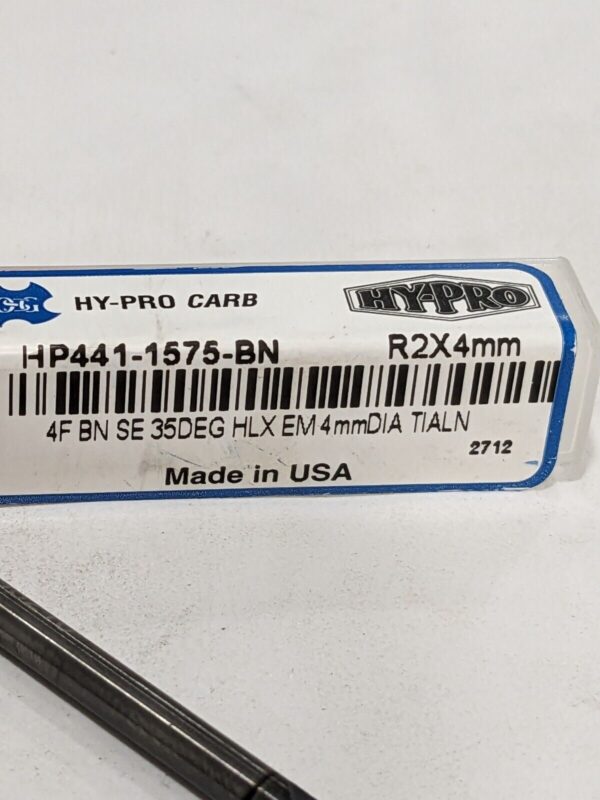

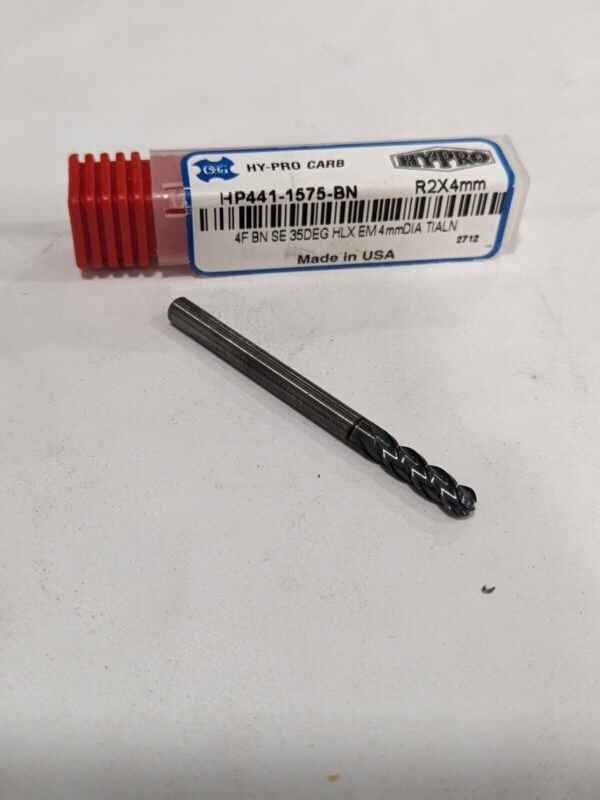

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
March 14 2025
TB 19043
Cab Nick Bin 6
MSRP: $30.00
NUMBER OF FLUTES: 4
END MILL TYPE: Ball End Mill
OVERALL LENGTH: N/A
MATERIAL: N/A
MPN: Does Not Apply
MILL DIAMETER: N/A
SHANK DIAMETER: N/A
CALIFORNIA PROP 65 WARNING: N/A
BRAND: OSG
END TYPE: N/A
UNIT TYPE: Unit
MODEL: HP441-1575-BN
COUNTRY/REGION OF MANUFACTURE: Unknown
UNIT QUANTITY: N/A
LENGTH OF CUT: N/A
LOCATION: TB19043CabNickBin6
