Description
OSG
Ball End Mill
MSRP: $60.00
- Mill Diameter (Inch) 1/4
- Mill Diameter (Decimal Inch) 0.2500
- Number Of Flutes 2
- End Mill Material Solid Carbide
- Length of Cut (Decimal Inch) 0.3740
- Length of Cut (Inch) 1/4
- Shank Diameter (Decimal Inch) 0.2500
- Shank Diameter (Inch) 1/4
- Overall Length (Decimal Inch) 3.0000
- Overall Length (Inch) 3
- Single Or Double End Single
- Coating/Finish Family DUROREY
- Centercutting Yes
- Cutting Direction Right Hand
- Flute Direction Right Hand
- Extended Reach No
- Coolant Through No
- Helix Angle 25
- Primary Workpiece Material Hardened Materials
- Primary Workpiece Material Code H
- Secondary Workpiece Material Steel
- Secondary Workpiece Material Code P
- Coating/Finish DUROREY
- Variable Helix No
- Variable Index No
- Chipbreaker No
- Flute Type Spiral
- Shank Type Straight-Cylindrical
- Length Type Stub
- Coating Classification PVD
- Helix Style Low
- Nose Radius (Decimal Inch) 0.1250
- Neck Length (Decimal Inch) 0.0000
- Neck Diameter (Decimal Inch) 0.2460
- Reach Length (Decimal Inch) 0.3740
- Mill Diameter Tolerance +0.00000/-0.00028 in
- Shank Diameter Tolerance h4
- Series 8410
- System Of Measurement Fractional Inch
- Additional Information 2-Flute High-Precision Finishing Carbide Ball End Mill for High-Hardness Steels
- Manufacturers Catalog Number 84100523
- Material Removal Type Finishing
- UNSPSC Code 27112803
This item appears to be new and in good condition. SOLD AS IS.

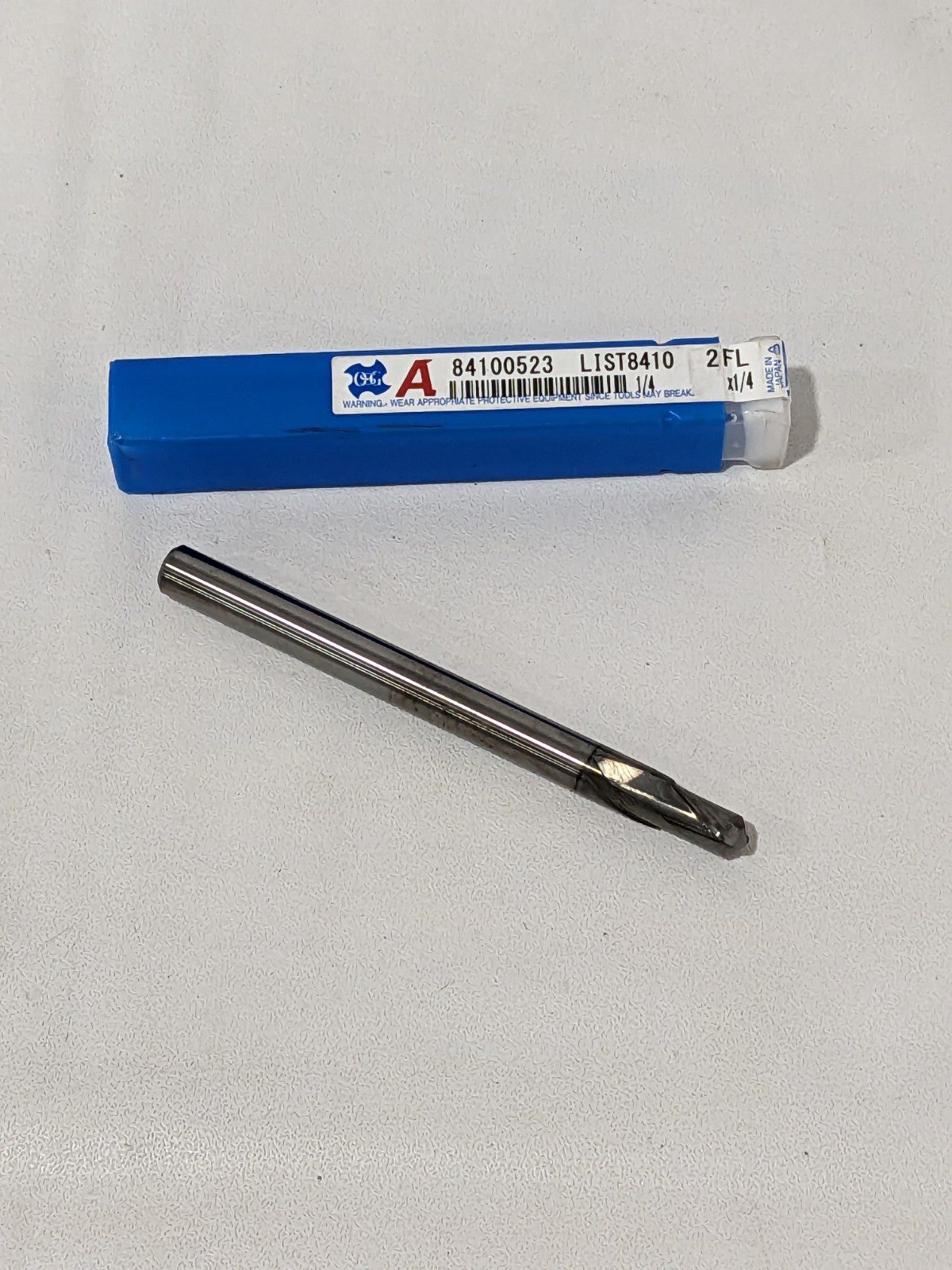

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
May 20 2025
TB 19630
BW 3 Bin 36
MSRP: $60.00
NUMBER OF FLUTES: 2
END MILL TYPE: Ball End Mill
OVERALL LENGTH: 3 in
MATERIAL: Solid Carbide
MPN: Does Not Apply
MILL DIAMETER: 1/4 in
SHANK DIAMETER: 1/4 in
CALIFORNIA PROP 65 WARNING: N/A
BRAND: OSG
END TYPE: Ball
UNIT TYPE: Unit
MODEL: 84100523
COUNTRY/REGION OF MANUFACTURE: Unknown
UNIT QUANTITY: N/A
LENGTH OF CUT: 1/4 in
LOCATION: TB19630BW3Bin36
