Osg 4Ct Ball End Mills 1.50 Mmdia 1.20 Mmloc 2 Fl Solid Carbide 3111630

OSG 4ct Ball End Mills 1.50 mmDia 1.20 mmLOC 2 Fl Solid Carbide 3111630
MSRP: $250

• Mill Diameter (Decimal Inch) 0.0591
• Mill Diameter (mm) 1.50
• Number Of Flutes 2
• End Mill Material Solid Carbide
• Length of Cut (mm) 1.20
• Coating/Finish WXL
• Extended Reach Yes
• Variable Helix No
• Variable Index No
• Helix Angle 30
• Overall Length (mm) 65.00
• Chipbreaker No
• Undercutting No
• Length Of Cut Range (Decimal Inch) 0.0000 – 0.0500
• Length Type Extended
• Helix Style Medium
• Material Removal Type Roughing & Finishing
• Shank Diameter (mm) 4.00
• Neck Diameter (mm) 1.45
• Nose Radius (mm) 0.75
• Neck Length (mm) 28.80
• Reach Length (mm) 30.00
• Shank Diameter Tolerance h6
• Maximum Helix Angle 30
• Minimum Helix Angle 30
• Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Steel
• Primary Workpiece Material Code P; H; K; M
• Secondary Workpiece Material Non-Ferrous Metal; Superalloys & Titanium
• Secondary Workpiece Material Code S; N
• Material Grade Ultra Fine Micrograin
• Flute Direction Right Hand
• Cutting Direction Right Hand
• Series 3790
• Flute Type Spiral
• UNSPSC Code 27112803
• Additional Information Exocarb® WXL High Performance End Mills For Pre-Hardened &Amp; Hardened Steels.
• Centercutting Yes
• Coating Classification PVD
• Single Or Double End Single
• Shank Type Straight-Cylindrical
• Pitch Coarse
• Coolant Through No
• Length Of Cut (Decimal Inch – 4 Decimals) 0.0472
• Manufacturers Catalog Number 3111630
• System Of Measurement Metric

This high-quality ball end mill from OSG is a reliable choice for any metalworking application. With a diameter of 1.50 mm and a length of 1.20 mm, it offers precision and versatility in equal measure. Made from solid carbide, this unit is built to last and is perfect for those looking for a reliable, long-lasting option. The mill is made in Japan and comes with a 2 fl design, making it ideal for a variety of metalworking tasks. Whether you’re looking to create precise cuts or simply need a reliable grinding tool, this ball end mill is the perfect choice. With its durable construction and high-quality design, it’s sure to be a valuable addition to any metalworking tool collection.

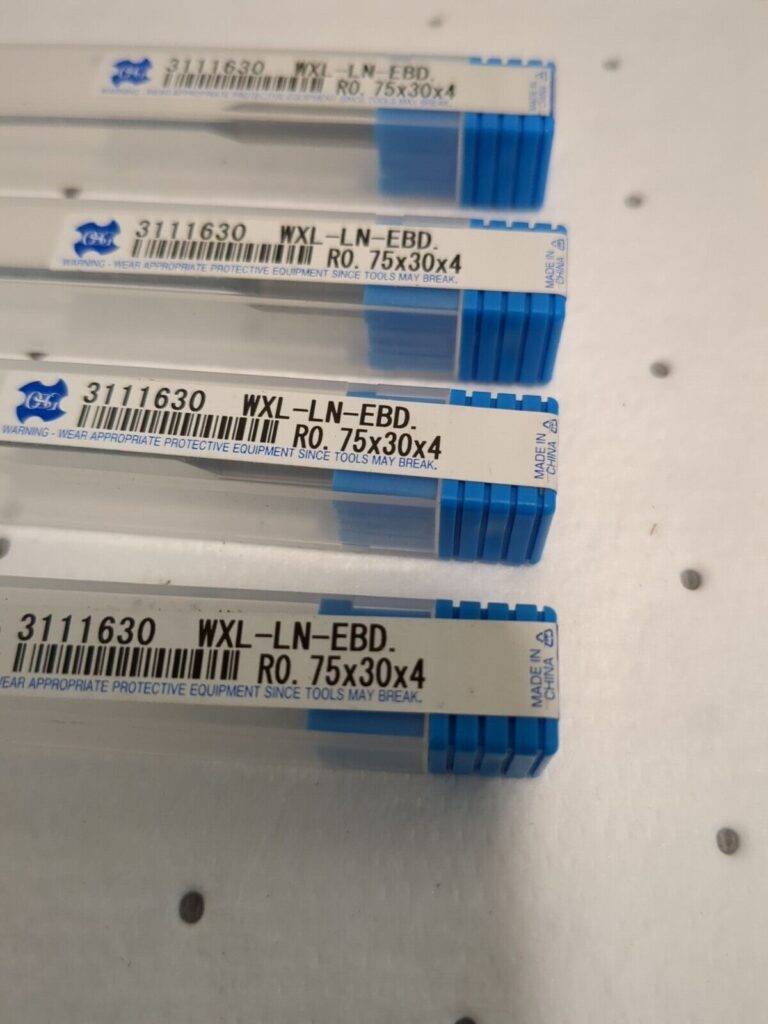

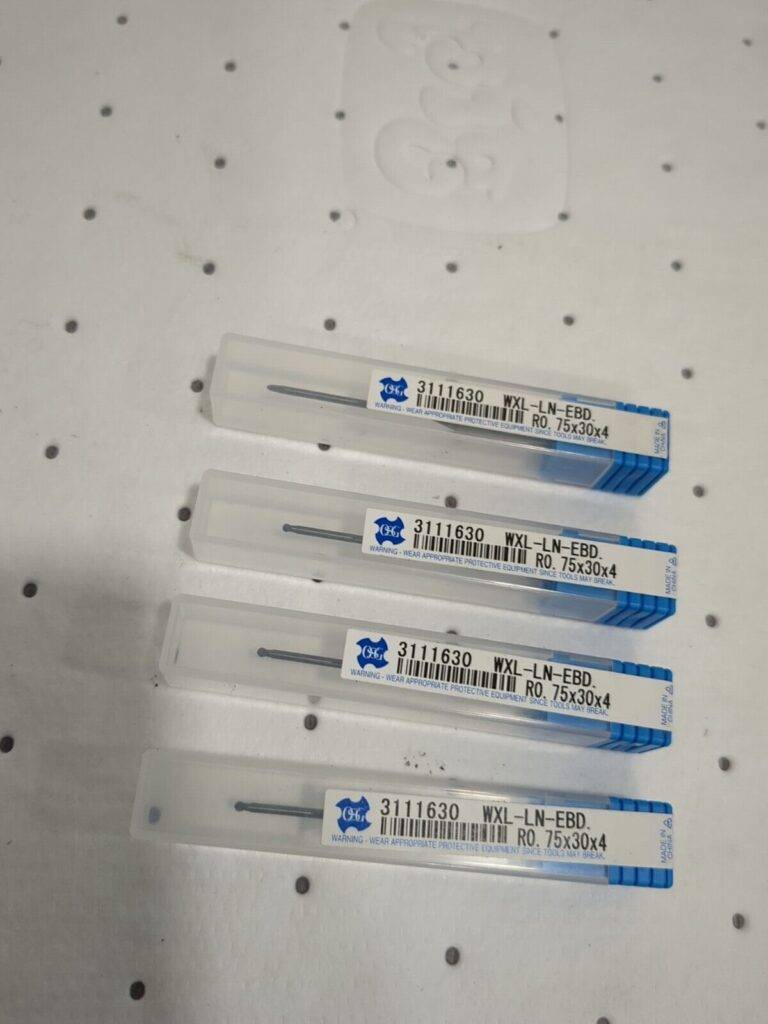

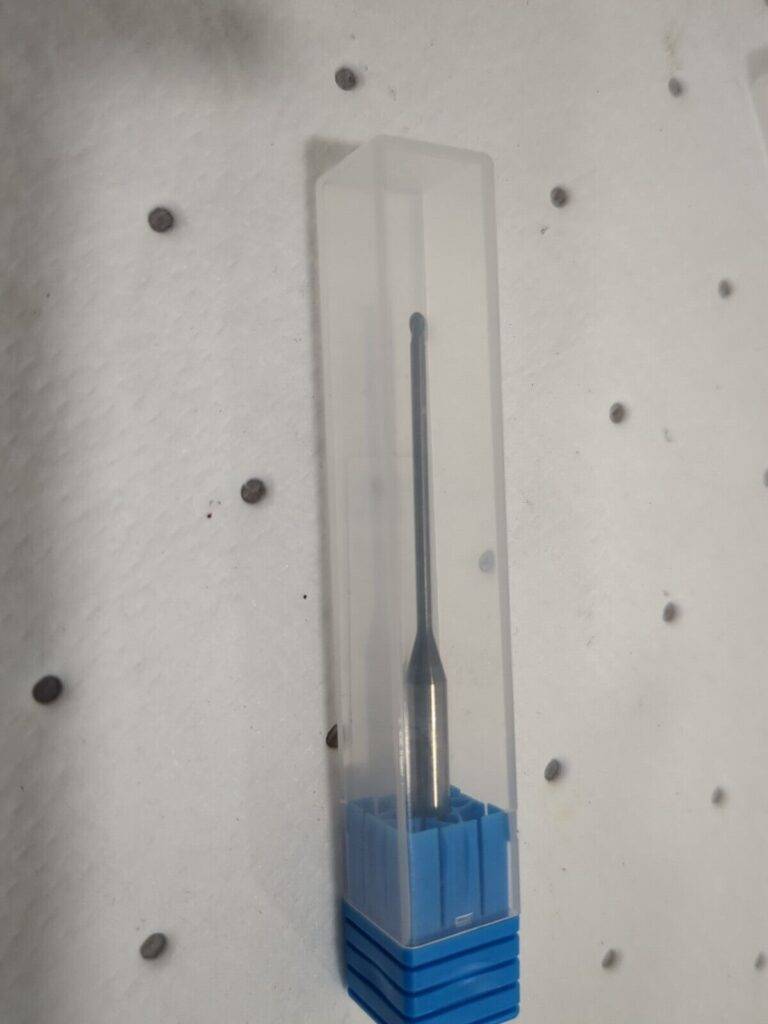

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
