Description
OSG 3pk Square End Mill: 1/4″ Dia, 1/2″ LOC, 2 Fl cobalt 5200300
MSRP: $70
- Mill Diameter (Decimal Inch) 0.2500
- Mill Diameter (Inch) 1/4
- Number Of Flutes 2
- End Mill Material Cobalt
- Length of Cut (Decimal Inch) 0.5000
- Length of Cut (Inch) 1/2
- Shank Diameter (Inch) 3/8
- Shank Diameter (Decimal Inch) 0.3750
- Overall Length (Decimal Inch) 2.3125
- Overall Length (Inch) 2-5/16
- Single Or Double End Single
- Coating/Finish Family Bright/Uncoated
- Centercutting Yes
- Cutting Direction Right Hand
- Flute Direction Right Hand
- Extended Reach No
- Coolant Through No
- Helix Angle 30
- Primary Workpiece Material High-Temp Alloy; Stainless Steel; Cast Iron; Steel
- Primary Workpiece Material Code P; S; K; M
- Coating/Finish Bright/Uncoated
- Variable Helix No
- Variable Index No
- Chipbreaker No
- Flute Type Spiral
- Material Grade M42
- Length Type Regular
- Length Of Cut Range (Decimal Inch) 0.5000 – 0.6000
- Series 520
- System Of Measurement Fractional Inch
- UNSPSC Code 27112803
(Description).

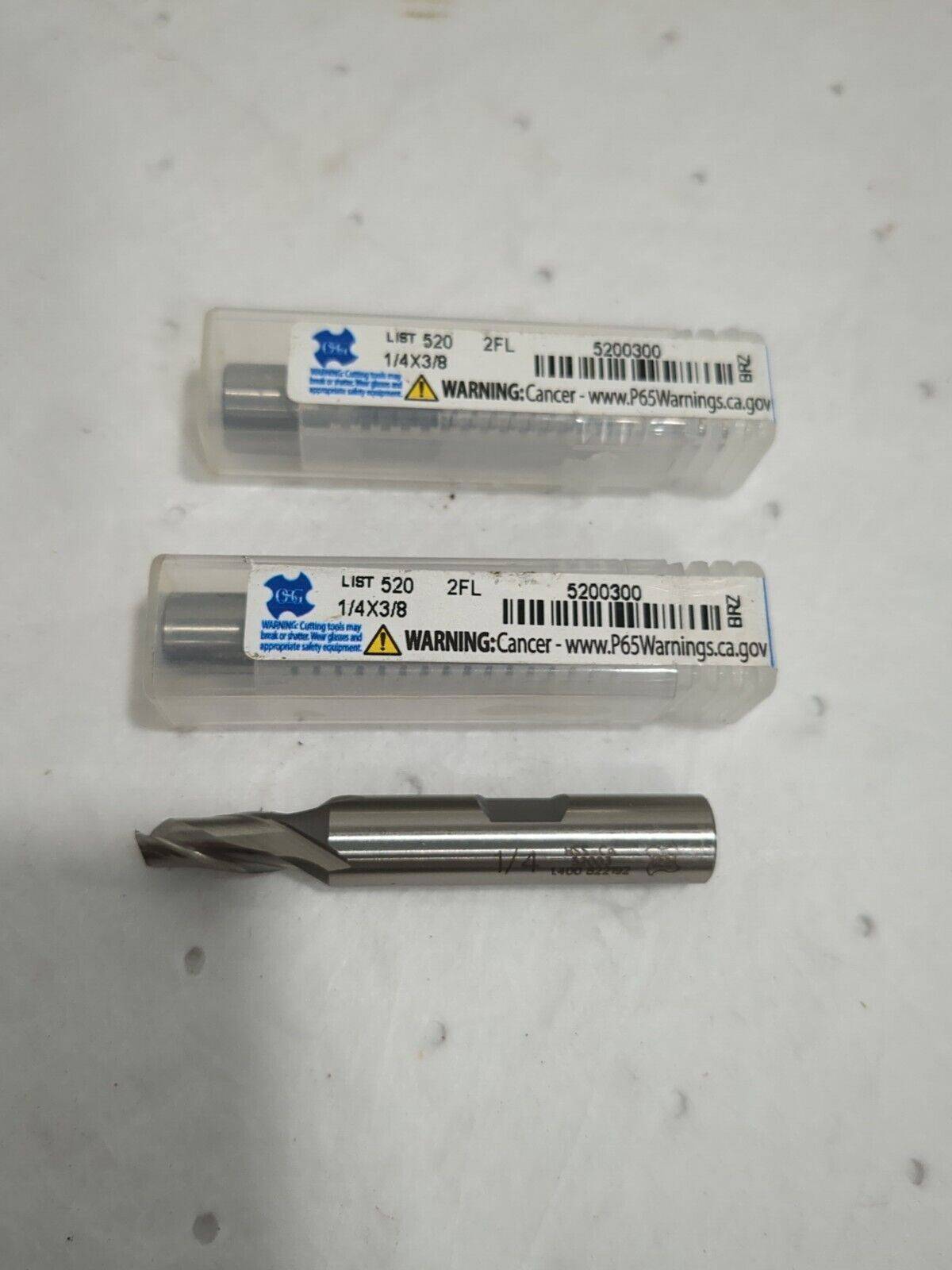

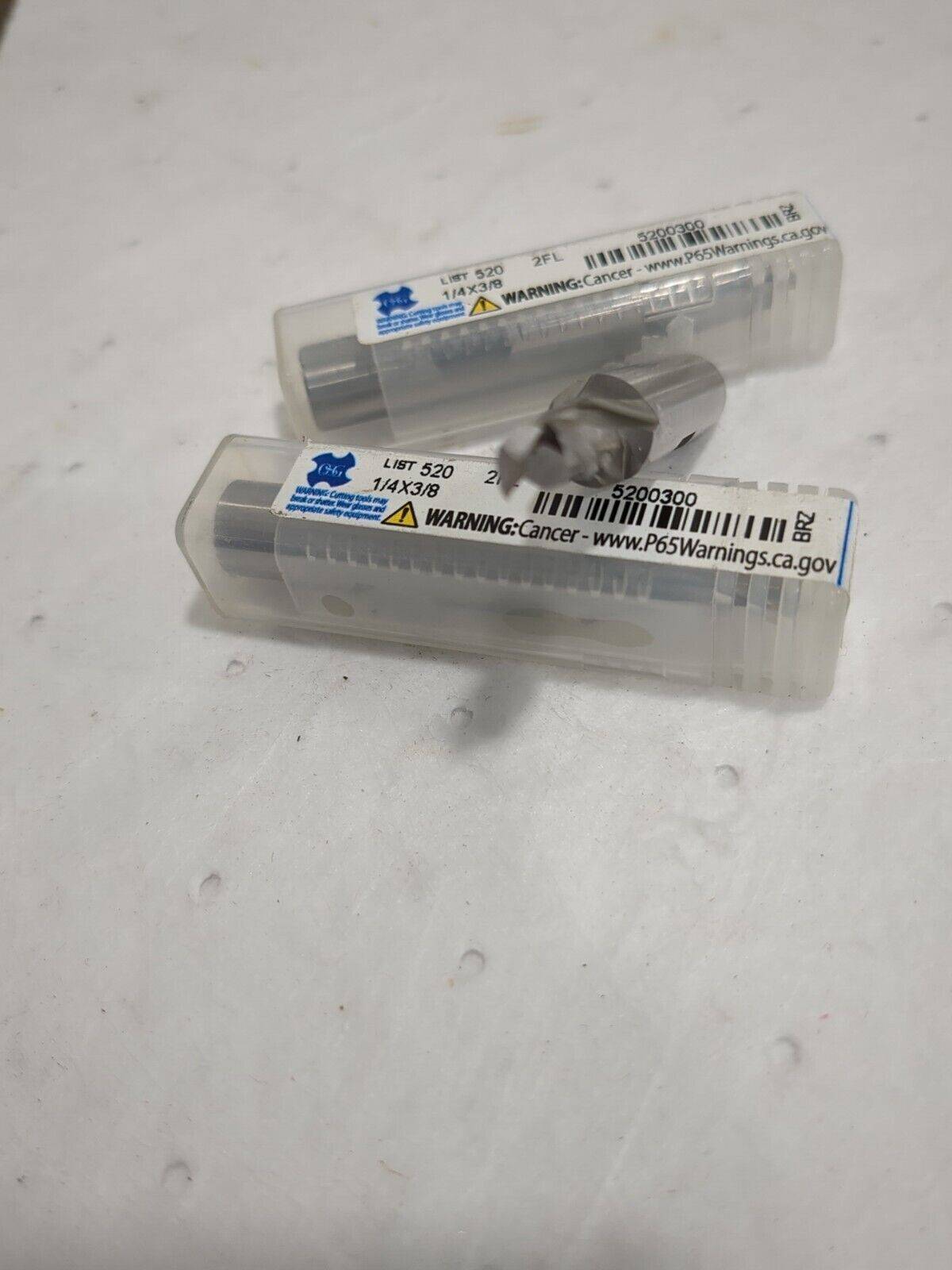

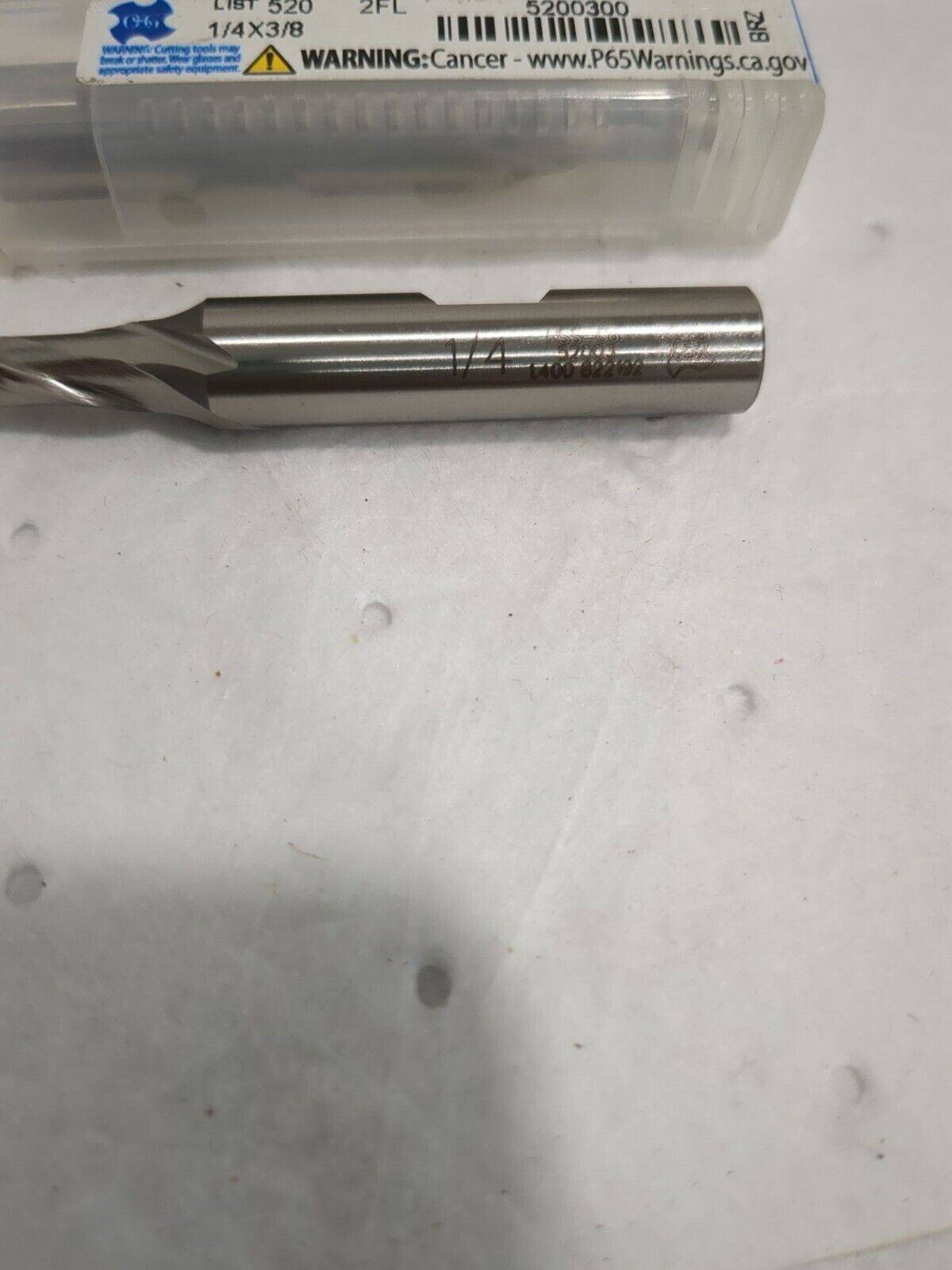

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
oct 23 24
HS7215
dex12
MPN: 5200300
LENGTH OF CUT: 1/4 in
END MILL TYPE: Square End Mill
OVERALL LENGTH: 12 in
MILL DIAMETER: 1/4 in
SHANK DIAMETER: 1/4 in
MATERIAL: Cobalt
