Description
NIAGARA CUTTER Square End Mill: 5/16″ Dia 4 fl carbide 17005438
MSRP: $70
- Mill Diameter (Inch) 5/16
- Mill Diameter (Decimal Inch) 0.3125
- Number Of Flutes 4
- End Mill Material Solid Carbide
- End Type Double
- Length of Cut (Inch) 3/4
- Coating/Finish TiAlN
- Overall Length (Inch) 3-1/2
- Shank Diameter (Inch) 3/8
- Centercutting Yes
- Cutting Direction Right Hand
- Variable Helix No
- Variable Index No
- Helix Angle 30
- Chipbreaker No
- Extended Reach No
- Length Of Cut Range (Decimal Inch) 0.7000 – 0.8000
- Length of Cut (Decimal Inch) 0.75
- Material Grade Micrograin
- Shank Diameter (Decimal Inch) 0.375
- Overall Length (Decimal Inch) 3.5
- Flute Direction Right Hand
- Flute Type Spiral
- Shank Diameter Tolerance -0.0001/-0.0004 in
- Length Type Regular
- Mill Diameter Tolerance +0.000/-0.002 in
- Overall Length Tolerance +0.060/-0.060 in
- Through Coolant No
- TIR Maximum (Decimal Inch) 0.0005
- Series CD430
- Primary Workpiece Material Code P; S; K; M; N
- UNSPSC Code 27112803
(Description).

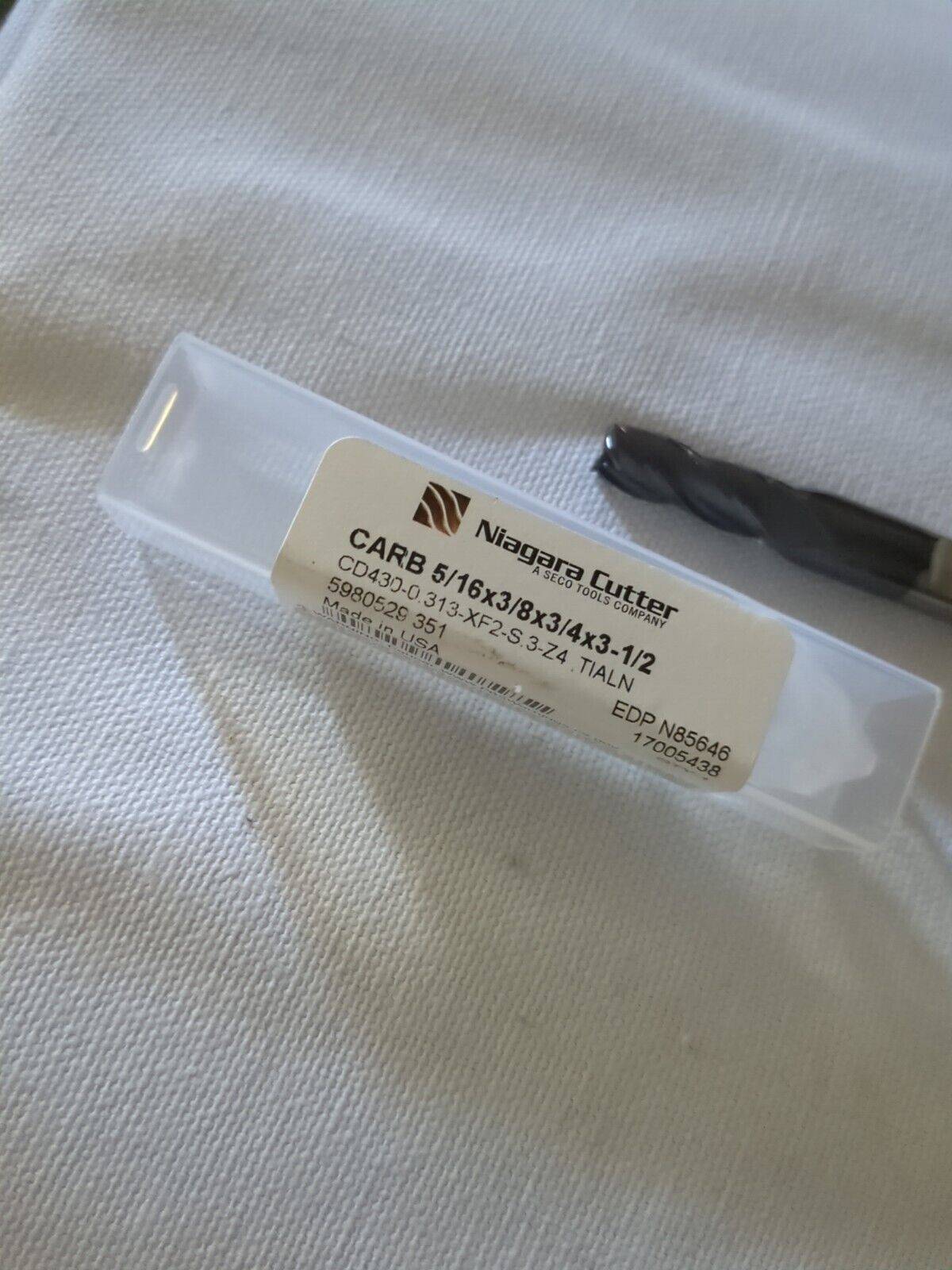

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date
Lister#
Loc
NUMBER OF FLUTES: 4
END MILL TYPE: Square End Mill
SHANK DIAMETER: 5/16 in
MPN: 17005438
