Description
Niagara Cutter
Solid Carbide Square End Mill
- Mill Diameter (mm) 12.00
- Mill Diameter (Decimal Inch) 0.4724
- Number of Flutes 4
- Length of Cut (mm) 24.00
- Length of Cut (Decimal Inch) 0.9449
- Material Solid Carbide
- Finish/Coating AlTiN
- Shank Diameter (mm) 12.00
- Single or Double End Single
- Overall Length (mm) 84.00
- Center Cutting Center Cutting
- Flute Direction Right Hand
- Cutting Direction Right Hand
- Helix Angle Variable
- Variable Helix Yes
- Variable Index Yes
- Flute Type Helical
- Length Type Regular
- Helix Style Medium
- Mill Diameter Tolerance (mm) +0.00 to -0.05
- Mill Diameter Tolerance (Decimal Inch) +0.000 to -0.002
- Material Grade Micrograin
- Chipbreaker No
- Extended Reach No
- Overall Length Tolerance (mm) +1.5 to -1.5
- Overall Length Tolerance (Decimal Inch) +0.060 to -0.060
- Shank Diameter Tolerance (mm) -0.0025 to -0.0100
- Shank Diameter Tolerance (Decimal Inch) -0.0001 to -0.0004
- Series/List STR440M.2

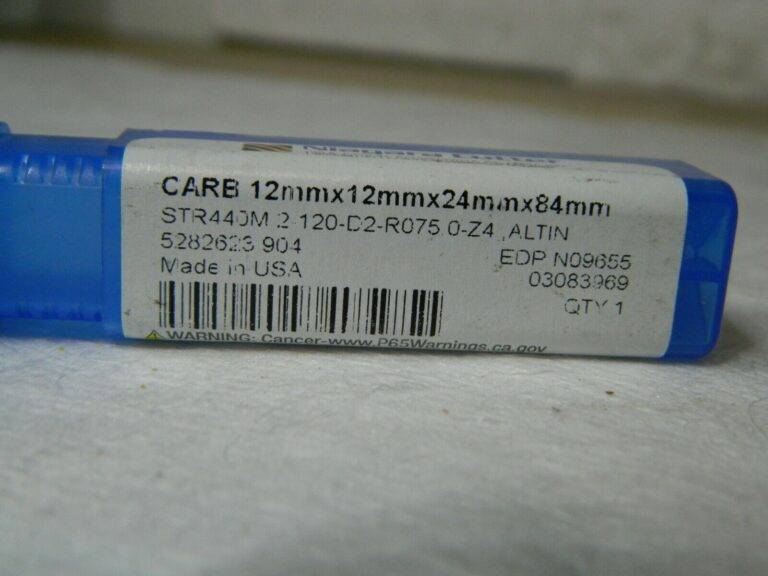

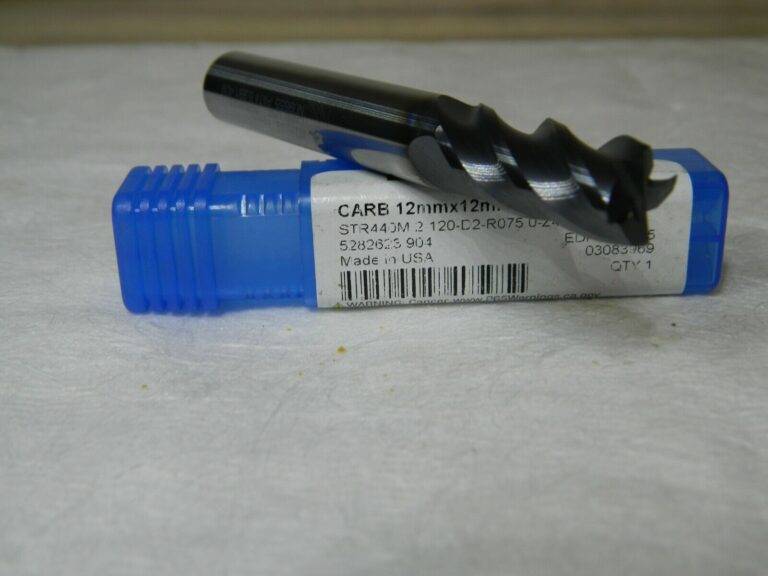

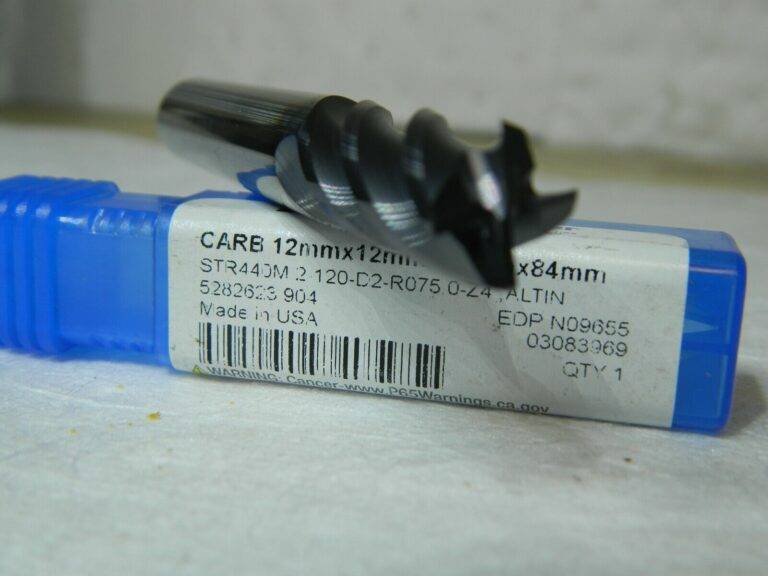

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
June 01 2021
TB 9223
Cab Jay Bin 9 Rear
COUNTRY/REGION OF MANUFACTURE: United States
NUMBER OF FLUTES: 4
MPN: Does Not Apply
BRAND: Niagara Cutter
MODEL: 03083969
MSRP: 65.00
LOCATION: TB9223CabJayBin9Rear
