Description
niagara cutter Corner Radius End Mill: 1/2″ Dia 5 Fl Solid Carbide 03257910
MSRP: $200
- Mill Diameter (Inch) 1/2
- Mill Diameter (Decimal Inch) 0.5000
- Number Of Flutes 5
- Length of Cut (Inch) 5/8
- Single Or Double End Single
- End Mill Material Solid Carbide
- Chipbreaker No
- Coating/Finish AlCrN
- Overall Length (Inch) 5
- Centercutting Yes
- Flute Direction Right Hand
- Corner Radius (Decimal Inch) 0.0150
- Variable Index No
- Variable Helix No
- Cutting Direction Right Hand
- Coolant Through No
- Pitch Normal
- Overall Length (Decimal Inch) 5.0000
- End Type Corner Radius
- Length Of Cut (Decimal Inch – 4 Decimals) 0.6250
- Length Type Extra Long
- Flute Type Spiral
- Extended Reach Yes
- Shank Type Straight-Cylindrical
- Shank Diameter (Decimal Inch) 0.5000
- Shank Diameter (Inch) 1/2
- Neck Diameter (Decimal Inch) 0.4800
- Reach Length (Decimal Inch) 3.1250
- Reach Length (Inch) 3-1/8
- Corner Radius Tolerance +0.00100 to -0.00100 in
- Mill Diameter Tolerance +0.000000/-0.002000 in
- Shank Diameter Tolerance -0.0001 – -0.0004 in
- Overall Length Tolerance +0.0600/-0.0600 in
- UNSPSC Code 27112803
- Material Grade Fine Grain
- Series STRN540
- TIR Maximum (Decimal Inch) 0.0005
- Coating Classification PVD
- For Use With. Toolholders
- Helix Style High
- Country of Origin UNITED STATES
(Description).

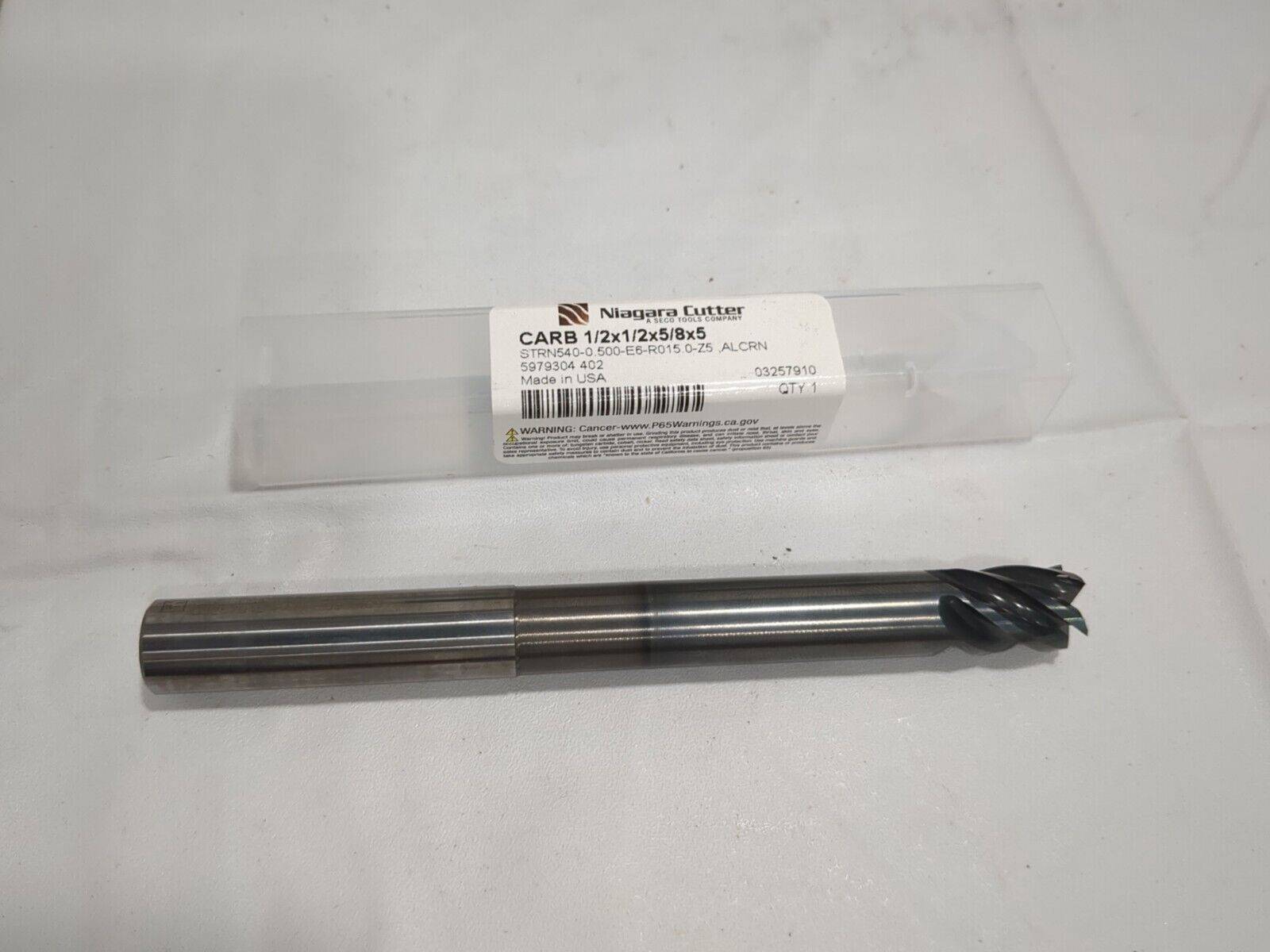

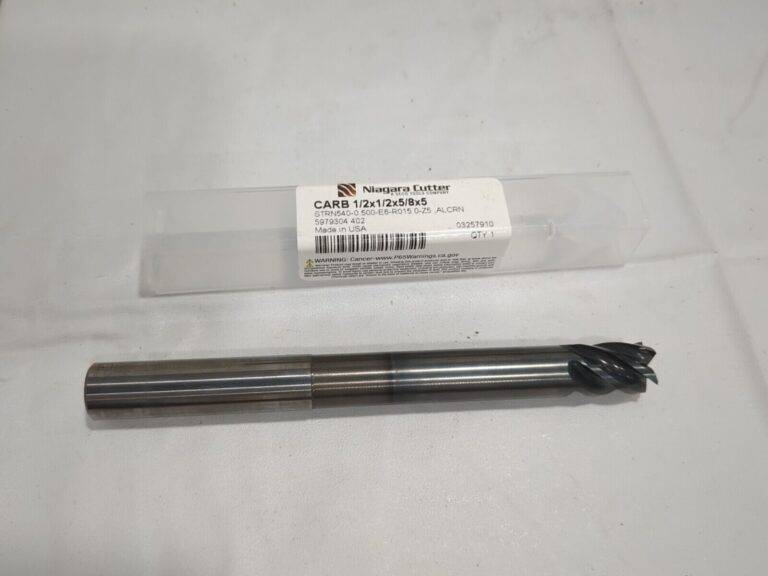

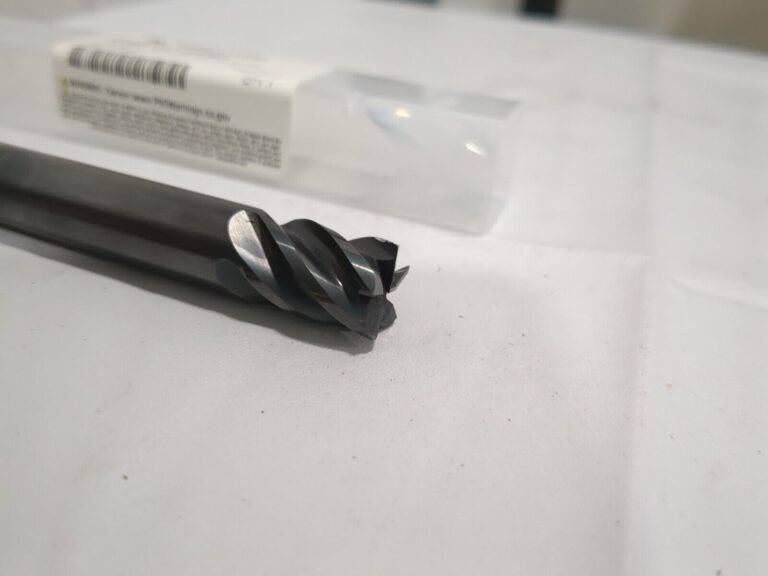

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
dec 03 24
HS 7876
wind 5
NUMBER OF FLUTES: See description
END MILL TYPE: Corner Radius End Mill
OVERALL LENGTH: See description
MATERIAL: Solid Carbide
MPN: 03257910
SHANK DIAMETER: 1/2 in
MILL DIAMETER: See description
CALIFORNIA PROP 65 WARNING: See description
BRAND: niagra cutter
END TYPE: See description
UNIT TYPE: Unit
COUNTRY/REGION OF MANUFACTURE: Unknown
UNIT QUANTITY: n/a
LENGTH OF CUT: See description
