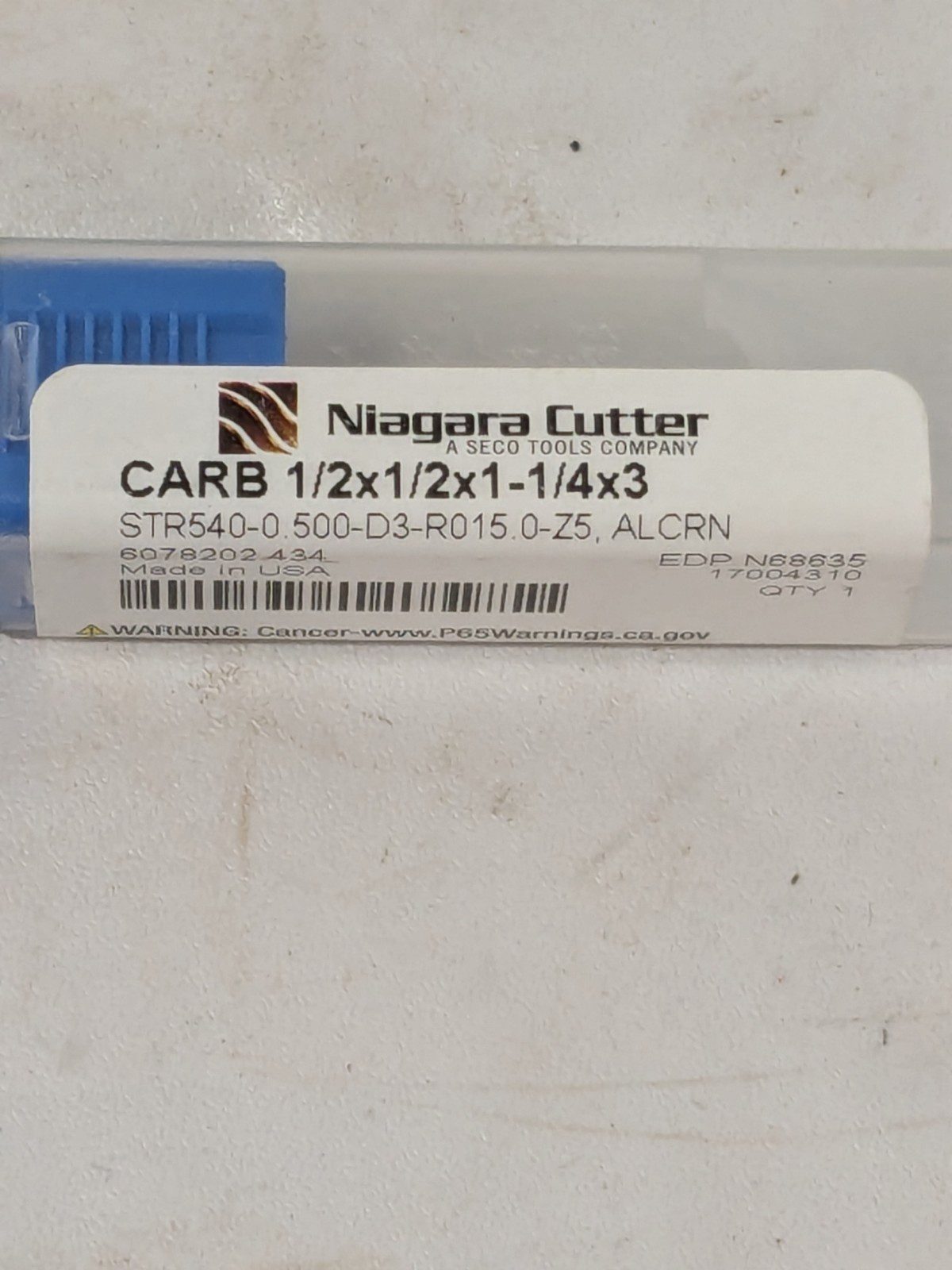

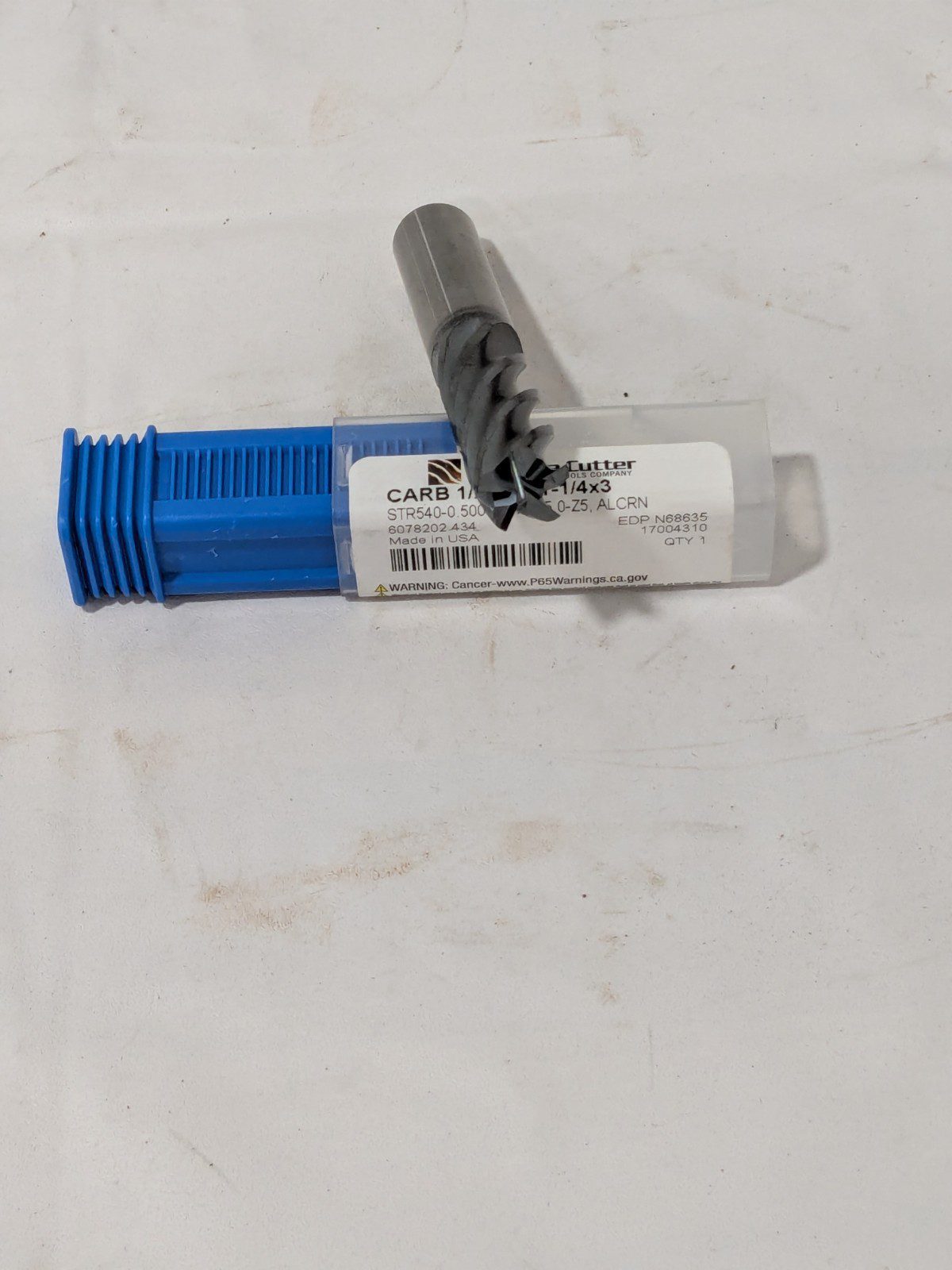

Niagara Corner Radius End Mill: 1/2″ Dia, 1-1/4″ Loc, 5 Fl N68635

Niagara Cutter
Corner Radius End Mill

MSRP: $80.00

• Mill Diameter (Inch) 1/2
• Mill Diameter (Decimal Inch) 0.5000
• Number Of Flutes 5
• Length of Cut (Inch) 1-1/4
• Single Or Double End Single
• End Mill Material Solid Carbide
• Chipbreaker No
• Coating/Finish AlCrN
• Overall Length (Inch) 3
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0150
• Variable Index No
• Helix Angle 40
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 3.0000
• End Type Corner Radius
• Length Of Cut (Decimal Inch – 4 Decimals) 1.2500
• Length Type Standard
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (Decimal Inch) 0.5000
• Shank Diameter (Inch) 1/2
• Corner Radius Tolerance +0.00100 to -0.00100 in
• Mill Diameter Tolerance -0.0020/0.0000 in
• Shank Diameter Tolerance -0.0001/-0.0004 in
• Overall Length Tolerance -0.0600/0.0600 in
• Primary Workpiece Material Hard Material; Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; H; M
• UNSPSC Code 27112803
• Series STR540
• TIR Maximum (Decimal Inch) 0.0005
• Material Application Hard Material; Stainless Steel; Superalloys & Titanium; Steel
• Coating Classification PVD
• For Use With. Toolholders
• Helix Style High
• Country of Origin UNITED STATES

This item appears to be new and in good condition. SOLD AS IS.

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
