Description
Niagara Cutter
Ball End Mill
MSRP: $40.00
- Mill Diameter (Inch) 1/4 in
- Mill Diameter (Decimal Inch) 0.25
- Number Of Flutes 2
- End Mill Material Solid Carbide
- Length of Cut (Inch) 3/4 in
- Coating/Finish Bright/Uncoated
- Overall Length (Inch) 2-1/2
- Shank Diameter (Inch) 1/4 in
- Extended Reach No
- Variable Helix No
- Variable Index No
- Helix Angle 45
- Overall Length (Decimal Inch) 2.5
- Chipbreaker No
- Undercutting No
- Length Of Cut Range (Decimal Inch) 0.7000 to 1.0000
- Length Type Standard
- Helix Style High
- Material Removal Type Roughing & Finishing
- Shank Diameter (Decimal Inch) 0.2500
- Nose Radius (Decimal Inch) 0.1250
- Neck Length (Decimal Inch) 0.0000
- Reach Length (Decimal Inch) 0.7500
- Mill Diameter Tolerance +0.0000/-0.0020 in
- Shank Diameter Tolerance -0.0001/-0.0004 in
- Overall Length Tolerance +0.0600/-0.0600 in
- Maximum Helix Angle 45
- Minimum Helix Angle 45 °
- Primary Workpiece Material Non-Ferrous Metal
- Primary Workpiece Material Code N
- Flute Direction Right Hand
- Cutting Direction Right Hand
- Series AB245
- Flute Type Helical
- TIR Maximum (Decimal Inch) 0.0005
- UNSPSC Code 27112803
- Centercutting Yes
- Coating Classification Uncoated
- Single Or Double End Single
- Shank Type Straight-Cylindrical
- Pitch Coarse
- Coolant Through No
- Length Of Cut (Decimal Inch – 4 Decimals) 0.7500 in
- Manufacturers Catalog Number AB245-0.250-D3-B.0-Z2
- System Of Measurement Fractional Inch
This item appears to be new and in good condition. SOLD AS IS.

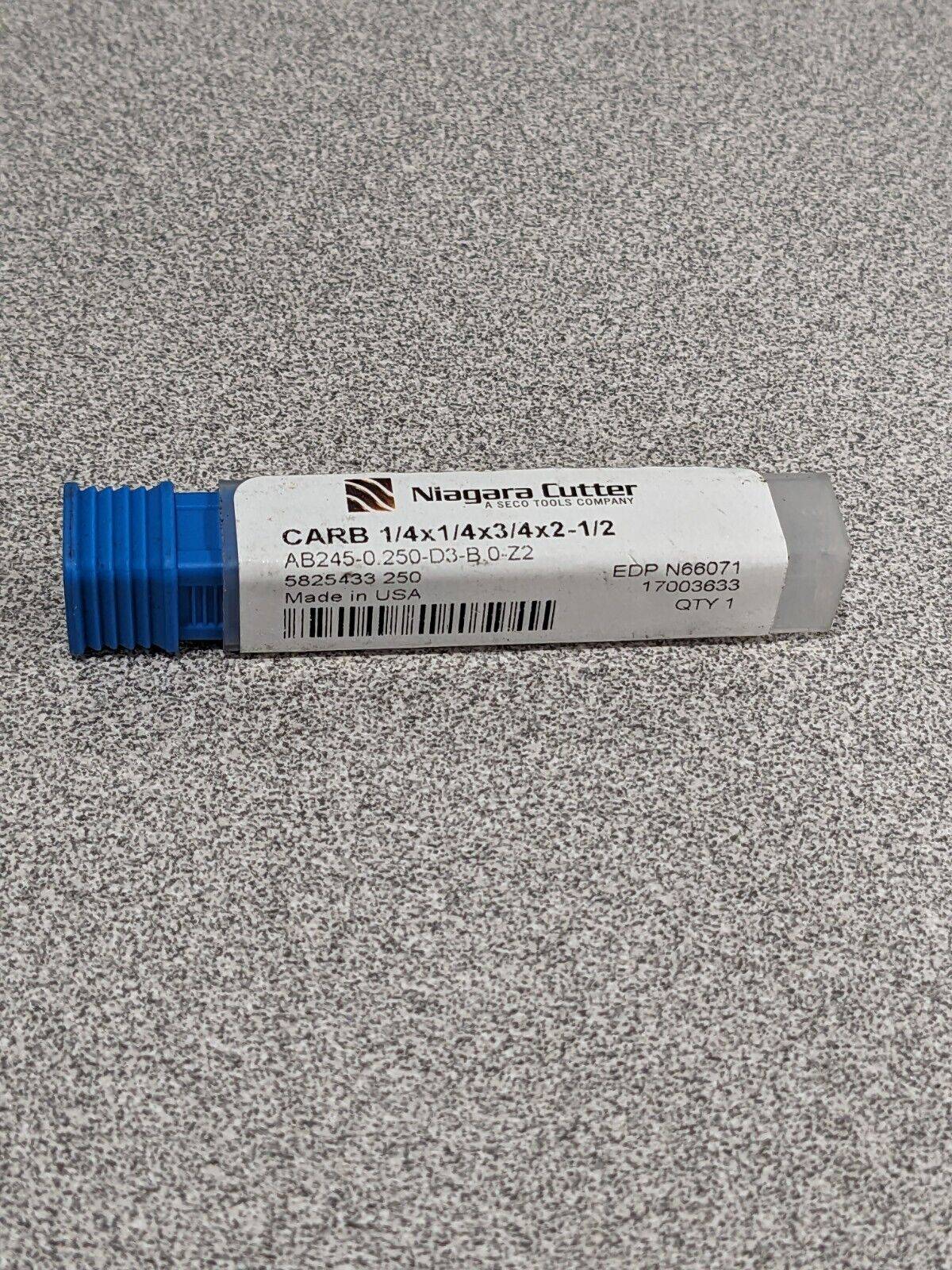

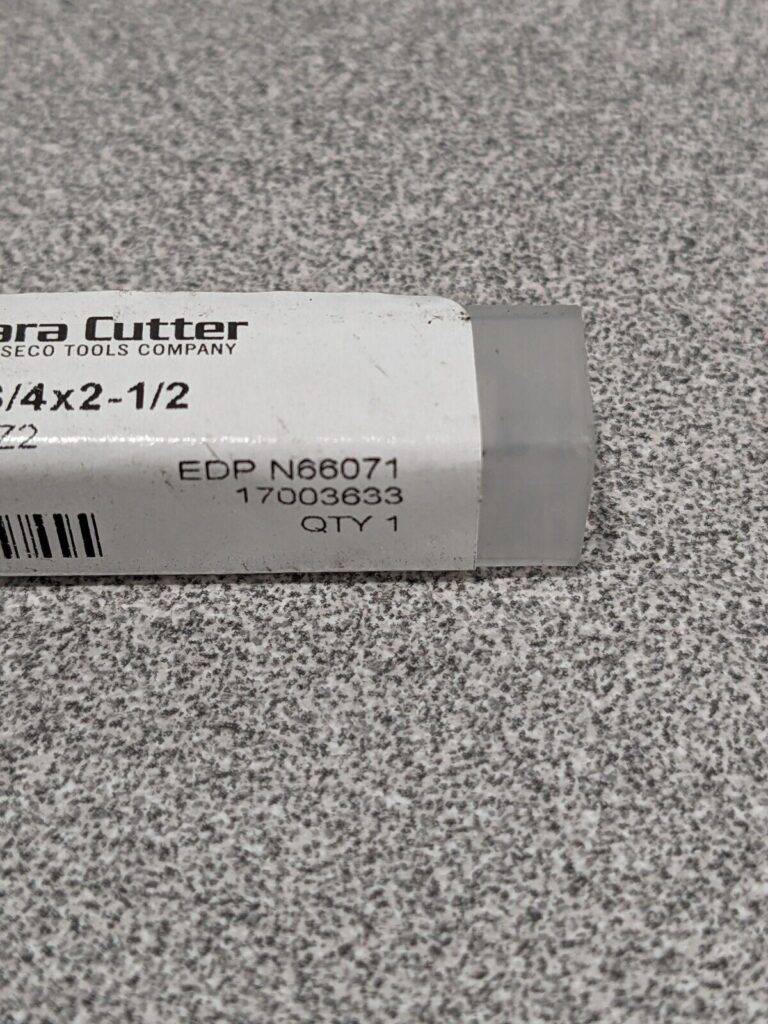

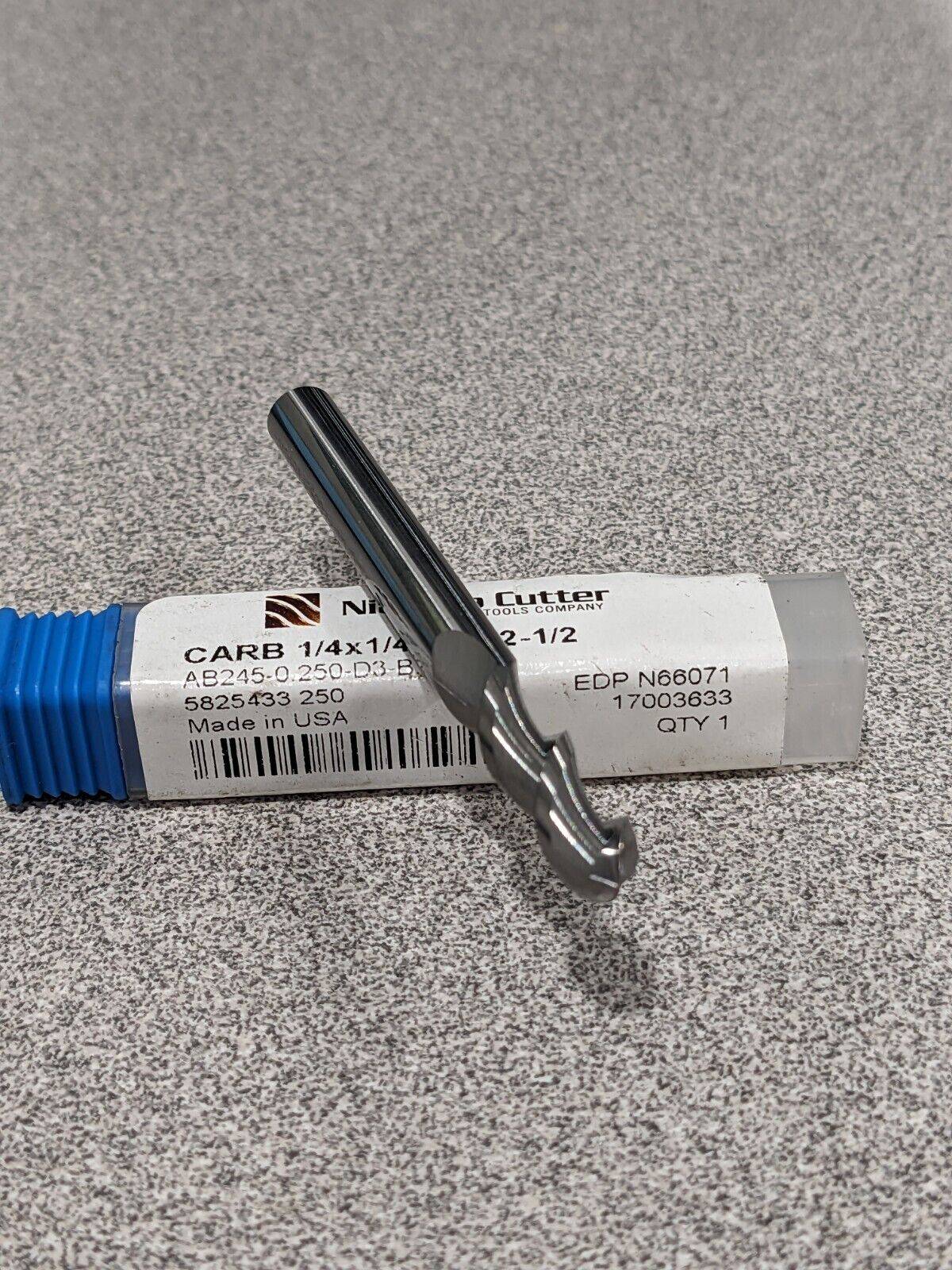

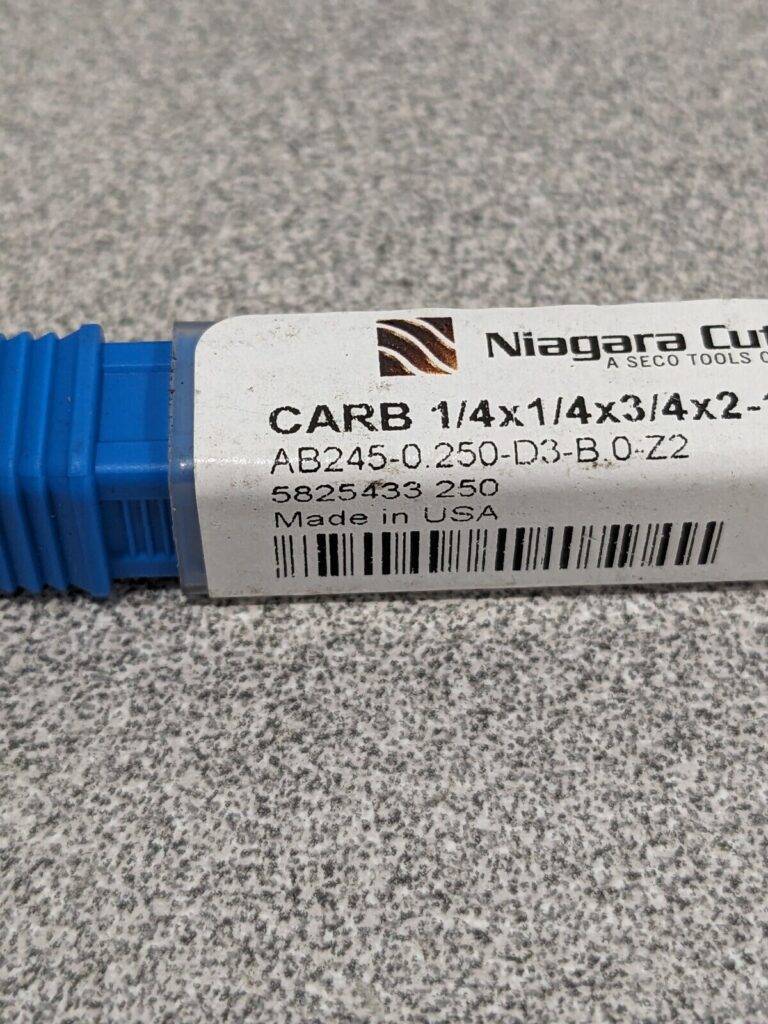

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
March 05 2024
TB 15949
BW 2 Bin 23
NUMBER OF FLUTES: 2
LOCATION: TB15949BW2Bin23
MPN: Does Not Apply
MSRP: $40.00
END MILL TYPE: Ball End Mill
COUNTRY/REGION OF MANUFACTURE: United States
MATERIAL: Solid Carbide
MODEL: N66071
BRAND: Niagara Cutter
