Description
Morse Raider
MSRP: $500
Model: 325Q140R15
Description:
Product Series Raider
Ratio 15:1
Nominal Output RPM @1750 116.6
Center Distance 3.25
Max Input HP @ 1750 RPM 4.71
Input Type C-Face Quilled Input
Input Bore (C-Face) 0.875
Shaft Output (R) Right Hand Output
Gearbox Output Shaft Diameter (in) 1.375
Construction Cast Iron
Mechanical Output Torque Rating @ 1750 Input 2273
Max OHL (Output Shaft) 2401
Thermal Input HP Rating @ 1750 Input 3.35
Thermal Output Torque Rating @ 1750 Input 1615
Motor Frame Size 143/145TC
Data Sheet View Data Sheet
Estimated Weight 87.00

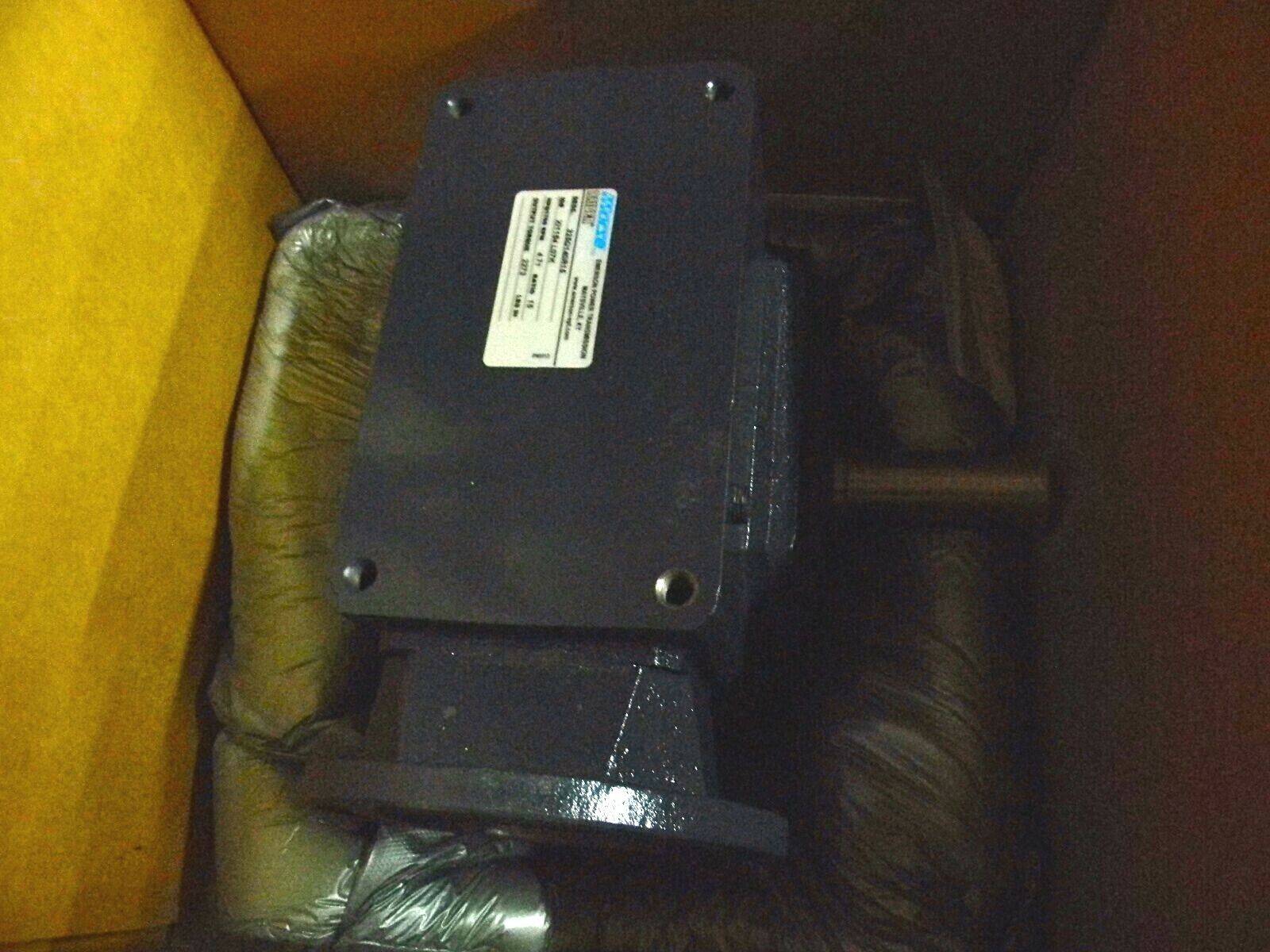

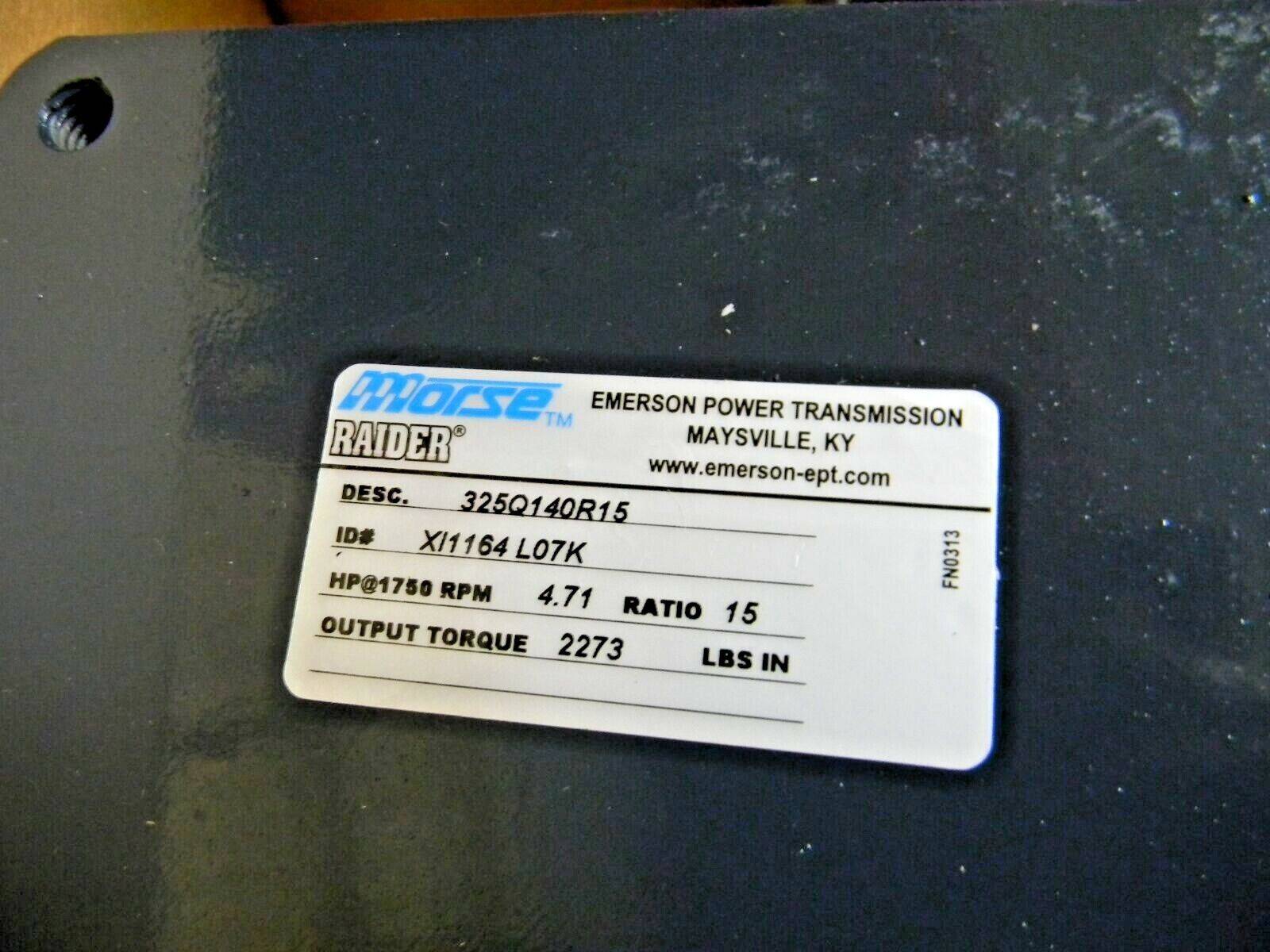

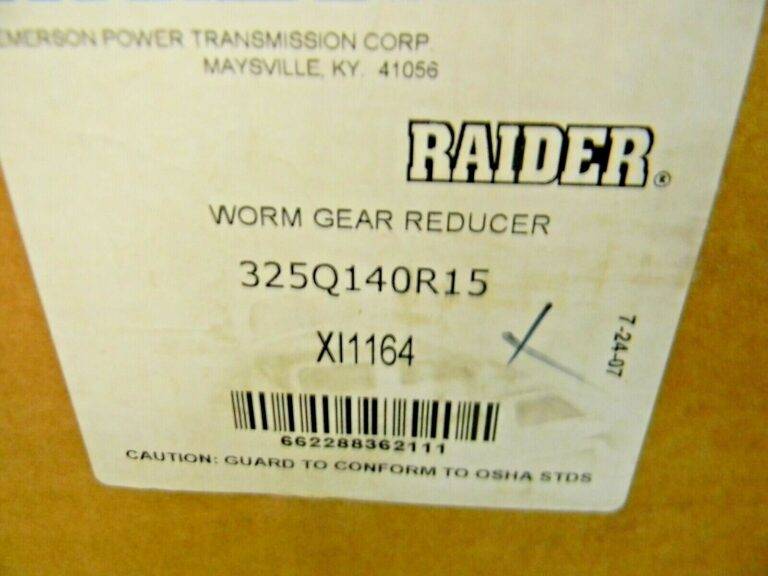

*OPEN BOX FOR PICTURES ONLY
This listing is for One Worm Gear Reducer that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Vivian Dec 04 2019
VM6909
Pallet 59 F
NOMINAL RATIO: 15
LOCATION: VM6909pallet59f
MPN: 325Q140R15
MSRP: $500
COUNTRY/REGION OF MANUFACTURE: United States
BRAND: Morse Raider
