Description

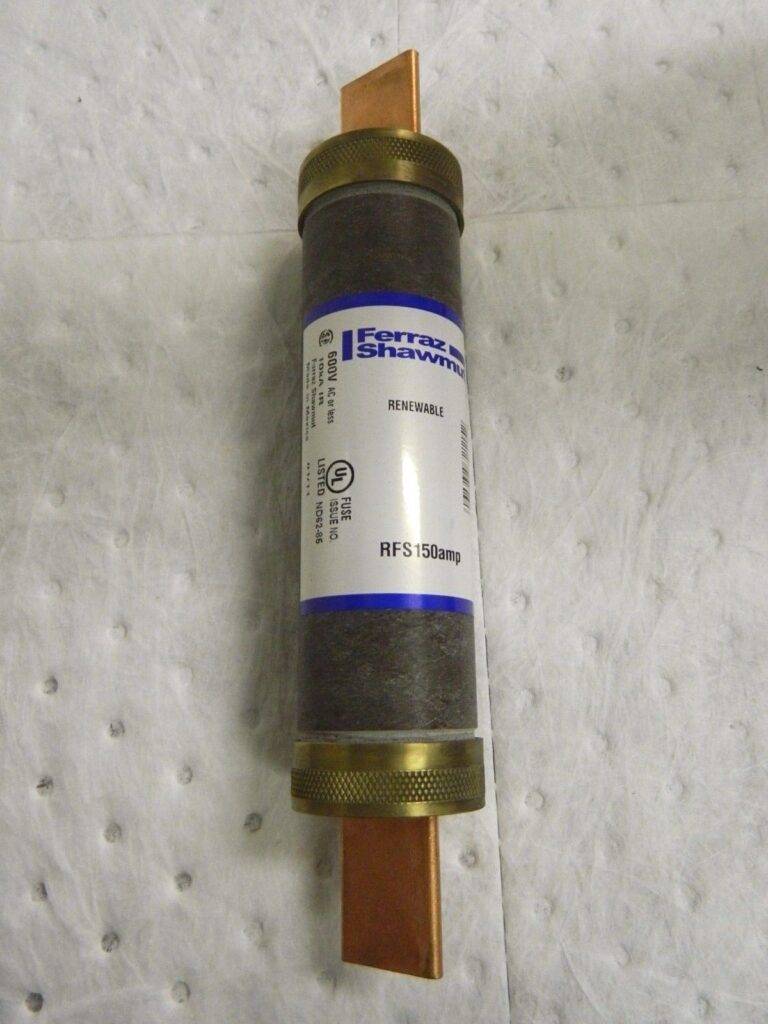

Mersen Ferraz Shawmut Fast Acting Renewable Fuse 600 VAC 150A #RFS150
Mersen Ferraz Shawmut
Model: RFS150
Specs:
Fuse Type: Renewable
Fuse Class: H
Amperage: 150
Voltage: 600 VAC
Fuse Timing: Fast-Acting
Fuse Body Type: Cylindrical
Material: FWGE
Mounting Type: Clip
Reusability: Renewable
Interrupting Rating (kA): 10 @ AC
Overall Diameter (mm): 46.00
Overall Diameter (Inch): 1-13/16
Overall Length (mm): 244
Overall Length (Inch): 9-5/8
Standards Met: CSA C22.2 No. 248.7 Certified; UL Listed 248-7 File E2137
Fuse Type: Renewable
Fuse Class: H
Amperage: 150
Voltage: 600 VAC
Fuse Timing: Fast-Acting
Fuse Body Type: Cylindrical
Material: FWGE
Mounting Type: Clip
Reusability: Renewable
Interrupting Rating (kA): 10 @ AC
Overall Diameter (mm): 46.00
Overall Diameter (Inch): 1-13/16
Overall Length (mm): 244
Overall Length (Inch): 9-5/8
Standards Met: CSA C22.2 No. 248.7 Certified; UL Listed 248-7 File E2137
Modified by Kimmy 1/02/2019
UPC: Does not apply
BRAND: Mersen Ferraz Shawmut
COUNTRY/REGION OF MANUFACTURE: Mexico
MPN: RFS150
MODEL: RFS150
MRSP: 100
LOCATION: cabtiffbinj6
CURRENT RATING: 600 A
