Description
Coil Data
120V 50/60 Hz
190 Ω
250 mA
30 VA
11.8 Watts
Contacts
10 AMP @ 3500 VAC General Purpose
15 AMP @ 2500 VAC General Purpose
Ratings
AC Inductive (P.F. 0.7 or greater)
3500 VAC @ 10 AMPS
2500 VAC @ 15 AMPS
Motor Loads
Not Recommended
Specifications
Torque
Coil Screws 7 in-lb
Terminal Screws 45 in-lb
Coil Terminals #6 Binding Head Screws
Load Terminals 2-8 AWG Compression Type
Contact Resistance .001 ohm
After Cycling Under Load
Operate Time 45 milliseconds
Release Time 60 milliseconds
Dielectric Withstand 8000 VAC RMS
Longevity Millions of Cycles
Temperature Range -35°C to 85°C
New – Open Box – Unused Overstock.

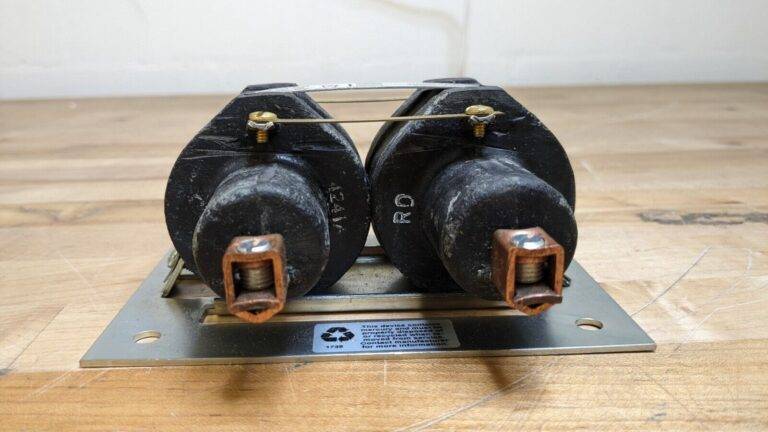

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
**PLEASE NOTE: Items weighing over 75 lbs will have an additional $15 surcharge on shipping cost, imposed by the shipping carrier**
Industry Recycles
155 Center Ct, Venice, FL 34285
BRAND: Mercury
